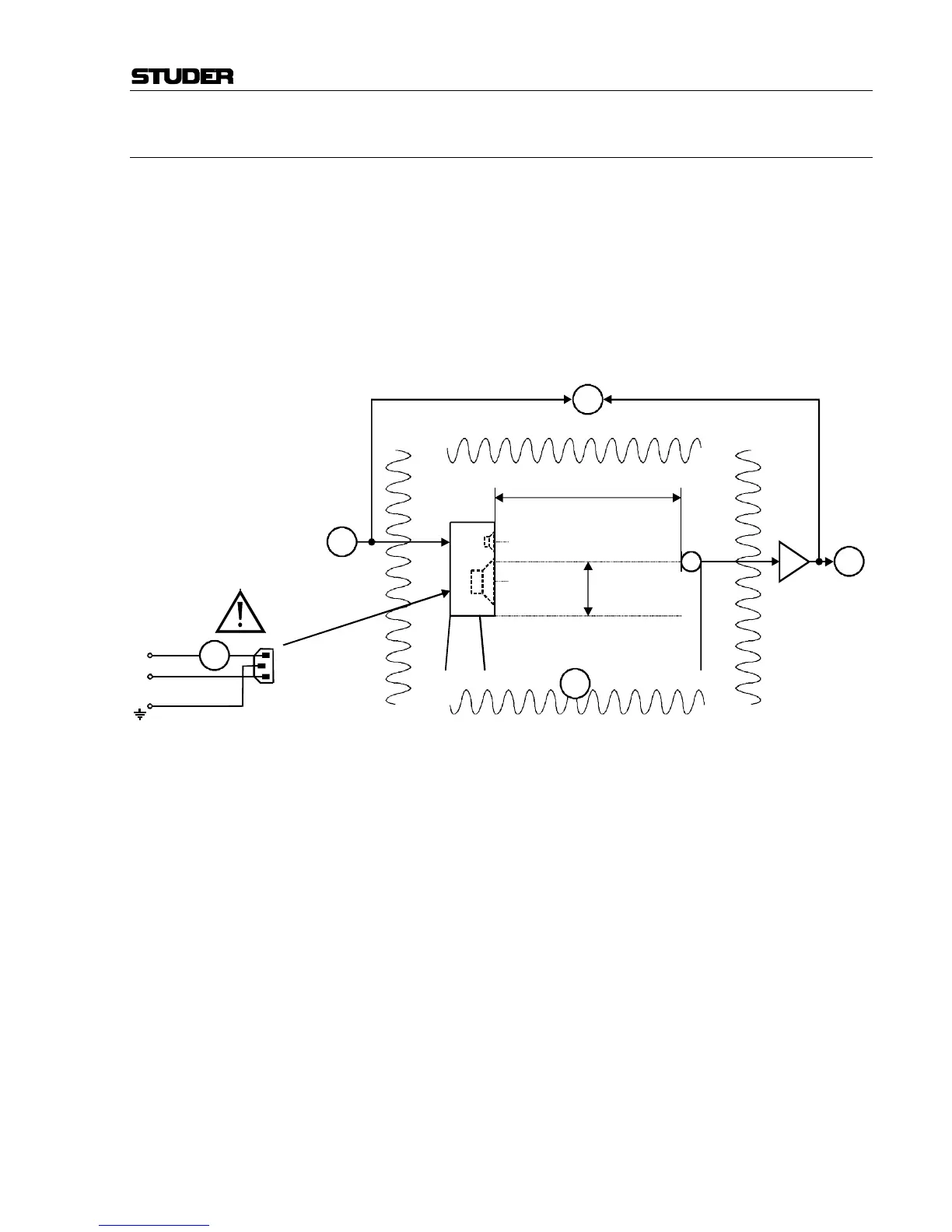

4.5.2.4 A5: Measurement Setup in the Anechoic Room

• Setup the loudspeaker;

• Setup the measurement microphone:

- Distance to the baffle 1 m,

- Equidistant from the two vertical edges,

- Equidistant from the centers of mid-range and tweeter units (i.e., h =

45 cm), and

- Perpendicular to the baffle;

• Connect your unit to the mains, set power switch to ON, check the current

consumption ( < 95 mA

for 230 V);

• Connect generator G1 with correct signal polarity.

Note: For more information on frequency response measurements, please refer

to section 4.6 .
