Studer D19 MasterSync User Manual

D19 MasterSync
E 2/4 Operation
Date printed: 13.09.00

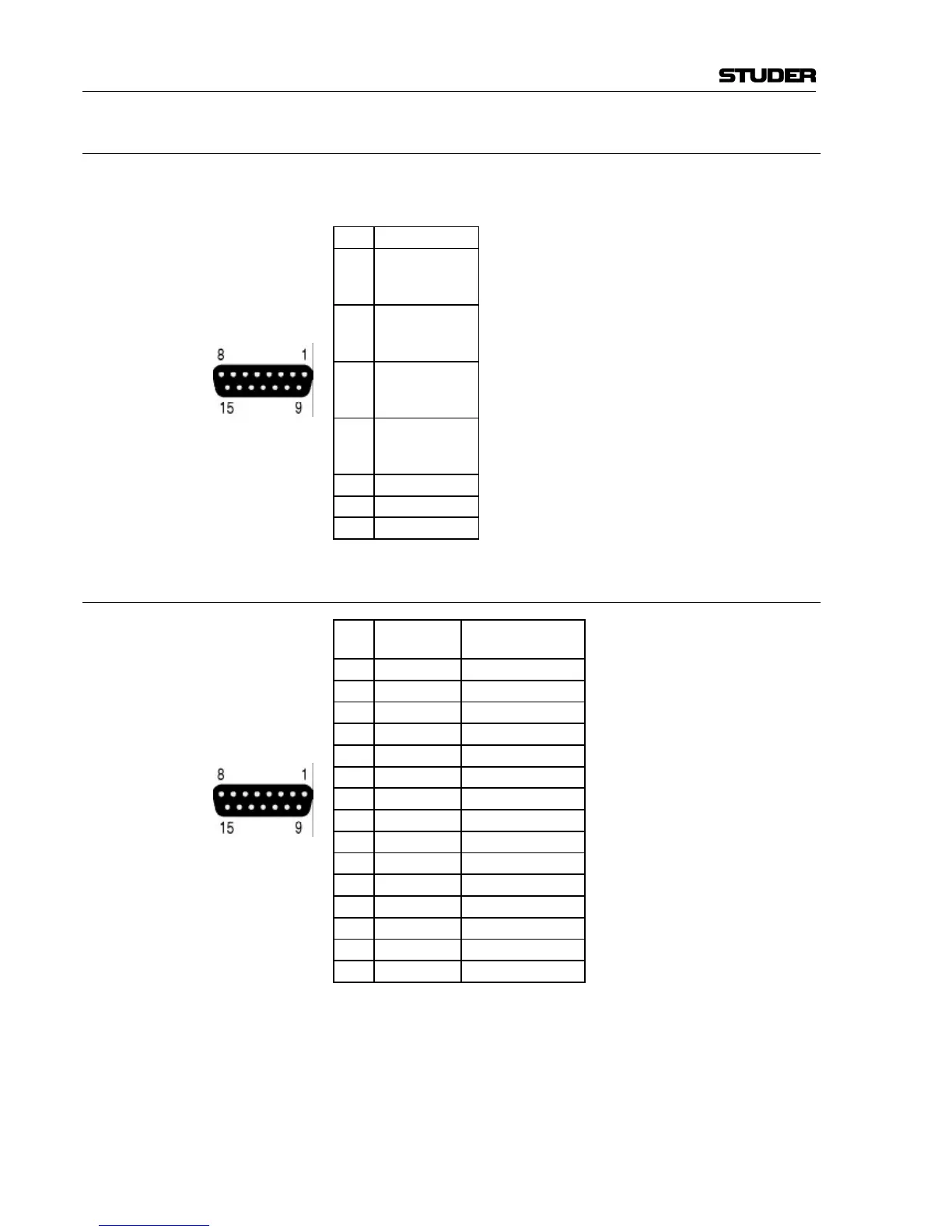

2.2.6 4 AES/EBU REDUNDANCY IN (optional) (15-pin D-type, f)
(Pin assignment is identical with the one of the standard 4AES/
EBU IN connector)
Pin Signal
1
9
2
AES 1a
AES 1b
Screen
10
11
3
Screen
AES 2a
AES 2b
15
7
14
AES 3a
AES 3b
Screen
6
5
13
Screen
AES 4a
AES 4b
4 n.c.
12 n.c.
8 n.c.
2.2.7 REDUNDANCY LINK (15-pin D-type, f)
Pin
to pin
(on 2nd unit)
Signal
1 1 GND
2 2 VCC re
3 3 n.c.
4 4 n.c.
5 5 ISYNEX
6 6 WCLRE
7 15 MAST
8 8 GND
9 9 VCCre
10 n.c. n.c.
11 11 24 V re
12 n.c.
13 13 AESRE
14 14 IFAILEX
15 7 IMAST
Matching Cable: Order no. 1.680.025.00, suited for two units placed on top of each other.
