D19 MasterSync
Applications E 4/1
Date printed: 13.09.00
4 APPLICATIONS
4.1 On-Air 2000

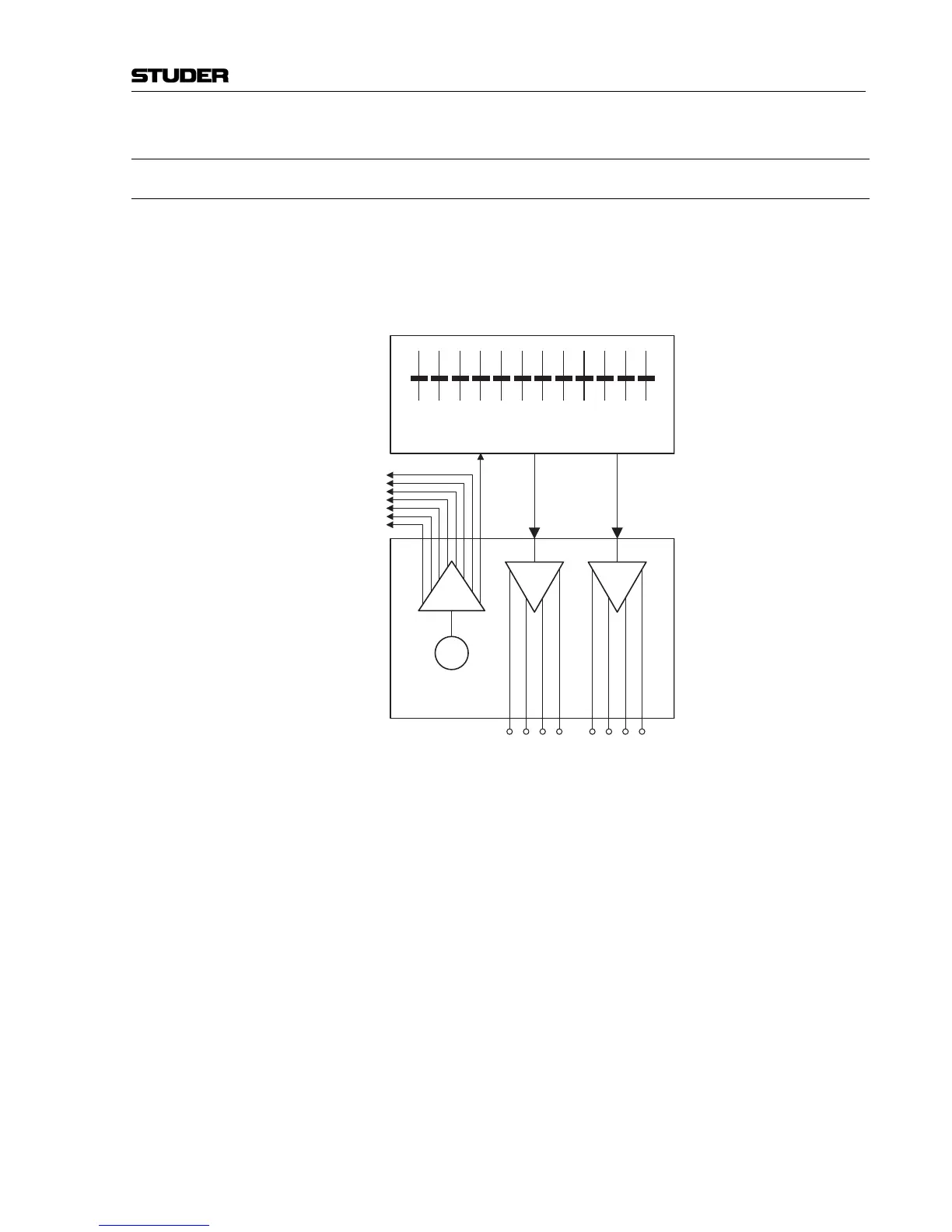

In many installations with the On-Air 2000 digital mixing console (or
other digital consoles), the need arises to generate a sync signal and
distribute it to some peripheral devices, such as recording machines or
players.
Sync in
PGM
out
REC
out
Gen
REC
distribution
On-Air 2000
D19
MasterSync
PGM
distribution
The D19 MasterSync is used in these environments and gives an addi-
tional benefit:
As the 16 outputs of a D19 MasterSync can be configured in such a
way that they can distribute different signals, it is possible to use eight
outputs for the distribution of the sync signal, and four of them each for
other signals, such as the program bus and the record bus output distri-
bution.
