Studer Innotec SA
RCC-02/-03
User manual V4.4.0 61
14.11.1 Switching mode {1202} {1311}

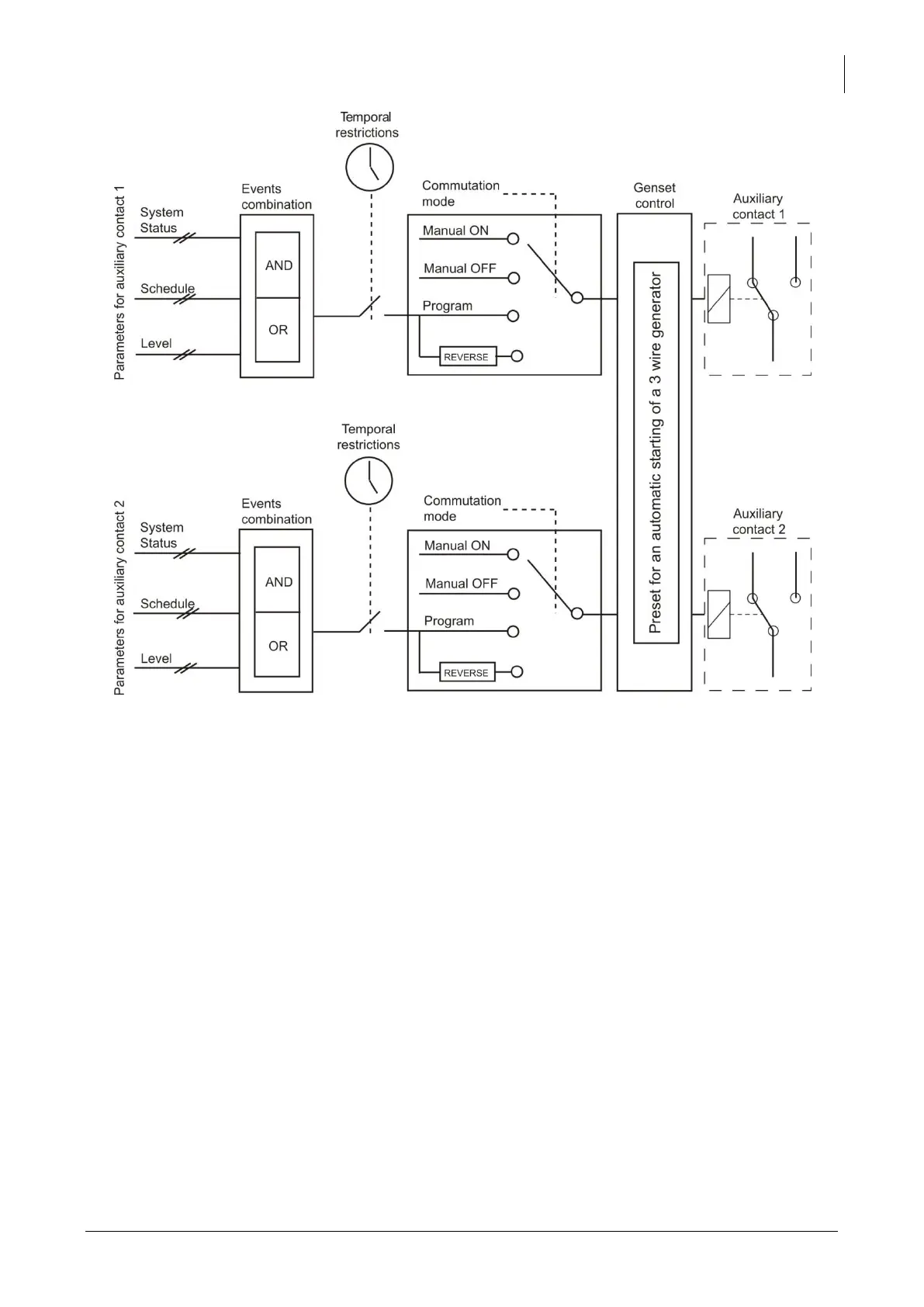

The auxiliary contacts may be controlled in 4 different ways:
Manual ON: In this mode, the contact is permanently drawn whatever the external conditions or
programming
Manual OFF: In this mode, the contact is permanently released whatever the external conditions or
programming
Automatic: In this mode, the auxiliary contact is activated according to the conditions and
restrictions of its programming.
Reversed automatic: In this mode, the conditions and restrictions define the release of the contact.
14.11.2 Combination of events mode {1497} {1498}
This configuration defines how the various events intended to activate the auxiliary contact are
combined.
Either a single event suffices to activate the contact (OR function) or it must have all the active events
in order for the contact to be activated (AND function).
14.11.3 Temporal restrictions {1203} {1312}
These configurations allow the time frame to be defined in which the contact should under no
circumstances be activated. Three distinct schedules are accessible in the form of restriction
programs (programs 1 to 3). For each program, it is possible to select the day of the week where the
restriction is activated. If the day is selected it appears on the screen and if it is not selected it is
represented on the screen by two horizontal lines.
