EN/07.2013/58/15

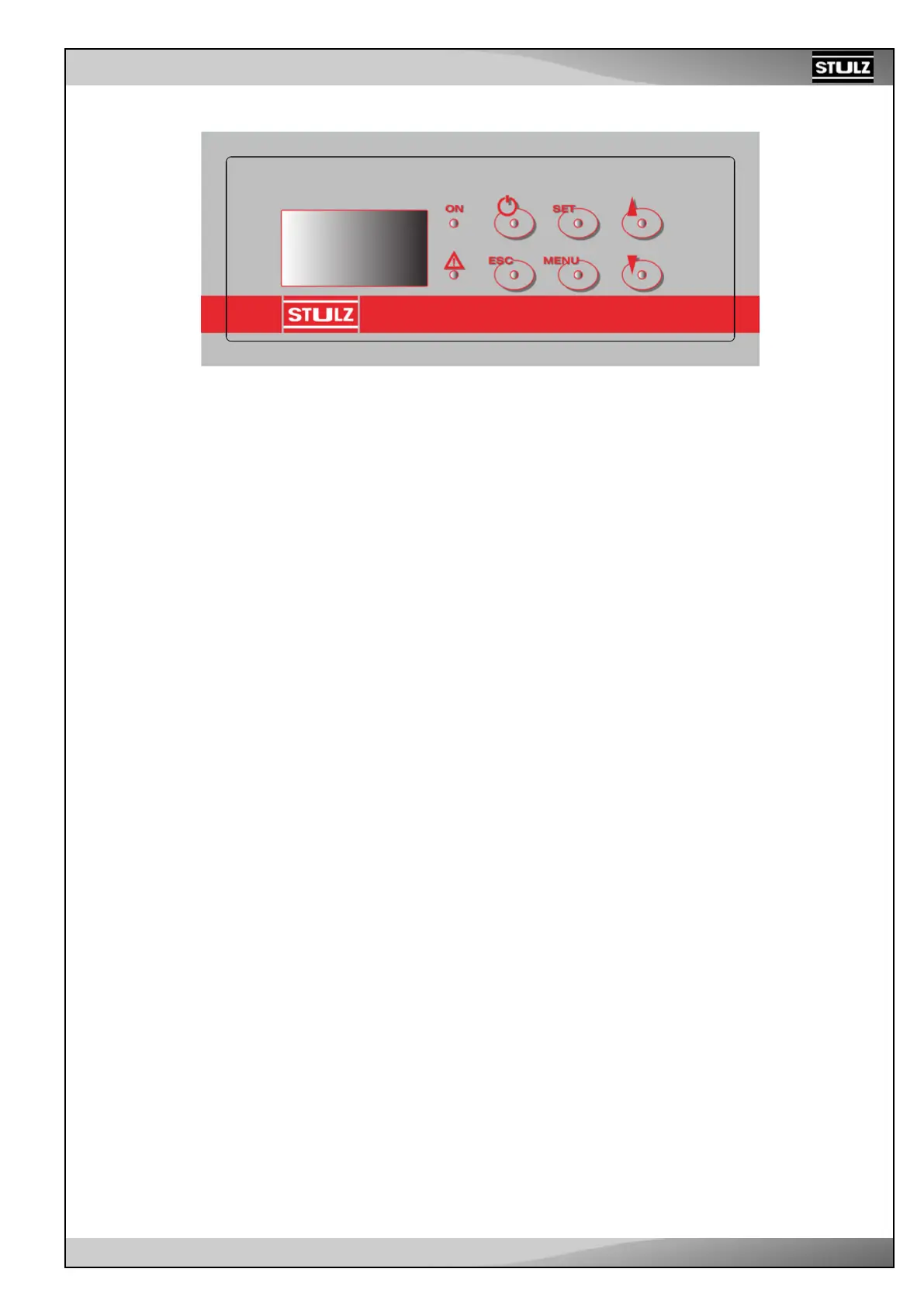

The CO3 user interface layout is shown in the following drawing:
2.5.3. WIB1000
WIB1000, or WIB1485, is a single point Ethernet interface, that is physically soldered on SPI connector.
WIB1000 is the option without the serial interface 485, while WIB1485 is the option with serial interface 485.
The parameters must be set as follows:
– M08 = 1
– M09 = PEMS
The board has the following features:
• Power supply +5V: from the main board
• It’s provided with 2 LEDs:
– 1 LED for correct power supply
– 1 LED for diagnostic
• It’s provided with three ports:
– USB 2.0 Full-speed Host-Port (12Mbits per second).
– 10/100Base-TX LAN Ethernet interface.
– Option: 1 serial 485 optocoupled connection on 3 poles, 3.81mm screw connector (only WIB1485).
