Component Access / Removal
#3758407 - Revision B - August, 2006
Freezer Drain Tube Heater (685-2, 695-2)
To access and remove the drain tube heater, the juice
can rack, upper front panel, evaporator front cover, rear
duct, lower evaporator cover assembly and ice bucket
carriage assembly will need to be removed first, then
(See Figure 7-122).
1. Extract screws at the right side of the drain pan.
2. Lower front of drain pan down and pull drain tube
heater from drain tube.
NOTE: When replacing the drain tube heater, it is nec-
essary to insert it a minimum of 3" into the drain tube.
Evaporator Defrost Heater (685-2, 695-2)
To access and remove the defrost heater, the juice can
rack, upper front panel, evaporator front cover, rear
duct, lower evaporator cover assembly and ice bucket
carriage assembly will need to be removed first, then
(See Figure 7-123).
1. disconnect heater electrical leads.
2. Remove heater clips which secure heater to evapo-
rator by pulling tab of clip down and out.
3. Gently pull defrost heater from fins of evaporator.

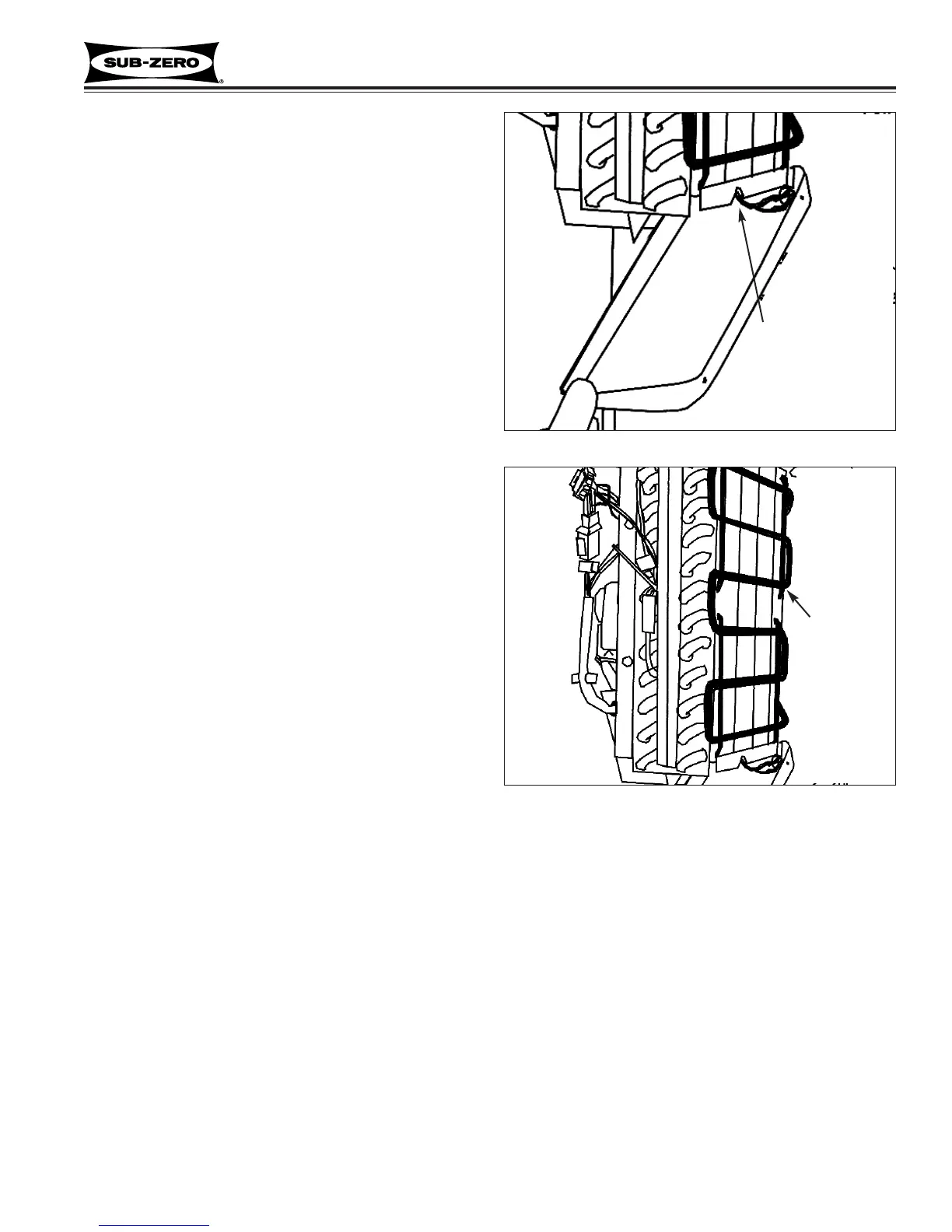

Figure 7-123. Defrost Heater
Defrost
Heater
Figure 7-122. Drain Tube Heater
Drain Tube Heater
To Next Page
