Installation Information
Built-In
Built-In
(600-
(600-
2
2
)
)
Series
Series
2-4
#3758407 - Revision B - August, 2006

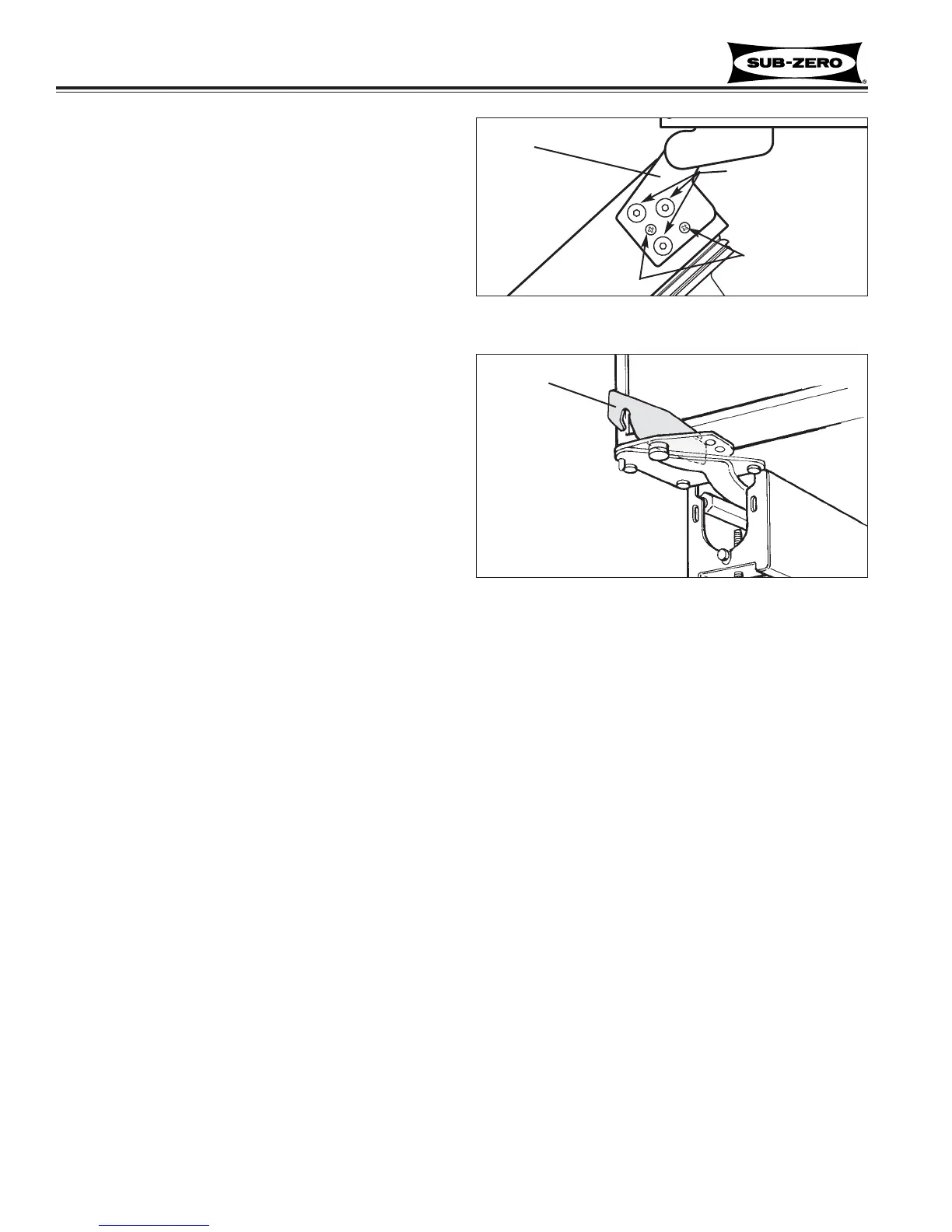

Figure 2-5. Top Door Hinge & Screws
Top door
hinge
Loosen & re-snug
screws to allow door
adjustment
Discard shipping
screws
Figure 2-6. Bottom Hinge Shim Installation
Bottom
Hinge
Shim
Door Adjustment (All Models)
NOTE: Unit must be level before adjusting doors.
If unit is properly installed, blocked and leveled, it may
still be necessary to adjust door(s) left to right and/or in
and out. Adjustments are performed at top and/or bot-
tom door hinge(s).
1. Working on only one hinge at a time (top or bottom),
remove and discard two small Phillips head shipping
screws from door hinge before attempting adjust-
ments (See Figure 2-5).
2. Loosen and re-snug door hinge mounting screws,
allowing door adjustment (See Figure 2-5).
3. After adjusting door, tighten door hinge mounting
screws and check for proper door seal.
NOTE: If one door on a side-by-side unit sits higher
than the other, bottom hinge shim (part #0183100) is
available. To install shim, remove shipping screws from
bottom door hinge, then loosen hinge mounting screws.
Insert shim(s) between bottom door hinge and bottom
door trim. Adjust door accordingly and retighten door
hinge screws (See Figure 2-6).
Also see Special Side-by-Side Door Adjustment instruc-
tions on following page.
