7-49
Built-In
Built-In
(600-
(600-
2
2
)
)
Series
Series
Component Access / Removal
#3758407 - Revision B - August, 2006

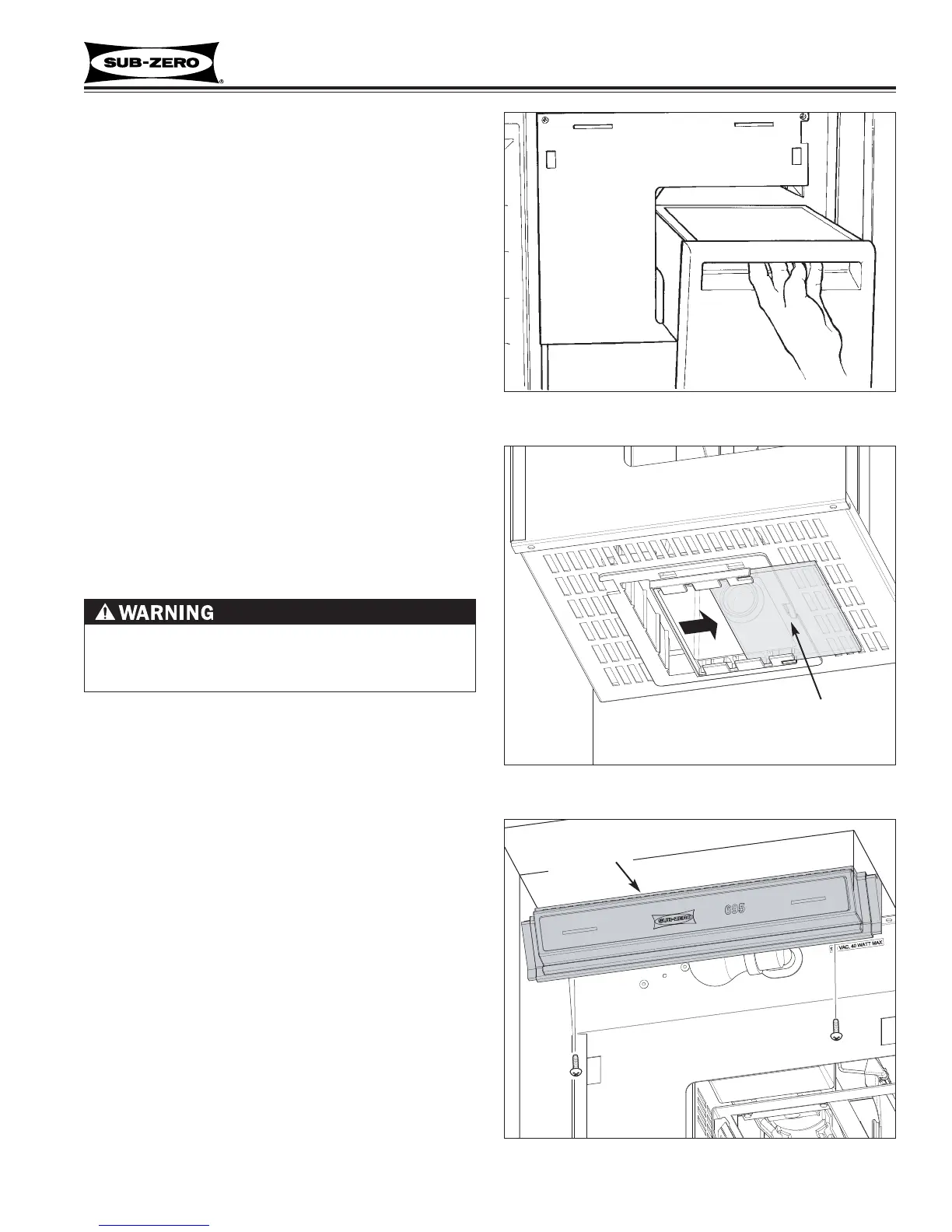

Ice Bucket Assembly (685-2, 695-2)
The ice bucket has a flange at the top of each side that
rides on the slides that are part of the ice bucket main-
frame assembly. When the ice bucket is installed prop-
erly, the coupler at the back engages the motor drive
yoke to turn the auger and impeller.
To remove the ice bucket assembly, the juice can rack
must be removed first, then (See Figure 7-127):
1. Lift front of ice bucket up slightly.
2. Pull ice bucket forward and out.
NOTE: To insure the juice can rack will fit after the ice
bucket is installed, the coupler at the back of the ice
bucket must engage the motor drive yoke properly.
Freezer Lower Light Diffuser Glass (685-2, 695-2)
Press the tab to the right of the diffuser glass, then slide
the glass to the right (See Figure 7-128).
NOTE: There is no upper light diffuser in the freezer.
The light bulbs are located directly behind the upper
front panel (See Figure 7-129).
Lift up.
Pull out.
Figure 7-127. Ice Bucket Assembly
IF BULB SHOULD SEPARATE FROM BASE, DIS-
CONNECT POWER TO UNIT BEFORE ATTEMPTING
TO REMOVE BASE.
Freezer Upper Front Panel Assembly
(685-2, 695-2)
The upper front panel assembly is secured to the ceil-
ing of a compartment by two rows of screws. The front
row (which is hidden) passes through spacers and fit
into keyhole slots in the panel assembly. The back row
of screws hold the assembly in place.
To remove a upper front panel (See Figure 7-129):
1. Extract back row of screws from panel assembly.
2. Push panel assembly back to line up front row of
screws with keyhole slots.
3. Lower panel assembly down and pull out.
Figure 7-128. Light Diffuser
Figure 7-129. Upper Front Panel
Upper Front
Panel
Press tab & slide
glass right
