Installation Information
Built-In
Built-In
(600-
(600-
2
2
)
)
Series
Series
2-8
#3758407 - Revision B - August, 2006

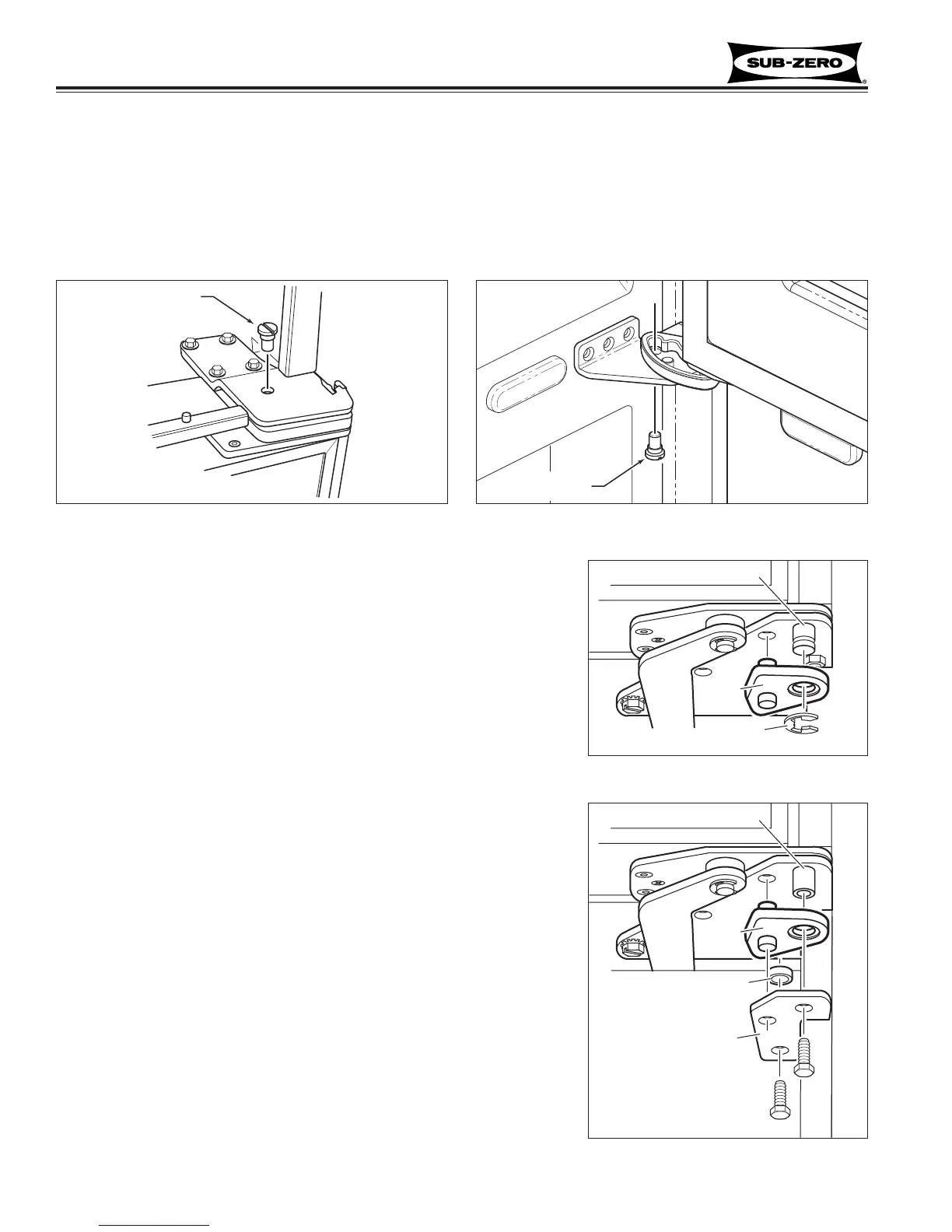

90° Door Stop Cam Installation (601R-2, 601RG-2, 601F-2)
Optional 90° door stop cam (part # DS90) and 105° door stop cam (part
# DS105) are available at no charge from Authorized Parts Distributors
and Product Distributors. To install:
a With door closed, extract bolts, stiffener plate and bushing from
lower cabinet hinge (See Figure 2-15).
b. Place door stop cam up over hinge pin, making sure stub on cam
fits into hole in lower cabinet hinge (See Figure 2-15).
c. Reinstall bushing, stiffener plate and bolts onto lower cabinet hinge
(See Figure 2-15).
PIN (3550770)
Figure 2-15. 90° Stop Pin (611G-2, 650G-2)
90° Door Stop Pin Installation (611-2, 650-2)
Part #3550770, 90° Door Stop Pin, is supplied with
models 611 and 650. To install:
a Remove unit grille.
b. With door closed, insert door stop pin down into
threaded hole in top cabinet hinge and tighten (See
Figure 2-14). Then, reinstall unit grille.
Figure 2-14. 90° Stop Pin (611-2, 650-2)
PIN (3550770)
90° DOOR
STOP CAM
HINGE PIN
STIFFENER
PLATE
BUSHING
Figure 2-15. 90° Stop Cam
90° DOOR
STOP CAM
E-RING
HINGE PIN
Figure 2-14. 90° Stop Cam
90° Door Stop Pin Installation (611G-2, 650G-2)
Part #3550770, 90° Door Stop Pin, is supplied with
models 611G and 650G. To install:
a Open freezer drawer.
b. Insert door stop pin up into threaded hole in lower
cabinet hinge and tighten (See Figure 2-15).
90° Door Stop Cam Installation (632-2, 642-2, 661-2, 685-2, 695-2)
Optional 90° door stop cam (part # DS90) and 105° door stop cam (part
# DS105) are available at no charge from Authorized Parts Distributors
and Product Distributors. To install:
a With door closed, place door stop cam up over hinge pin, making
sure stub on cam fits into hole in lower cabinet hinge (See Figure 2-
14).
b. Secure door stop cam by pushing E-ring into groove at end of hinge
pin (See Figure 2-14).
