Icemaker Information
Built-In
Built-In
(600-
(600-
2
2
)
)
Series
Series
6-6
#3758407 - Revision B - August, 2006

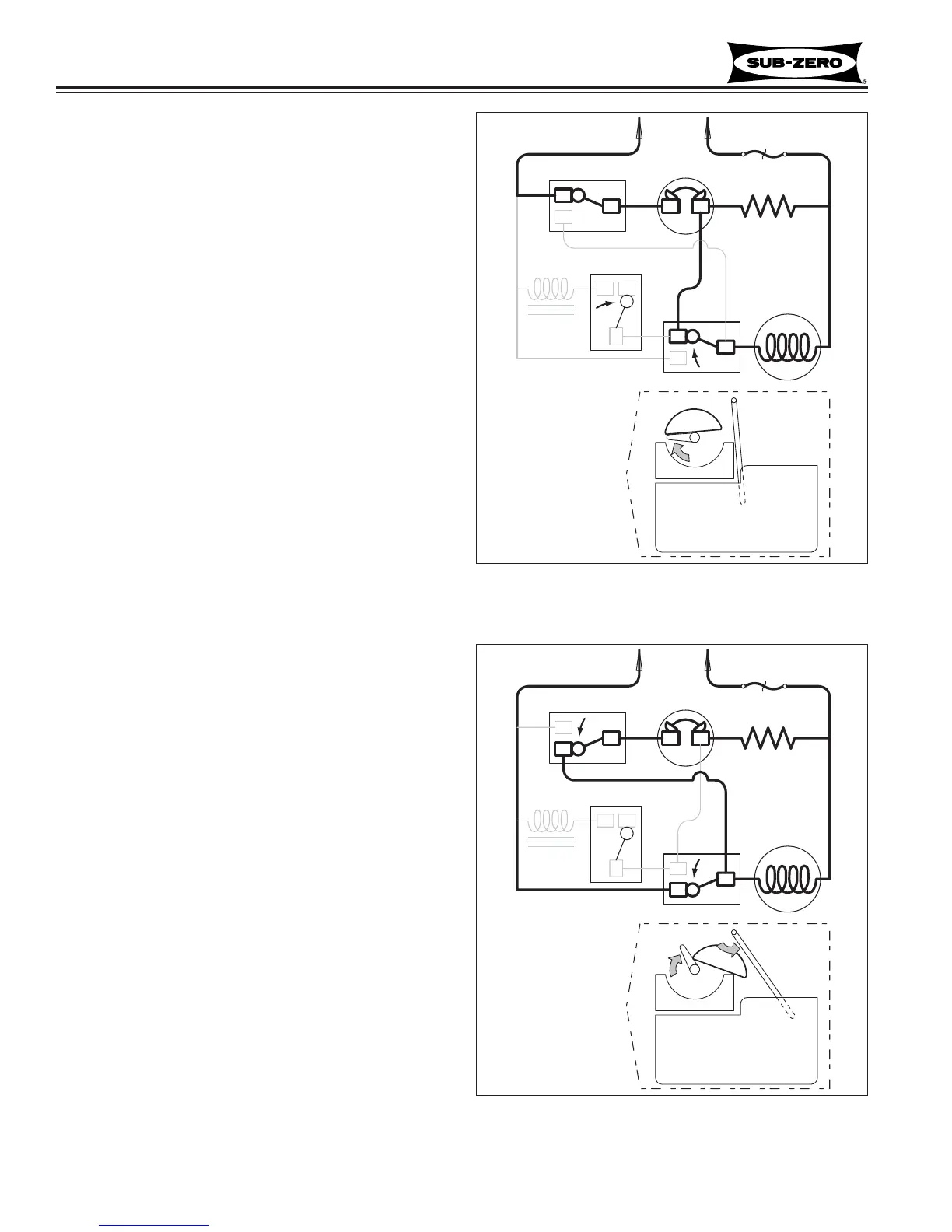

End of First Revolution (See Figure 6-7)
• The water valve solenoid switch is tripped by the
timing cam back to “normally open.”
• The timing cam trips the holding switch to “normally
close,” which ends the first revolution, but the ther-
mostat is still closed, so the motor is again started.
• The mold heater remains energized through the
thermostat.
Figure 6-7. End of First Revolution
Start of Second Revolution:(See Figure 6-8)
• The water valve solenoid switch is tripped by the
timing cam back to “normally open.”
• The timing cam trips the holding switch to “normally
close,” which ends the first revolution, but the ther-
mostat is still closed, so the motor is again started.
• The mold heater remains energized through the
thermostat.
To Next Page
