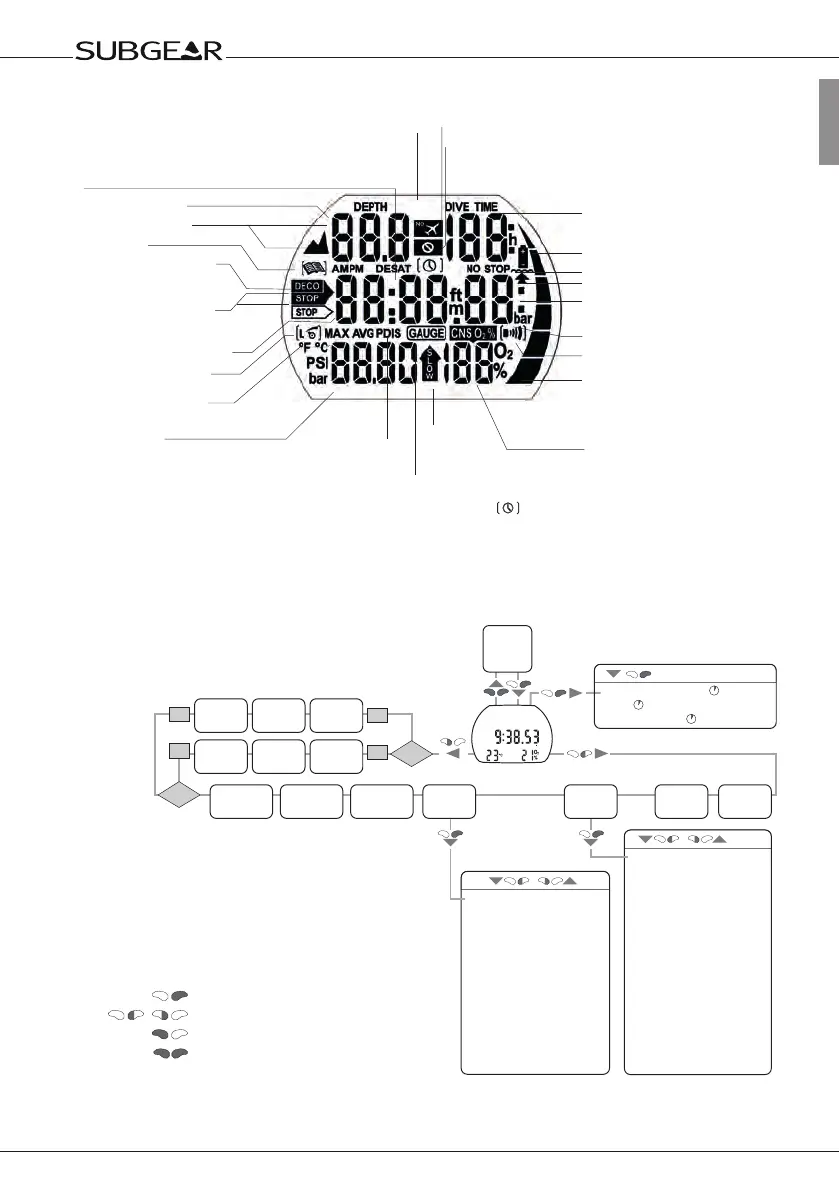

Quick reference
Time of day / Date
Decompression depth
Desaturation time (DESAT)
Duration of no-dive warning
Duration of surface interval
Current depth
Do not fly icon
No-dive warning
Battery icon
No-stop indicator
Ascent time icon
No-stop time / Total ascent time
Partial pressure of oxygen ppO
2
Alarm clock icon / Infrared icon
Nitrogen loading bar (dive)
Residual Nitrogen bar (surface)
Desaturation
Battery condition
O
2 mix
Oxygen toxicity CNS O
2%
Ascent rate
Too fast
ascent
Gauge icon
Dive time / No-fly time /
SOS duration
Repetitive dive number
Altitude sections
Log Book
Decompression stop
obligation / Ignored
decompression stop
Decompression stop
indicator
Decompression stop duration
O
2 mix icon (input)
Setting icon
Service icon
Tank pressure
Max depth
Maximum Operating Depth (MOD)
Dive number
CCR: AMD (Absolute Minimum
Depth SP2)
Icon for safety stop timer
AMPM
AMPM
AM/PM icon
DES
DESAT
Desaturation icon
Operating scheme
"->" means "more information at page"
on
off
CCR
/
/
on
off
CCR
Time of day display
• CCR on / off -> 68
• Depth alarm -> 68
• Dive time alarm -> 69
• Safety stop time -> 69
• ppO2 max -> 69
• Tank pressure alarms -> 69
• Reset to air -> 69
• PDIS -> 69
• Unit system -> 70
• Unit system, tank -> 70
• Salt water -> 70
• Light time -> 70
• Attention beep -> 70
• Water contacts -> 70
• Reset desaturation -> 71
• Alarm clock ->72
• UTC time zone ->72
• Time of day ->72
• Date ->72
• 24h / AM PM ->72
• LCD contrast ->73
• IrDA speed ->73
• Sound on / off ->73
• Electronic ID ->73
Off
SP1
ppO2%
->52
Gas 1
O
2
%
->22
SP2
ppO
2
%
->52
Gas 2
O
2
%
->->45
Bail
O
2
%
->52
Gas d
O
2
%
->45
MB Level
L0-L5 ->34
Gauge mode
->32
Altitude
adjustment
->30
Set 2
->71
Set 1
->68
Dive
planner
->62
Logbook
->65
• (Desat. time CNS O
2
% ) ->15
• Date
->15
• Battery condition
->15
Enter
/ Scroll / Change setting
Backlight
Exit
