System and operation
2 SYSTEM AND OPERATION

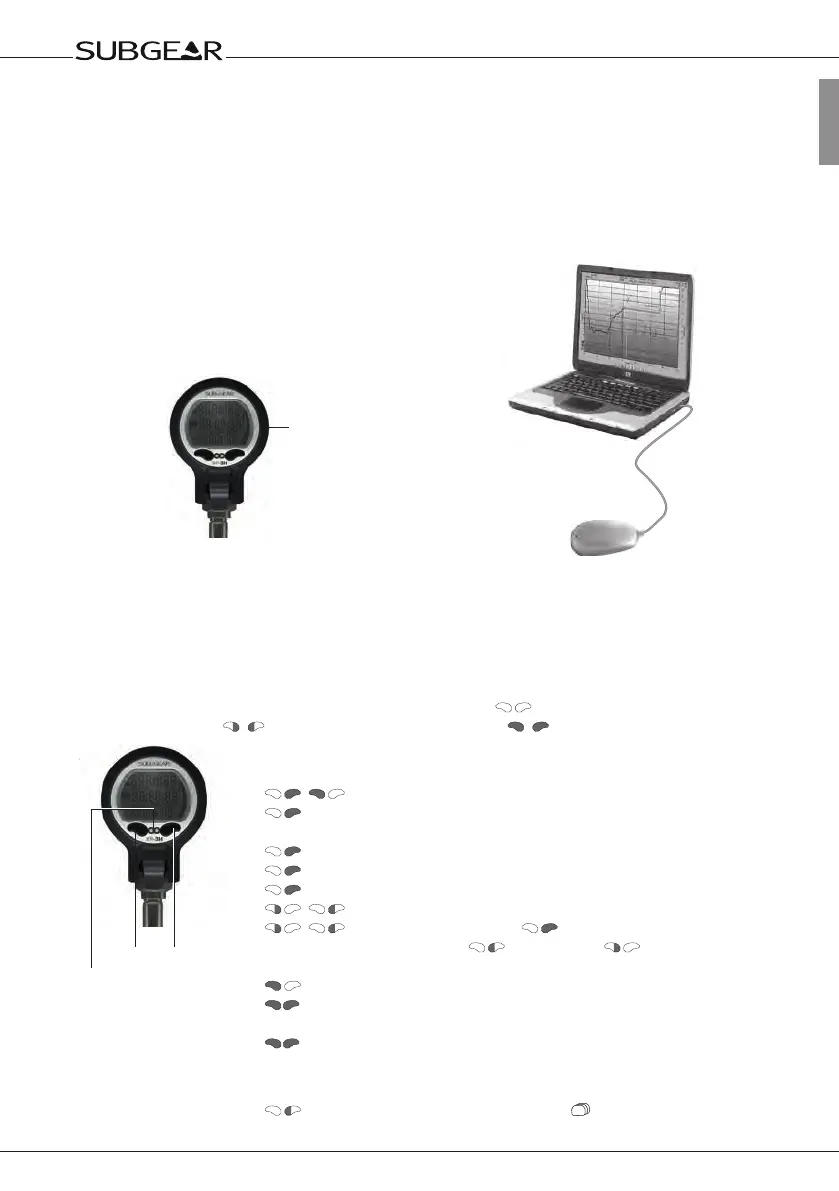

2.1 System description
Subgear XP-3H displays all important dive and decompression data and has a memory which stores
the full dive data.
The data can be transmitted with an infrared interface (IrDA) and Dive.Log software to
a Windows
®
personal computer.
Dive.Log software CD is included with the
Subgear XP-3H
package. Infrared interfaces are available in
PC.
Infrared port
SUBGEAR
Subgear XP-3H
Dive.Log
Infrared Interface
(option)
2.2 Operation
On page 5 and 14 you will find an operating schematic.
2.3 Push buttons
Subgear XP-3H can be operated with two push buttons (
). Operation of the push buttons is
divided into "press" ( / ) and "press and hold (1 second)" ( / ).
At the surface:
/ • Switch on Subgear XP-3H (time of day display)
• Comparable to the ENTER or RETURN key of a
keyboard
• Enter into the displayed sub menu
• Open the displayed setting
• Confirm or enter the displayed value or setting
/ • Scroll through a menu
/ • Once entered with into a sub menu or setting:
- Increase ( ) or decrease ( ) the indicated value
- Change the setting
• Switch on the backlight
• Exit the current function or menu and switch to the
time of day display
• Switch off Subgear XP-3H
Under water:
• Access alternate displays
Push buttons
Water contacts
(one located in front
and one on back,
however, inaccessible)
