16 910R/950R/950T/970T - RECEIVER
DISPLAY
16 910R/950R/950T/970T - RECEIVER
DISPLAY

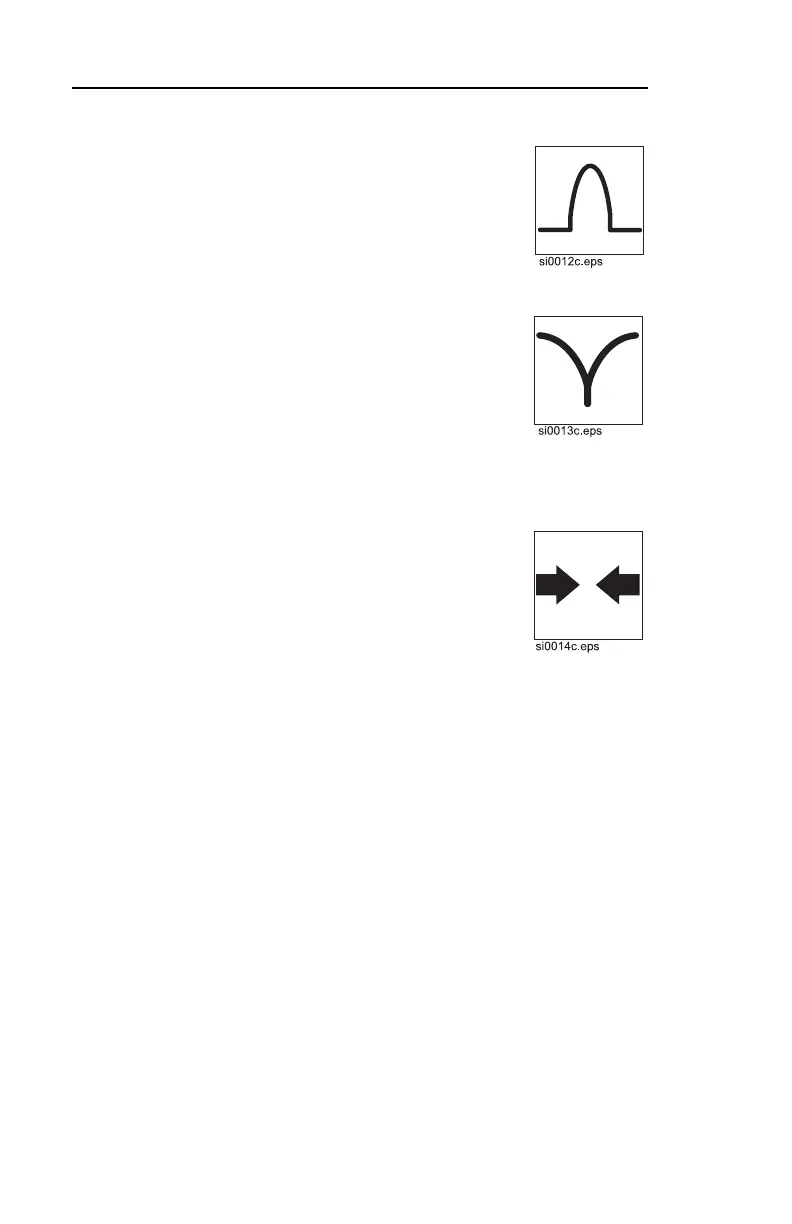

Twin
Gives sharper location than single antenna.
Signal strength peaks when receiver is over
the line being located.
Null
Gives precise response when locating lines in
uncongested areas. Signal drops to minimum
strength when receiver is over the line being
located. In congested areas, confirm location
by using single or twin peak antenna.
Left/Right
Indicates position of receiver relative to the
line being located. Used primarily for active
mode, but can also be used as a fore/aft
indicator in beacon mode.
• Move receiver in the direction of the arrow.
• When receiver is over the line, both arrows display and two
beeps sound.
