Suburban SW6PR Service Training Manual

29

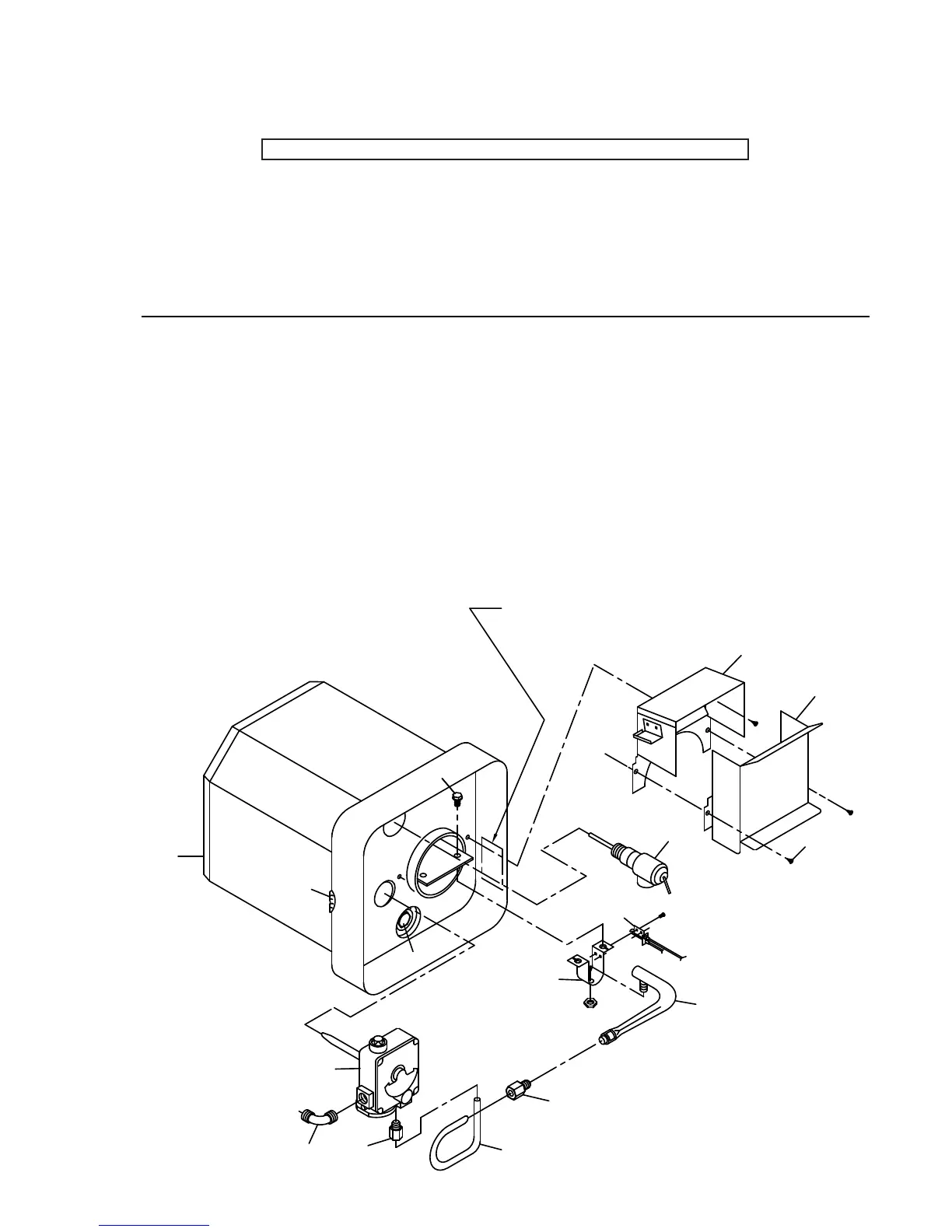

PARTS ILLUSTRATION AND REPLACEMENT PARTS
LIST FOR MODEL
SW4P
Only factory authorized parts are to be used. Do not attempt to repair defective parts.
When ordering repair parts from your dealer or a distributor, always give the following information:
1. Part Number (Not Item No.)
2. Part Description
3. Model No. and Serial No. of your Heater
4. Number of Parts Required
NOTE: Part numbers are common to all models unless noted.
Item
No. Description Part Number
1 Back Assembly Flue Collector...................................................................................................................................... 101682
3 Front, Flue Collector ..................................................................................................................................................... 101683
4 Screw 10 x 1/4 ............................................................................................................................................................. 121577
5 Valve, Pressure Relief ...................................................................................................................................................161157
6 Screw 8mm - 4.0 x 1/2 Hex Washer Head (2 Required)) ............................................................................................. 121943
7 Pilot Burner/Thermocouple ...........................................................................................................................................161156
9 Burner Bracket ............................................................................................................................................................ 063444
11 Burner with Orice ........................................................................................................................................................ 010844
13 1/4 Loxit Nut (Manifold to Valve) .................................................................................................................................. 171463
14 Manifold Outlet ............................................................................................................................................................. 171421
15 Elbow ........................................................................................................................................................................... 171394
16 Thermostat/Valve (SIT) ................................................................................................................................................. 161111
17 Anode ........................................................................................................................................................................... 232767
18 Grommet, Gas Inlet ...................................................................................................................................................... 070989
19 Foam Jacket Assembly Complete ................................................................................................................................ 520867
20 1/4 Loxit Nut (Manifold to Burner) ................................................................................................................................ 171463
1
3
4
5
7
9
11
20
14
13
15
16
18
19
6
17
NUMÉRO DE MODÉLE
NOMÉRO DE SÉRIE
MODEL & SERIAL PLATE
