Suburban SW6PR Service Training Manual

35

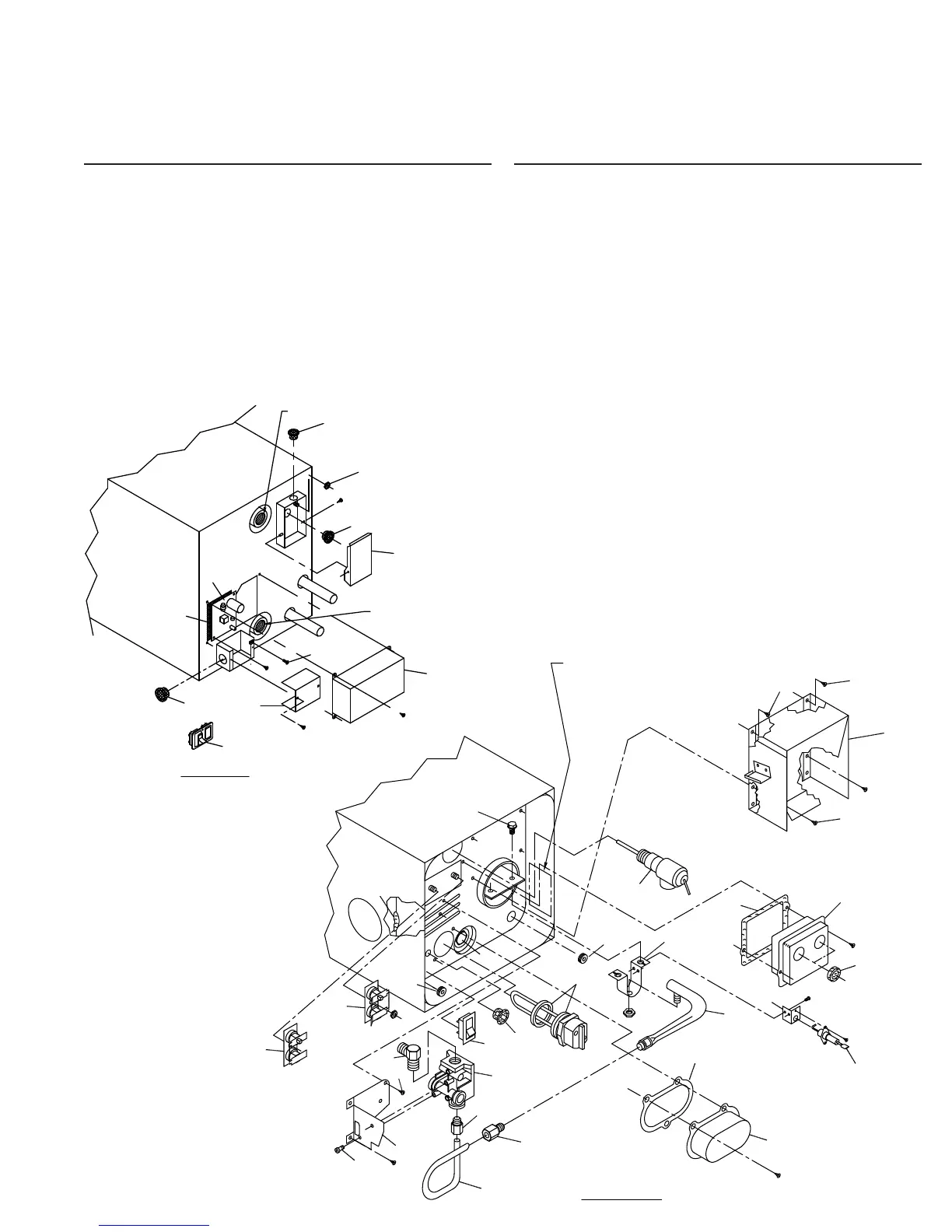

PARTS ILLUSTRATION AND REPLACEMENT PARTS LIST
FOR MODELS SW10DEM, SW12DEM AND SW16DEM
Item Part Number
No. Description SW10DEM
SW12DEM
SW16DEM
1 Cover Module Board ............................................................. 090340
4 Cover, Junction Box (12 V.D.C.) ............................................ 090344
5 Screw 10-32 x 3/8 (Green) .................................................... 121702
7 Switch, Lamp and Plate Assembly ....................................... 232589
8 Bushing, Snap 7/8” ................................................................ 230218
9 Insulator, Module Board ........................................................ 070807
10 Module Board ........................................................................ 520814
11 Cover, Junction Box (120 V.A.C.) .......................................... 090464
12 Nut 10-24 Keps (Green) ........................................................ 121576
13 Bushing ................................................................................. 070486
15 Flue Collector Back Assembly Complete .............................. 101777
17 Screw 10 x 1/4 (3 Required) .................................................. 121577
18 Valve, Pressure Relief ............................................................161157
Item Part Number
No. Description SW10DEM
SW12DEM
SW16DEM
20 Gasket, Thermostat Cover .................................................... 070987
21 Cover, Thermostat/Hi Limit .................................................... 090562
23 Bracket, Electrode Mounting ................................................. 063187
24 Grommet (2 Required) .......................................................... 070874
26 Electrode ............................................................................... 232258
27 Burner Assembly with orice ................................................. 010843
29 1/4 Loxit Nut (Manifold to Valve) ........................................... 171463
31 Cover, Element ...................................................................... 090445
32 Gasket, Element Cover ......................................................... 070988
33 Switch, Electric Element ........................................................ 232362
34 Anode .................................................................................... 232767
35 Grommet, Gas Inlet ............................................................... 070989
36 Switch Assembly, 120 V.A.C. T-Stat/Hi-Limit ......................... 232306
37 Switch Assembly, 12 V.D.C. T-Stat/Hi-Limit ........................... 232282
39 Grommet ............................................................................... 071246
41 Screw 10 x 1/4 (2 Required) .................................................. 121577
42 Gas Fitting ............................................................................. 170374
43 Electric Element with Gasket (SW10DEM) ........................... 520789
Electric Element with Gasket (SW12DEM, SW16DEM) ........ 520900
44 Valve, Gas (LP) ......................................................................161109
45 Manifold, Outlet ..................................................................... 171420
46 Valve Mounting Bracket ........................................................ 063243
47 Screw 8-32 x 3/8 Hex HD (2 Required) ................................. 121958
48 Bushing, Snap 1/2” ................................................................ 070270
50 Burner Bracket ..................................................................... 063444
51 Screw 8mm - 4.0 x 1/2 Hex Washer Head (2 Required) ....... 121943
52 1/4 Loxit Nut (Manifold to Burner) ......................................... 171463
53 Electrode Wire(Not Shown) (SW10DEM) .............................. 232454
Electrode Wire(Not Shown) (SW12DEM, SW16DEM) .......... 232791
HOT
COLD
13
12
8
11
1
5
4
8
10
9
7
REAR VIEW
18
23
26
27
32
31
43
39
50
39
33
44
29
52
45
41
42
46
47
37
36
48
24
20
21
35
34
51
FRONT VIEW
17
17
17
15
MODEL & SERIAL PLATE
