Suburban SW6PR Service Training Manual

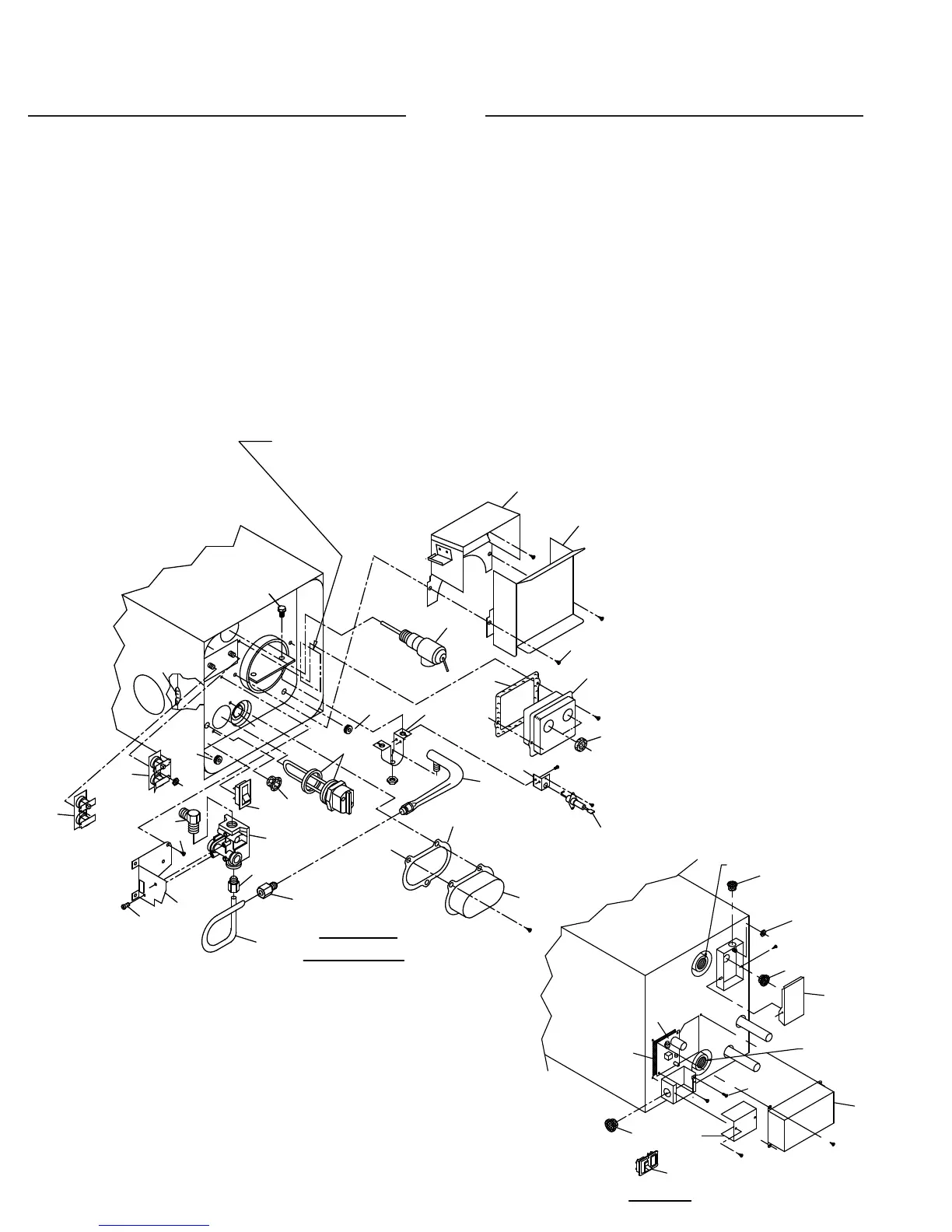

PARTS ILLUSTRATION AND REAPLACEMENT PARTS LIST
FOR MODEL SW6DEM
Item Part Number
No. Description SW6DEM
1 Cover, Module Board .....................................................090340
4 Cover, Junction Box (12 V.D.C.) ....................................090344
5 Screw 10-32 x 3/8 (Green) ............................................121702
7 Switch, Lamp and Plate Assembly ...............................232589
8 Bushing, Snap ...............................................................230218
9 Insulator, Module Board ................................................070807
10 Module Board ................................................................520814
11 Cover, Junction Box ......................................................090464
12 Nut 10-24 Keps (Green) ................................................121576
13 Bushing .........................................................................070486
14 Back, Flue Collector ......................................................101682
16 Screw #10 x 1/4 .............................................................121577
17 Front, Flue Collector ...................................................... 101776
18 Valve, Pressure Relief ................................................... 161157
19 Gasket, Thermostat Cover ............................................070987
20 Cover, Thermostat/Hi-Limit ............................................ 090562
23 Grommet (2 Required) ..................................................070874
25 Electrode .......................................................................232258
26 Bracket, Electrode Mounting .........................................063187
Item Part Number
No. Description SW6DEM
28 Cover, Element ..............................................................090445
29 Gasket, Element Cover .................................................070988
30 Burner Assembly with orice .........................................010843
32 1/4 Loxit Nut (Manifold to Valve) ...................................171463
33 Electric Element with Gasket .........................................520789
34 Anode ............................................................................232767
36 Grommet .......................................................................071246
37 Switch, Electric Element ................................................ 232362
38 Valve, Gas (LP) ............................................................. 161109
39 Manifold, Outlet .............................................................171420
40 Screw 10 x 1/4 (4 Required) ..........................................121577
41 Screw #8-32 x 3/8 Hex HD ........................................... 121958
Bracket, Valve Mounting ................................................063243
43 Gas Fitting .....................................................................170374
44 Bushing, Snap 1/2” ........................................................ 070270
45 Switch Assembly, 120 V.A.C. T-Stat/Hi-Limit ................. 232306
47 Switch Assembly, 12 V.D.C. T-Stat/Hi-Limit ...................232282
48 Grommet, Gas Inlet .......................................................070989
49 Screw 8mm - 4.0 x 1/2 Hex Washer Head (2 Required) 121943
50 Burner Bracket .............................................................063444
52 1/4 Loxit Nut (Manifold to Burner) .................................171463
53 Electrode Wire (Not Shown) .......................................... 232454
HOT
COLD
13
12
8
11
1
5
4
8
10
9
7
REAR VIEW
MODEL & SERIAL NO. PLATE
49
18
14
17
16
26
25
30
29
28
33
36
50
36
37
38
32
52
39
40
43
42
41
47
45
44
23
19
20
48
34
FRONT VIEW
VUE DE L'AVANT
SW6DEM
NUMÉRO DE MODÉLE
NUMÉRO DE SÉRIE
32

Suburban SW6PR Specifications

General

Brand	Suburban
Model	SW6PR
Category	Water Heater
Language	English
