SUBURBAN RV WATER HEATERS
SPEC SHEET
MODEL
NUMBER
NOM.
GALS.
BTU/h
INPUT Height Width Depth
Shipping
Weight
STANDARD PILOT
SW4P 4 9,000 12-11/16” 12-11/16” 16-1/8” 30
SUPER PERFORMANCE PILOT
SW6P 6 12,000 12-11/16” 12-11/16” 19-3/16” 37
SW10P 10 12,000 16-7/32” 16-7/32” 20-1/2” 48
SUPER PERFORMANCE PILOT WITH RE-IGNITOR
SW6PR 6 12,000 12-11/16” 12-11/16” 19-3/16” 37
SW10PR 10 12,000 16-7/32” 16-7/32” 20-1/2” 48
SUPER PERFORMANCE COMBINATION ELECTRIC AND PILOT
SW6PE 6 12,000 12-11/16” 12-11/16” 19-3/16” 37
SW10PE 10 12,000 16-7/32” 16-7/32” 20-1/2” 48
SUPER PERFORMANCE COMBINATION ELECTRIC AND PILOT W/RE-IGNITOR
SW6PER 6 12,000 12-11/16” 12-11/16” 19-3/16” 37
SW10PER 10 12,000 16-7/32” 16-7/32” 20-1/2” 49
DIRECT SPARK IGNITION
SW6D 6 12,000 12-11/16” 12-11/16” 19-3/16” 35
SW10D 10 12,000 16-7/32” 16-7/32” 20-1/2” 49
SW12D 12 12,000 16-7/32” 16-7/32” 22-1/4” 51
SW16D 16 12,000 16-7/32” 16-7/32” 27” 53
ELECTRIC and DIRECT SPARK IGNITION
SW6DE 6 12,000 12-11/16” 12-11/16” 19-3/16” 37
SW10DE 10 12,000 16-7/32” 16-7/32” 20-1/2” 50
SW12DE 12 12,000 16-7/32” 16-7/32” 22-1/4” 52
SW16DE 16 12,000 16-7/32” 16-7/32” 27” 53
ELECTRIC with 12 VOLT RELAY and DIRECT SPARK IGNITION
SW6DEL 6 12,000 12-11/16” 12-11/16” 19-3/16” 37
SW10DEL 10 12,000 16-7/32” 16-7/32” 20-1/2” 50
SW12DEL 12 12,000 16-7/32” 16-7/32” 22-1/4” 52
SW16DEL 16 12,000 16-7/32” 16-7/32” 27” 53
ELECTRIC and DIRECT SPARK IGNITION with MOTOR AID
SW6DEM 6 12,000 12-11/16” 12-11/16” 19-3/16” 39
SW10DEM 10 12,000 16-7/32” 16-7/32” 20-1/2” 60
SW12DEM 12 12,000 16-7/32” 16-7/32” 22-1/4” 62
SW16DEM 16 12,000 16-7/32” 16-7/32” 27” 64
120 VOLT AC DIRECT SPARK IGNITION
SW16V 16 12,000 16-7/32” 16-7/32” 27” 53
ELECTRIC and 120 VOLT AC DIRECT SPARK IGNITION
SW16VE 16 12,000 16-7/32” 16-7/32” 27” 53
ACCESSORIES DESCRIPTION
520821 Re-Ignitor Kit (Applicable only to models above. See #991801501
6261ACW
697205
690578
520781
Door, Colonial White, SW Model, Radius Corner - 4, 6 Gallon
Door, Colonial White, V Model, Radius Corner - 4, 6 and 8 Gallon
Door, Colonial White, V Model, Square Corner - 4, 6 and 8 Gallon
Kit to adapt old V Model 6 Gallon Radius Door to SW6 Water Heater
6255ACW
697221
520771
Door, Colonial White, SW Model, Flush Mount - 4, 6 Gallon
Door, Colonial White, V Model, Flush Mount - 6 Gallon
Kit to adapt old V Model Flush Mount Door to SW6 Water Heater
6257ACW
697213
Door, Colonial White, V Model, Radius Corner - 10 Gallon
Door, Colonial White, V Model, Square Corner - 10 Gallon
6259ACW
520787
520818
Door, Colonial White, SW Model, Flush Mount, 10, 12 & 16 Gallon
Door Kit (6 Gallon Aluminum Tank Replacement Kit) Colonial White
Door Kit (6 Gallon Aluminum Tank Replacement Kit) Polar White

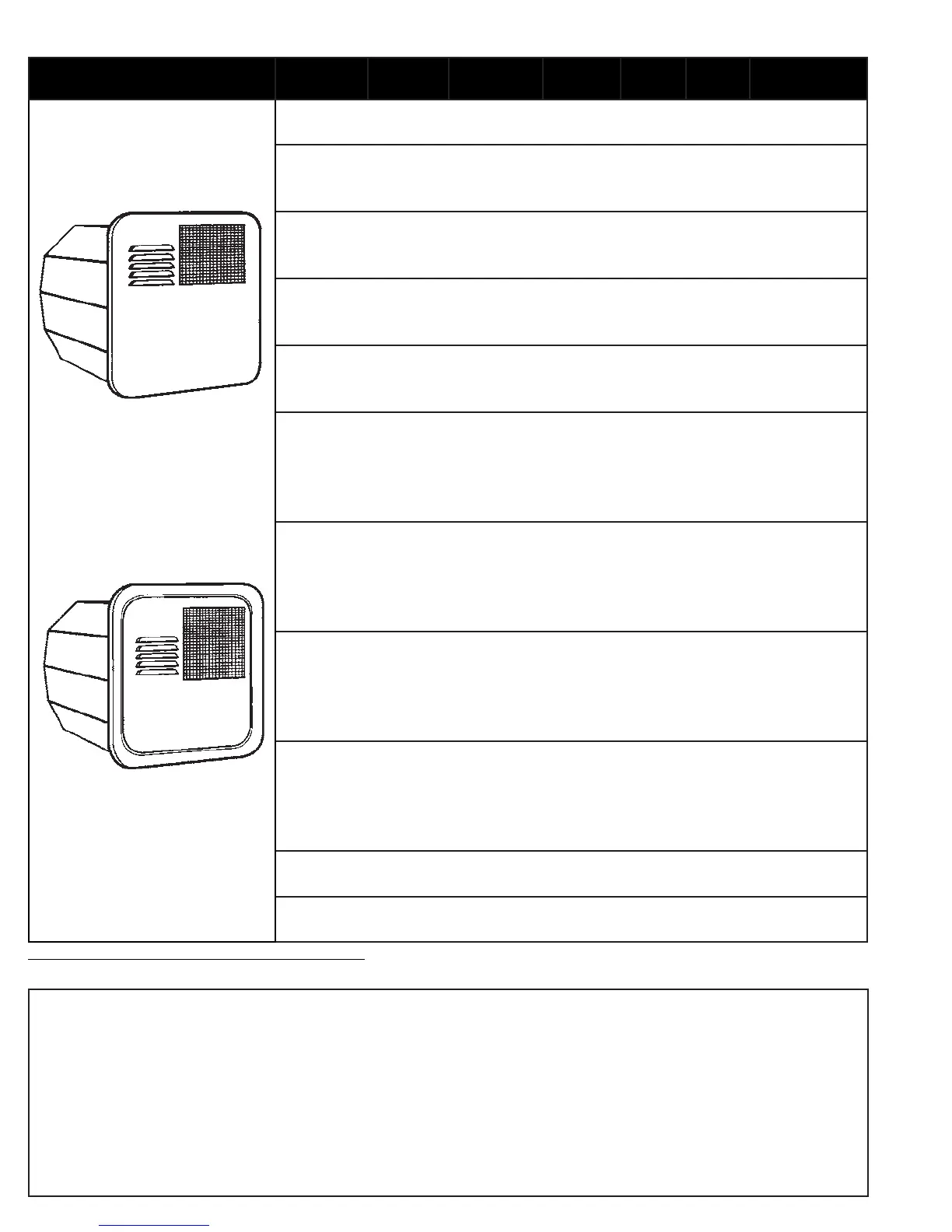

Radius Corner Door
Flush Mount Door
WATER HEATERS AND DOORS ARE SOLD SEPERATELY
6
