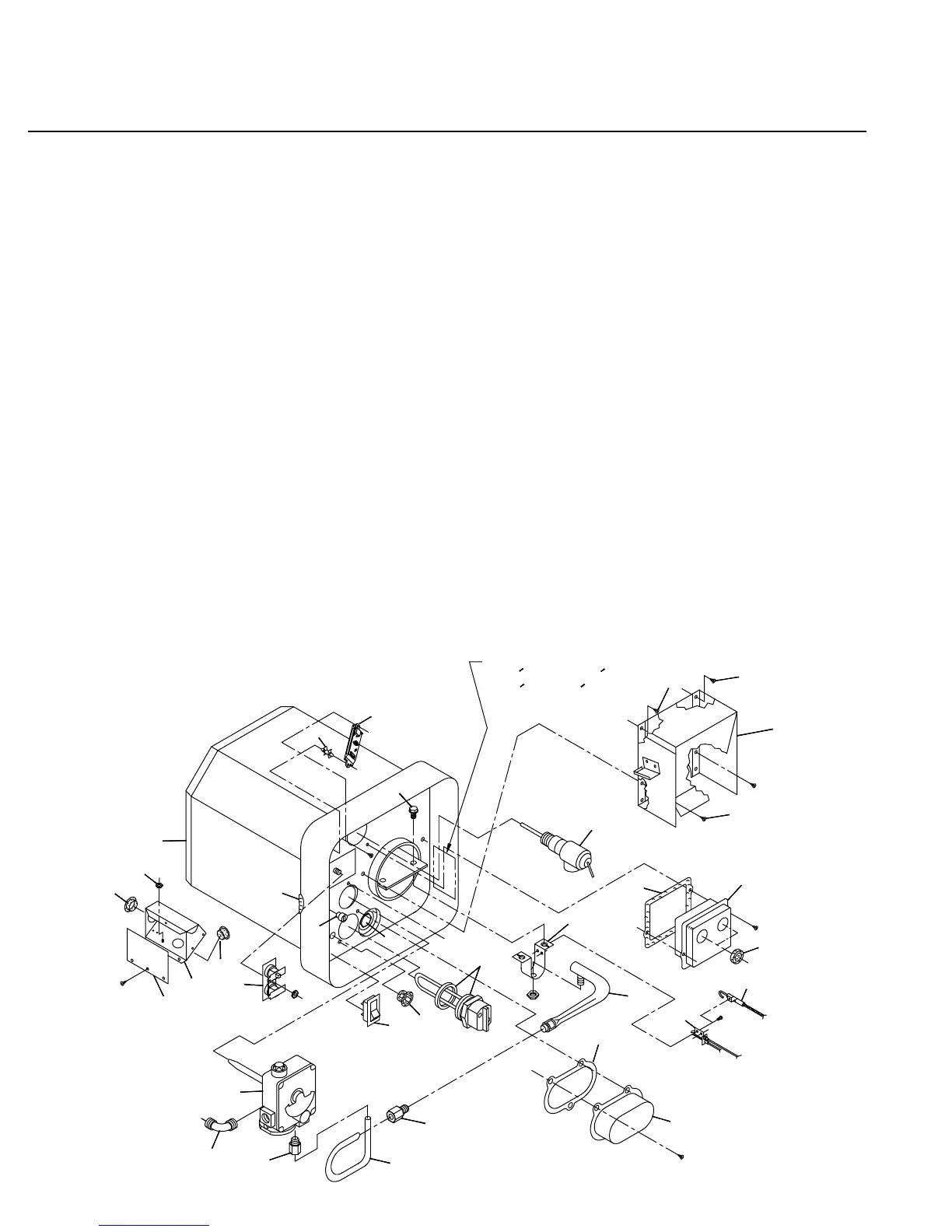

PARTS ILLUSTRATION AND REPLACEMENT PARTS LIST
FOR MODELS SW10P, SW10PR, SW10PE, SW10PER
Item Part Number
No. Description SW10P SW10PR SW10PE SW10PER
1 Reignitor ...................................................................................................................................................---------- 232720 ---------- 232720
2 Reignitor Support (2 Required) ................................................................................................................---------- 121864 ---------- 121864
4 Flue Collector Back Assembly Complete .................................................................................................101675 101676 101675 101676
6 Screw 10 x 1/4 (3 Required) ..................................................................................................................... 121577 121577 121577 121577
7 Valve, Pressure Relief ..............................................................................................................................161157 161157 161157 161157
9 Grommet ..................................................................................................................................................---------- ---------- 070874 070874
10 Gasket, Thermostat Cover .......................................................................................................................---------- ---------- 070987 070987
11 Cover, Thermostat ....................................................................................................................................---------- ---------- 090562 090562
13 Electrode, Reignitor ..................................................................................................................................---------- 232602 ---------- 232602
14 Pilot Burner/Thermocouple Assembly ......................................................................................................161156 161156 161156 161156
15 Burner Assembly with Orice ...................................................................................................................010843 010843 010843 010843
17 1/4 Loxit Nut (Manifold to Valve) ..............................................................................................................171463 171463 171463 171463
18 Electric Element with Gasket .................................................................................................................... ---------- ---------- 520789 520789
20 Cover, Element ......................................................................................................................................... ---------- ---------- 090445 090445
21 Gasket, Element Cover ............................................................................................................................---------- ---------- 070988 070988
22 Switch, Electric Element ...........................................................................................................................---------- ---------- 232362 232362
23 Bushing, Snap ½” .....................................................................................................................................---------- ---------- 070270 070270
24 Anode .......................................................................................................................................................232767 232767 232767 232767\
26 Bushing, Strain Relief ...............................................................................................................................---------- 070841 ---------- 070841
27 Grommet, Gas Inlet ..................................................................................................................................070989 070989 070989 070989
28 Bushing, Snap 7/8” ...................................................................................................................................---------- ---------- 230218 230218
29 Foam Jacket Assembly Complete ............................................................................................................520869 520869 520869 520869
30 Nut 10-24 Keps (Green) ...........................................................................................................................---------- ---------- 121576 121576
31 Junction Box Assembly (120 V.A.C.) ........................................................................................................---------- ---------- 090575 090575
32 Cover, Junction Box .................................................................................................................................---------- ---------- 090576 090576
35 Switch Assembly 120 V.A.C. T-Stat/Hi-Limit .............................................................................................---------- ---------- 232306 232306
36 Elbow 45 ................................................................................................................................................171393 171393 171393 171393
37 Thermostat/Gas Control (SIT) ...................................................................................................................161111 161111 161111 161111
38 Manifold Outlet .........................................................................................................................................171422 171422 171422 171422
40 Burner Bracket .........................................................................................................................................063444 063444 063444 063444
41 Screw 8mm - 4.0 x ½ Hex Washer Head (2 Required) ............................................................................121943 121943 121943 121943
42 1/4 Loxit Nut (Manifold to Burner) ............................................................................................................171463 171463 171463 171463
7
10
9
13
14
40
15
21
20
42
38
17
37
36
23
22
27
35
29
2
1
41
26
24
11
18
4
6
6
6
28
31
32
28
30
MODEL & SERIAL NO. PLATE
NUMERO DE MODELE
NOMERO DE SERIE
34
