Suburban SW6PR Service Training Manual

33

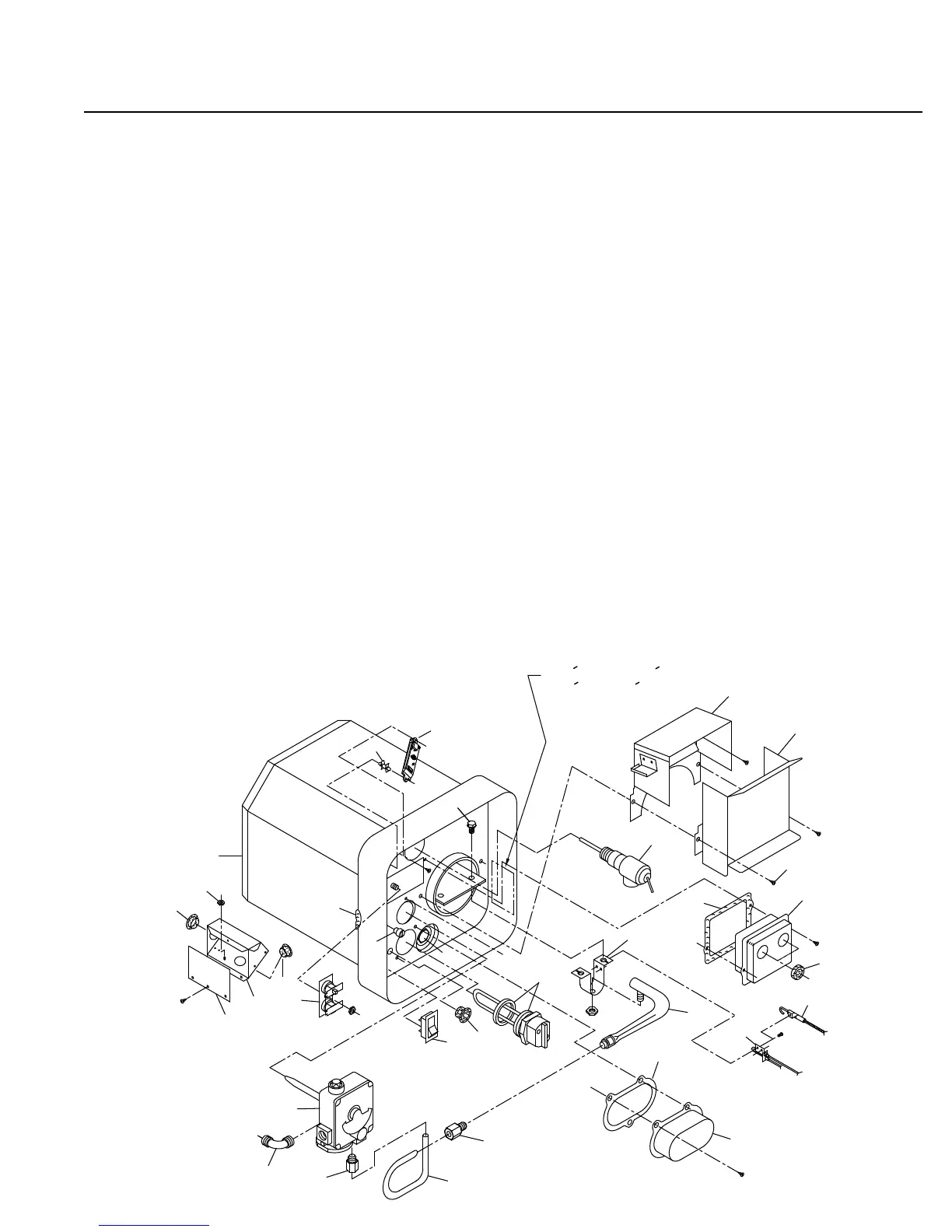

PARTS ILLUSTRATION AND REPLACEMENT PARTS LIST
FOR MODELS SW6P, SW6PR, SW6PE, SW6PER
Item Part Number
No. Description SW6P SW6PR SW6PE SW6PER
1 Reignitor Support (2 Required) .................................................................................................................--------- 121864 --------- 121864
2 Reignitor ....................................................................................................................................................--------- 232720 --------- 232720
4 Back Assembly, Flue Collector .................................................................................................................101682 101682 101682 101682
5 Front, Flue Collector .................................................................................................................................101683 101684 101683 101684
6 Valve, Pressure Relief ..............................................................................................................................161157 161157 161157 161157
7 Screw #10 x 1/4 ........................................................................................................................................ 121577 121577 121577 121577
9 Cover, Thermostat/Hi-Limit ........................................................................................................................--------- --------- 090562 090562
10 Gasket, Thermostat Cover ........................................................................................................................--------- --------- 070987 070987
12 Grommet ...................................................................................................................................................--------- --------- 070874 070874
14 Pilot Burner/thermocouple Assembly .......................................................................................................161156 161156 161156 161156
15 Electrode, Reignitor ................................................................................................................................... --------- 232602 --------- 232602
17 Cover, Element ..........................................................................................................................................--------- --------- 090445 090445
18 Gasket, Element Cover .............................................................................................................................--------- --------- 070988 070988
19 Burner Assembly with orice ....................................................................................................................010843 010843 010843 010843
21 1/4 Loxit Nut (Manifold to Valve) ..............................................................................................................171463 171463 171463 171463
22 Electric Element with Gasket .....................................................................................................................--------- --------- 520789 520789
23 Bushing, Strain Relief ................................................................................................................................ --------- 070841 --------- 070841
24 Anode .......................................................................................................................................................232767 232767 232767 232767
25 Bushing, Snap 1/2” .................................................................................................................................... --------- --------- 070270 070270
26 Switch, Electric Element ............................................................................................................................ --------- --------- 232362 232362
27 Manifold, Outlet ........................................................................................................................................171421 171421 171421 171421
28 Thermostat/Valve (SIT)..............................................................................................................................161111 161111 161111 161111
29 Elbow ........................................................................................................................................................171394 171394 171394 171394
31 Switch Assembly, 120 V.A.C. T-Stat/Hi Limit .............................................................................................--------- --------- 232306 232306
33 Cover, Junction Box ..................................................................................................................................--------- --------- 090576 090576
34 Grommet, Gas Inlet ..................................................................................................................................070989 070989 070989 070989
35 Bushing, Snap 7/8” .................................................................................................................................... --------- --------- 230218 230218
36 A.C. Junction Box Assembly .....................................................................................................................--------- --------- 090575 090575
37 Nut, 10-24 Keps (Green) ...........................................................................................................................--------- --------- 121576 121576
38 Bushing, Snap 7/8” .................................................................................................................................... --------- --------- 230218 230218
39 Foam Jacket Assembly Complete ............................................................................................................520868 520868 520868 520868
40 Screw 8mm - 4.0 x 1/2 Hex Washer Head (2 Required) ..........................................................................121943 121943 121943 121943
41 Burner Bracket ........................................................................................................................................063444 063444 063444 063444
43 1/4 Loxit Nut (Manifold to Burner) ............................................................................................................171463 171463 171463 171463
MODEL & SERIAL NO. PLATE
NUMERO DE MODELE
NOMERO DE SERIE
4
5
7
6
10
12
15
14
41
19
18
17
43
27
21
28
29
25
26
34
31
35
36
33
38
37
39
1
2
40
23
24
9
22
+
ON
