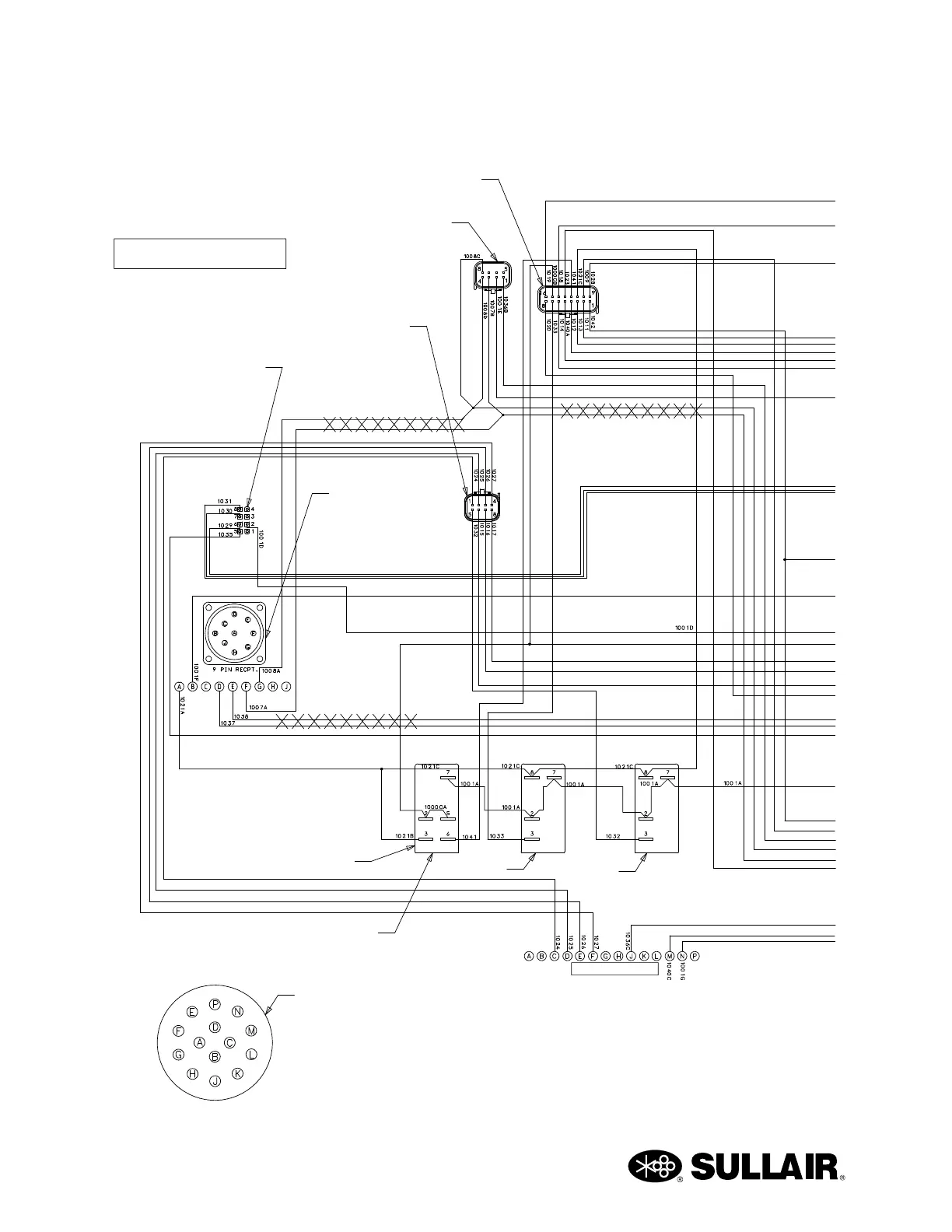

2.15 WIRING DIAGRAM, COMPASS CONTROLLER
16-POS SEALED HOUSING
8-POS SEALED HOUSING
LABEL “MASTER”
8-POS SEALED HOUSING
NOTE:
XXXXX = TWISTED PAIR
AMP 770579-1
8-POS MIN MATE-N-LOCK
AMP TERM 171637-1
9-PIN RECEPTACLE
USES PINS
1060-16-0122
SEAL UNUSED POS.
“START ON OFF”
‘VCH’ SWITCH BLOCK
W/ AMP FASTIN-FASTON 250
SERIES TERMINALS
CONNECTOR #1 14-PIN RECEPTACLE
USES PINS 0460-202-16141
SEAL UNUSED POSITIONS
“RESET”
“HI / LOW”
CONNECTOR #1
02250172-331 R00 LEFT
