600H, 750, 750H, 750HH, 825, 900, 900H, 1050 T3 CAT User Manual 2: Description
02250197-981 R01
Subject to EAR, ECCN EAR99 and related export control restrictions. 21

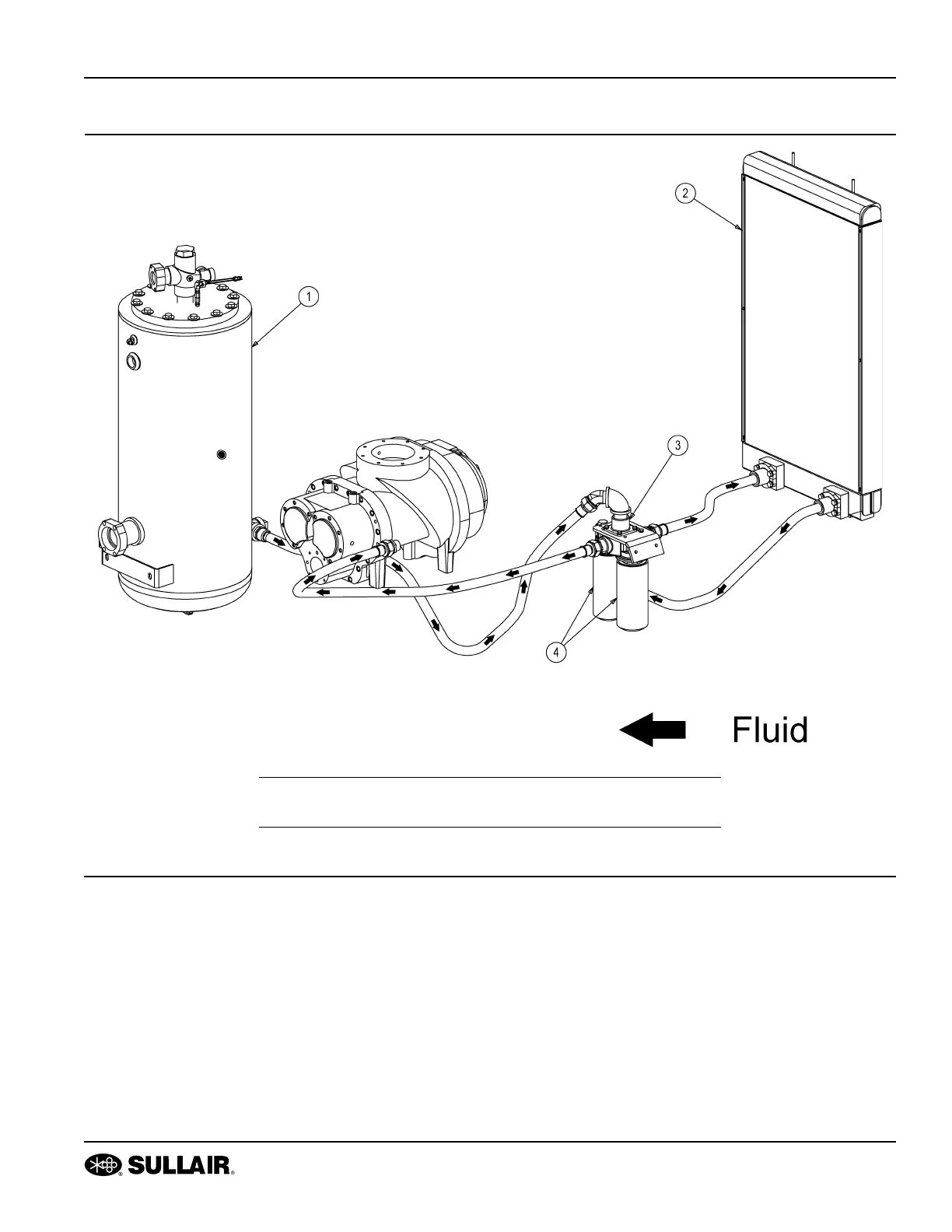

Figure 2-3: Compressor oil, cooling and lubrication—all models
1. Receiver tank 3. Thermal valve
2. Fluid cooler 4. Fluid filter
