2: Description 600H, 750, 750H, 750HH, 825, 900, 900H, 1050 T3 CAT User Manual
02250197-981 R01
26 Subject to EAR, ECCN EAR99 and related export control restrictions.

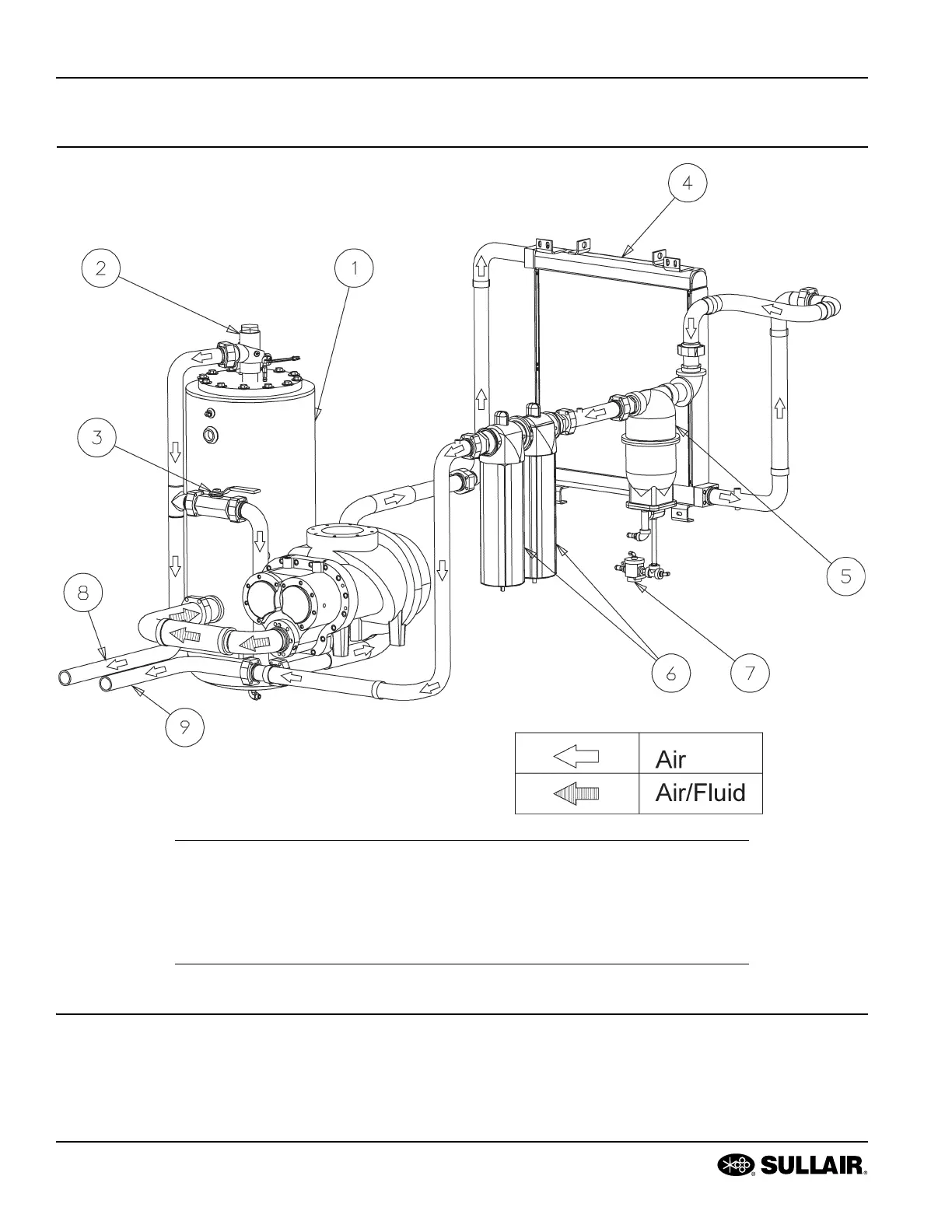

Figure 2-6: Aftercooled air system
1. Receiver tank 6. Discharge filter
2. Minimum pressure check valve 7. Pneumatic valves
3. Air valve 8. Standard air out
4. Aftercooler 9. Aftercooled air out
5. Moisture separator
