PRINCIPLE OF OPERATION SECTION 5
88

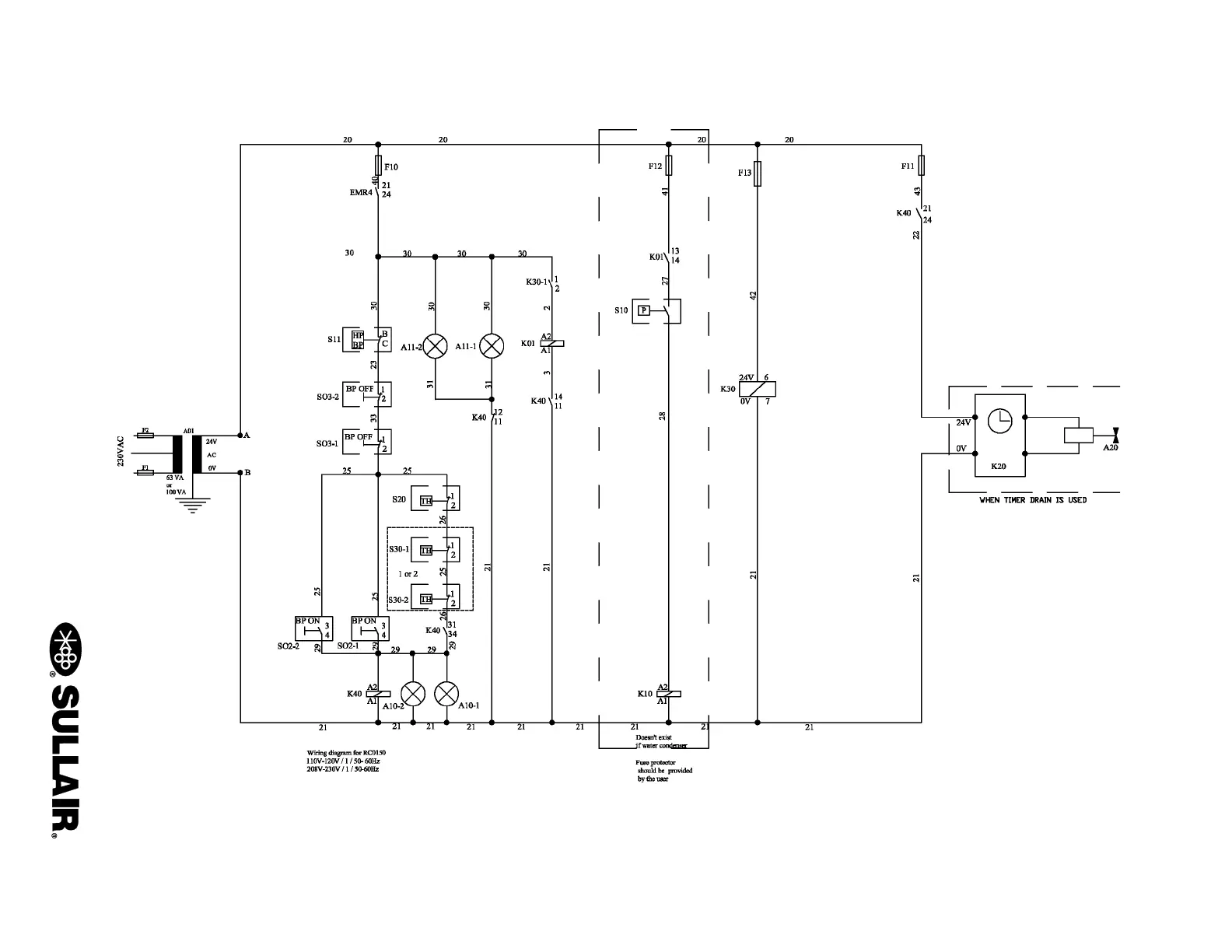

5.45 WIRING DIAGRAM—CONTROL CIRCUIT RC 150 (110/120-1-50/60-A, 208/230-1-50/60-A)
02250195-313-1
