Installation, Operation, and Maintenance Manual
SUMMIT PUMP MODEL SP 15

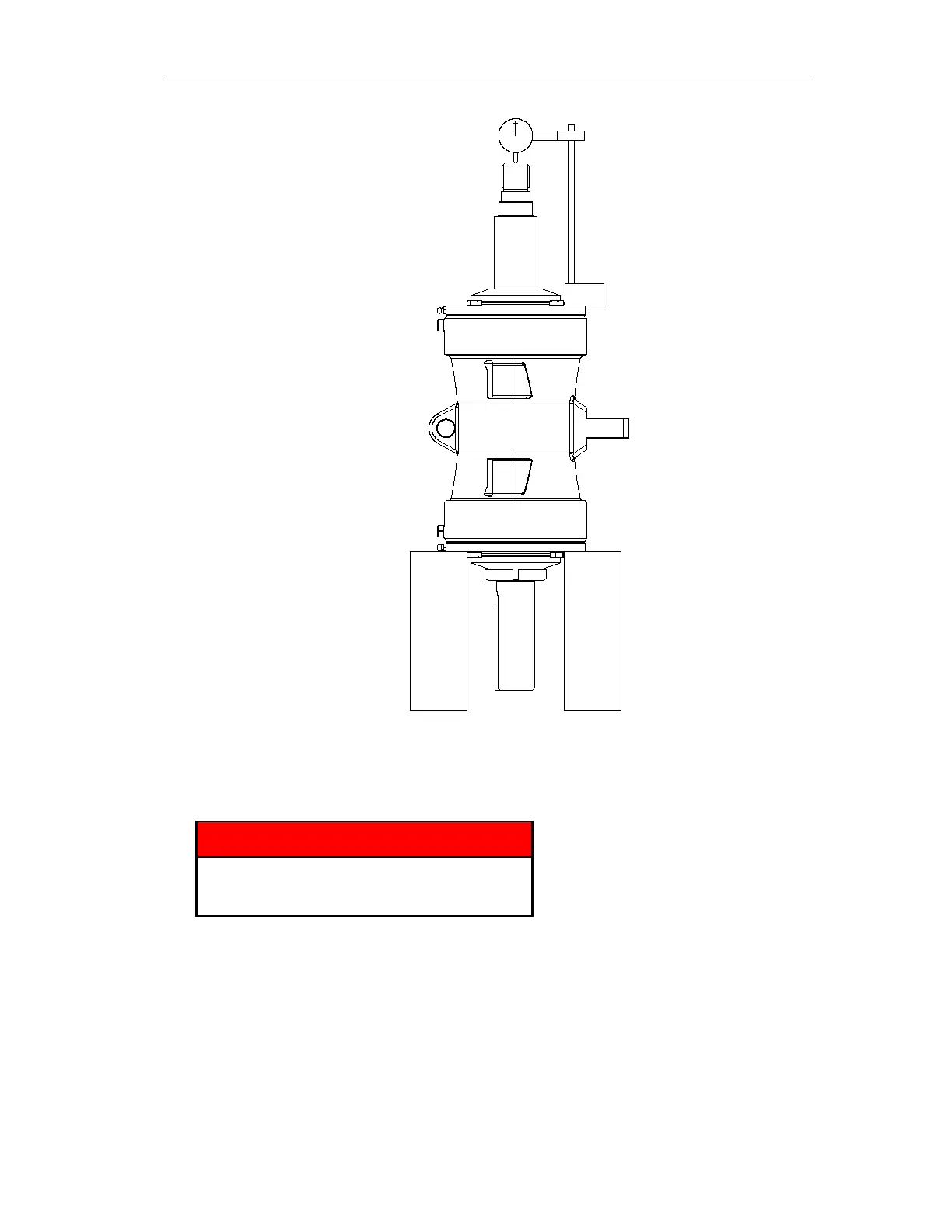

Fig. 4
21. To check Bearing Assembly(2) end play place assembly on blocks with keyed
end down. (See Fig. 4) be sure to secure Bearing Assembly(2) from tipping.
WARNING!
Secure Bearing Assembly(2) when
checking end play to avoid personal injury.
22. Secure dial indicator to the Bearing Assembly(2) so that the axial movement
between the housing and the end of the shaft can be measured.
23. Lift shaft up and down to observe the maximum and minimum readings on the
dial indicator repeating several times to ensure proper reading. Record the
reading to check with the values in Table 6.
