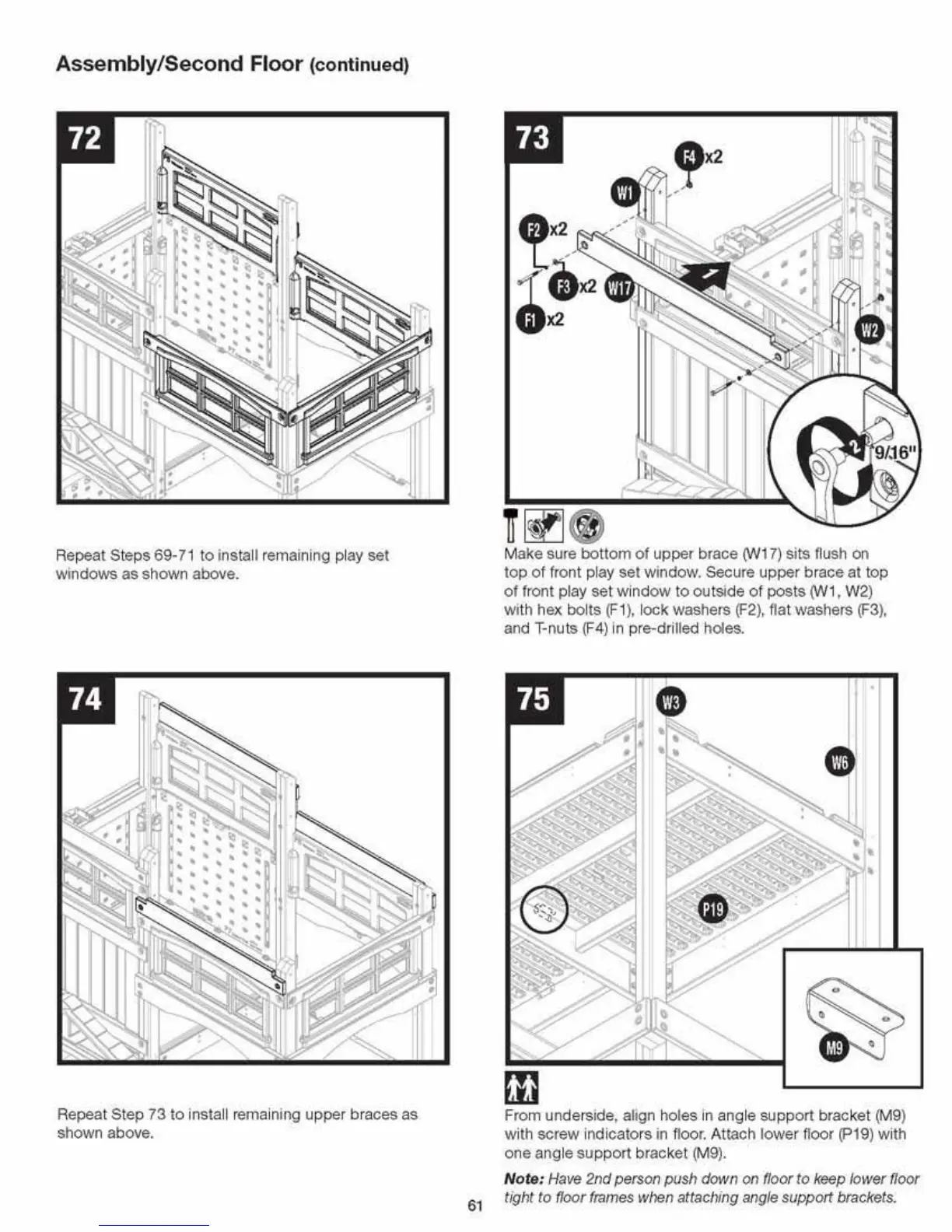

Assembly/Second Floor (continued)
Repeat Steps 69-71
to
install remaining play set
windows
as shown above.
Repeat Step 73
to
install remaining upper b races
as
shown above.
61
Make sure
bottom
of
upper brace (W17)
sits
flush on
top
of front play set window. Secure
upper
brace
at
top
of
front play set window
to
outside
of
posts
(W1, W2)
with
hex bolts (
F1
),
lock washers
(F2),
ffat washers
(F3),
and T-nuts
(F4)
in pre-drilled holes.
m
From
unde
rs
id
e, align holes
In
angle support bracke t (M9)
with
screw
indicators in floor. Attach lower floor (P19) with
one
angle
support
bracket (M9).
Note:
Have
2nd person push
dtYWn
on floor to
keep
lower floor
tight to floor
frames
when attaching
angle
support brackets.
