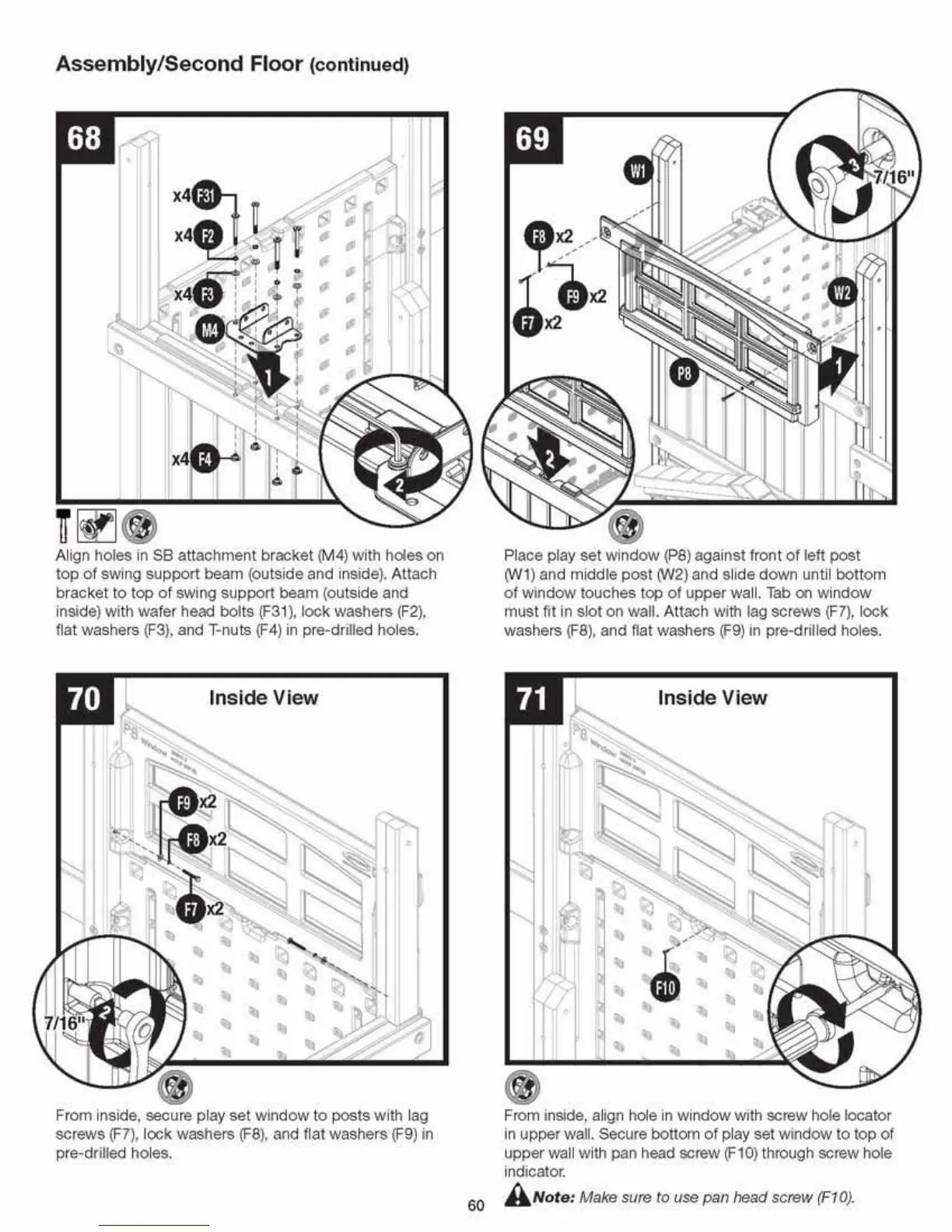

Assembly/Second Floor (continued)
'
~*
Align
holes
in SB attachment bracket (M4) with holes
on
top
of
swing
support
beam
(outside and inside). Attach
bracket
to
top
of
swing support
beam
(outside and
inside) wi
th
wafer
head
bolts
(F31),
lock
washers (F
2)
,
fl
at
washers (F3), and T-nuts (F4) in pre-drilled
ho
les.
Inside
View
From inside, secure p lay
set
wmdow
to
posts
with
lag
screws
(F7), l
ock
washers (F8), and flat washers (F9) in
pre-drilled
ho
les.
Place play
se
t
window
(P8) against front
of
left
post
(W1)
and middle
post
(W2) and sli
de
down
until
bottom
of
wi
ndow
touches top
of
upper
wa
ll. Tab on
window
must
fit
in
slot
on
wall. Attach wi
th
tag screws (F7), l
ock
washers (F8),
and
flat washers
(F9)
m pre-drilled
ho
les.
Inside
View
From inside, align
ho
le in
window
with screw hole locator
in upper wall. Secure bottom
of
play
set
wi
ndow
to
top
of
upper wall with pan head screw
(F
10) through screw hole
indicator.
60
A Note: Make sure
to
use
pan
head
screw
(F10).
To Next Page
