Sunfar E500-2S0015(B) User Manual

52 Function Parameter Table
E500 Series Universal Low-Power Inverter
This functional parameter group is used to flexibly set user desired V/F curve.
See figure 6-15.

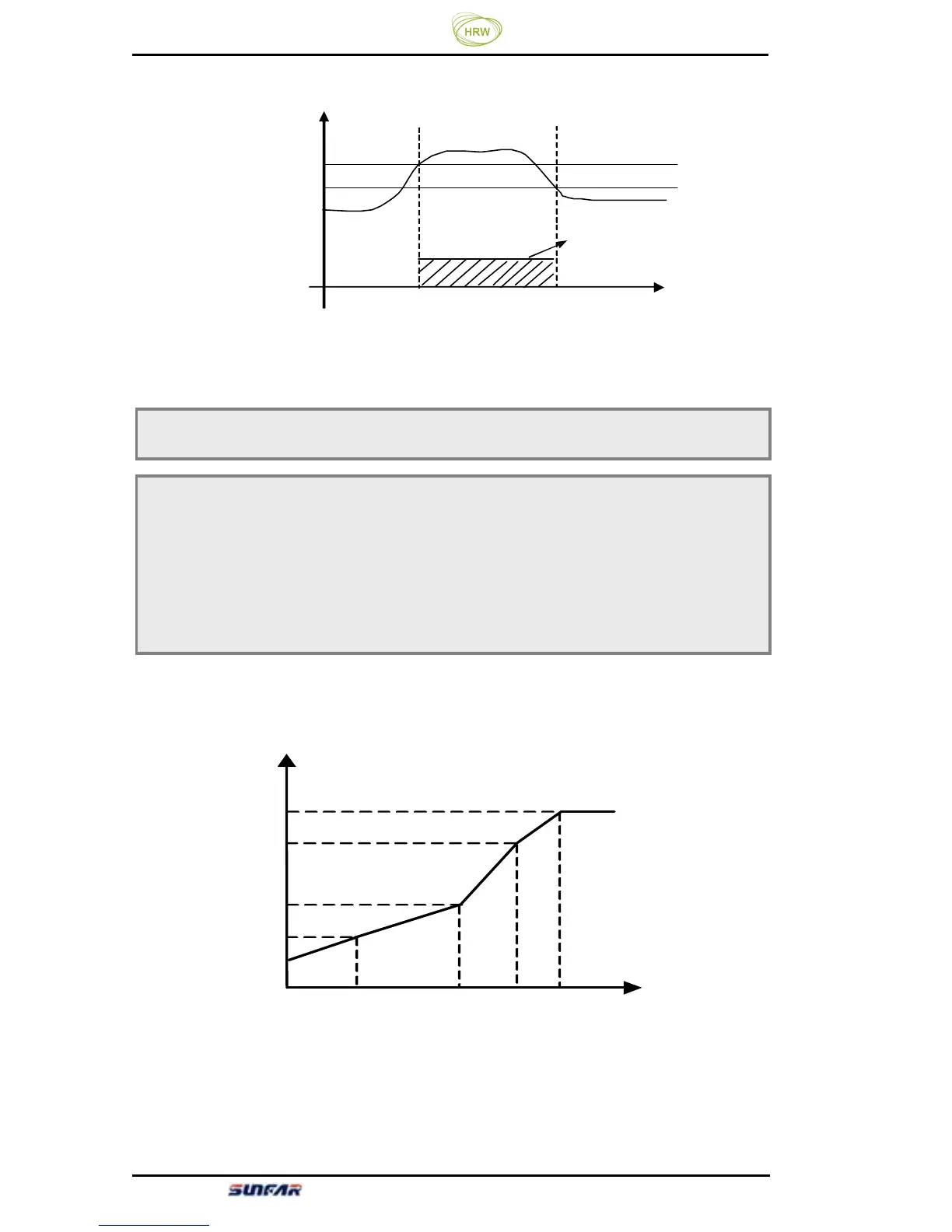

Figure 6-14 Dynamic Braking
Fi
g
ure 6-15 Settin
g
of V/F Customized Curve
F2.09 ~ F2.10 Reserve
F2.11 V/F frequency 1 Setting range: 0.0~[F2.13]
F2.12 V/F voltage 1 Setting range: 0.0~[F2.14]
F2.13 V/F frequency 2
Setting range: [F2.11]~[F2.15]
F2.14 V/F voltage 2 Setting range: [F2.12]~[F2.16]
F2.15 V/F frequency 3
Setting range: [F2.13]~[F0.12]
F2.16 V/F voltage 3 Setting range: [F2.14]~[F0.13]
频率
电压
[F2.16]
[F2.14]
[F2.12]
[F0.11]
[F2.11]
[F2.13]
[F2.15]
F[0.13]
[F0.12]
Frequency
Vo l t a g e
制动单元动作
时间
直流侧
电压
[F2.08]
[F2.08]-50V
Braking unit action
DC side voltage
[F2.08]
[F2.08]-50V
Time
HRW Limited
admin@hrw.hk
www.hrw.hk
