Sunfar E500-2S0015(B) User Manual

2 Product Introduction
E500 Series Universal Low-Power Inverter
操作面板
壳体
控制回路电缆入口
主回路电缆入口
底部安装孔
底部导轨扣
底部安装孔
主回路电缆入口
控制回路电缆入口
壳体
操作面板
1.4 Product technical indicators and specifications
Power range of E500 series: 2S0004 (B) ~ 2S0040 (B) /4T0007 (B) ~
4T0040 (B).
Technical index and typical function of E500 series
Input
Rated voltage,
frequency
Three phase (4T# series)
380V 50/60Hz
Single phase (2S# series)
220V 50/60Hz
Allowed variation range
of voltage
300V ~ 460V 180V ~ 260V
Output
Voltage 0 ~ 380V 0~220V
Frequency 0.0~400Hz
Overload capacity
110%--long term; 150%--1 minute; 180%--2
second
Control mode VVVF space voltage vector
Control
Characte-
ristics
Frequency
set
resolution
Analog
terminal input
0.1% of the maximum output frequency
Digital setting 0.1Hz
Frequency
precision
Analog input Within 0.1% of the maximum output frequency
Digital input Within 0.1% of the set output frequency
V/F curve
(Voltage frequency
characteristics )
Reference frequency can be set within 5～400Hz,
and multi-node V/F curve can be randomly set.
Torque increase Manual setting: 0.0～20.0% of rated output.

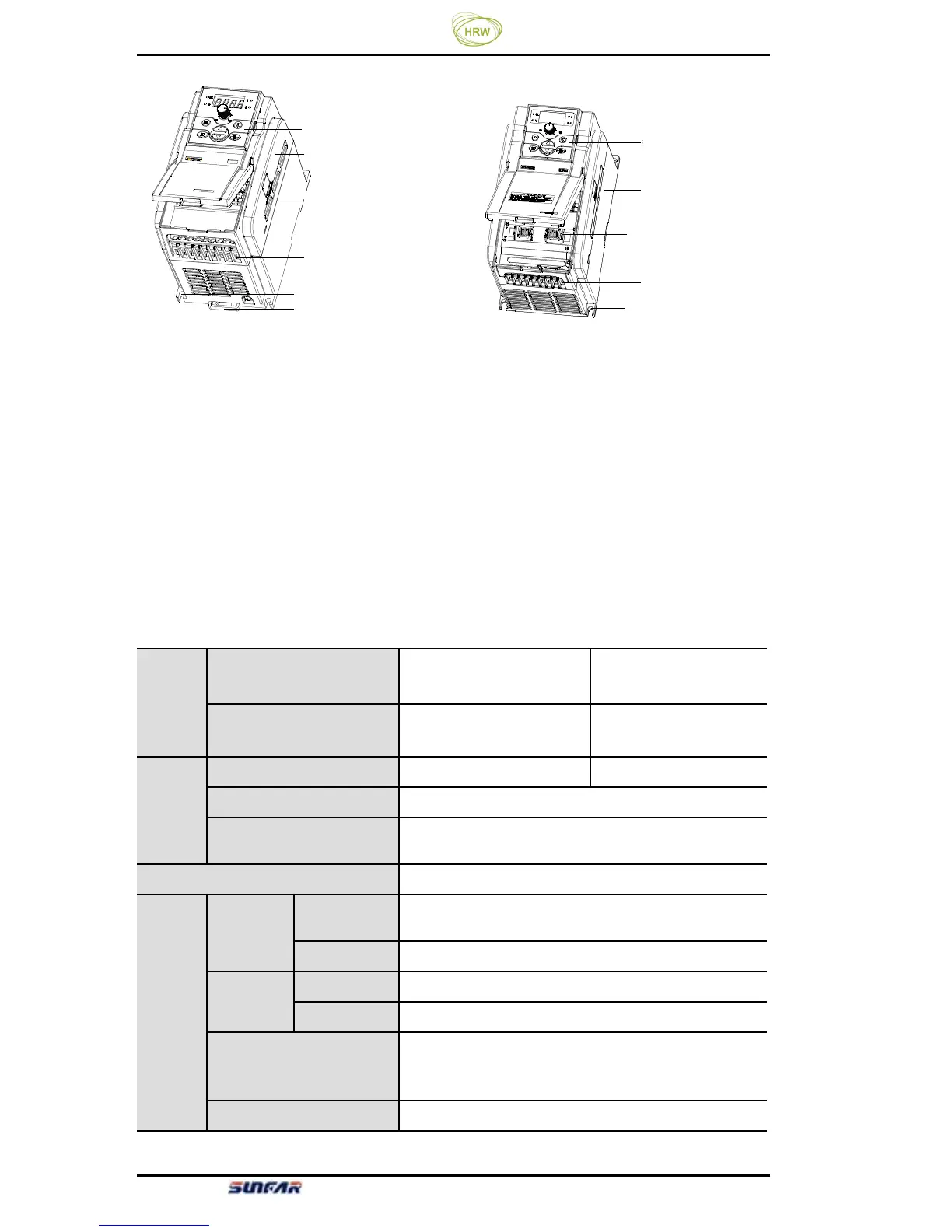

Figure 1-2 Appearance and Component
N
ame of Category Ⅱ Inverters
Applicable models:
E500-2S0015(B)～E500-2S0022(B)/
E500-4T0007(B)～E500-4T0022(B)
Figure 1-3 Appearance and Component
N
ame of Category III Inverters
Applicable models:
E500-2S0030(B)～E500-2S0040(B)/
E500-4T0030(B)～E500-4T0040(B)
Operating panel
Housing
Housing
Operating panel
Control loop cable inlet
Control loop cable inlet
Main loop cable inlet
Main loop cable inlet
Bottom installation hole
Bottom installation hole
Bottom guide rail fastener
