Operating Panel 15
E500 Series Universal Low-Power Inverter
4 Operating Panel
4.1 Function description of keys
Keys Function Description
Digital
display
Display the current operating status parameters and setting parameters of
the frequency inverter.
A, Hz, V
Display the measurement unit corresponding to the main digital display
data.
RUN
Operating indicator, indicating the inverter is running, and there is output
voltage at the output terminals U, V and W.
Data modification key. It is used to modify functional code or parameters.
At the status monitoring mode, if the frequency command channel is at
the digital setting mode ([F0.00]=0), press this key to directly modify the
frequency set value.
Back key. At the normal monitoring mode, press this key to enter the
non-normal monitoring mode/monitoring parameter inquiry mode to see
the operating status parameters of the inverter. At any other operating
status, separately press this key to back to the previous status.
Set key. Confirm the current status or parameter (parameters are stored in
the internal memorizer) and enter the next function menu.
ESC
SET

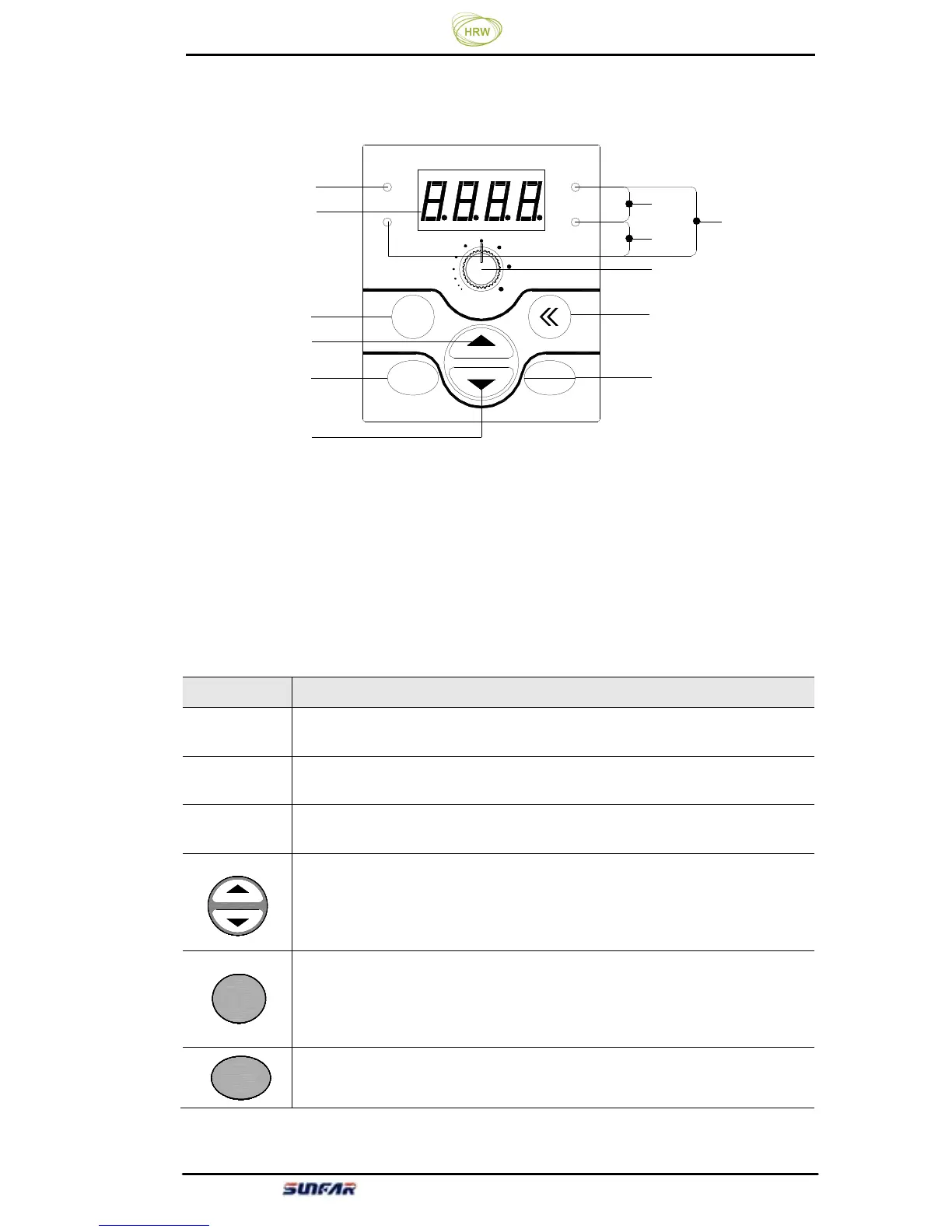

Figure 4-1 Operating Panel Sketch
Note: E500 series keyboard port can be com
