User Manual 6 Electrical Connection
23

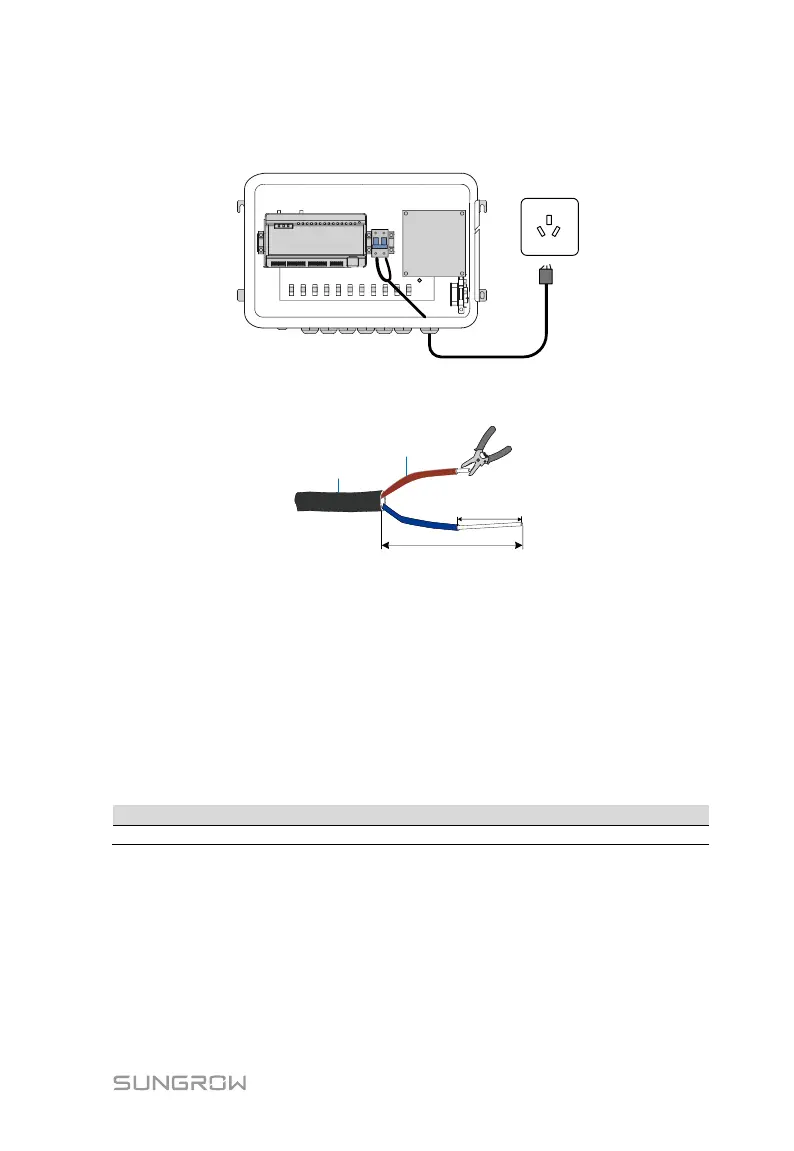

power supply cable through the waterproof terminal into the
corresponding terminal of the micro circuit breaker inside the COM100.
Step 2 Strip and connect the cable to the corresponding terminal inside the
COM100.
Ф13~Ф18mm
15mm
8~10mm
mm
2
mm
2
1 ~1.5
Step 3 Fasten the "AC (100~277V)" waterproof terminal.
6.8 External DC Power Supply Cable
The 24Vdc power supply port inside the COM100 is the "24V IN" and "24V
OUT" port on the bottom of the Logger. The rated power is 10W and the max.
power is 12W.
The COM100 can supply the connected external device with 24Vdc power.
DC cable specification:
Cable
Type
DC cable
Outdoor ultraviolet protection STP
Step 1 Loosen an unused waterproof terminal on the bottom of the COM100.
Step 2 Lead the DC cable through the waterproof terminal. Strip the cable jacket
and insulation layer of the DC cable by appropriate length with a wire
stripper.
