Sungrow COM100D User Manual

6 Electrical Connection User Manual
24
Ф6~Ф18mm
15mm
2
1~1.5mm
8~10mm

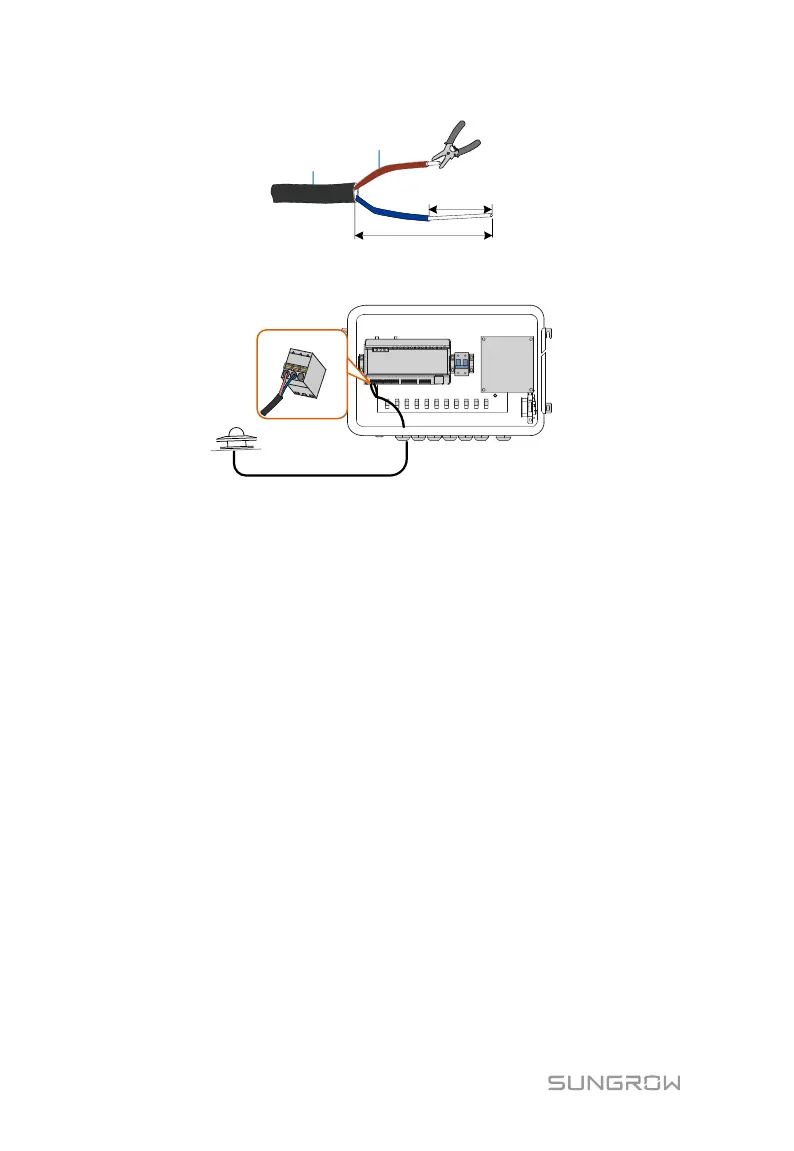

Step 3 Insert the stripped DC cable into the port "24V IN" and "24V OUT" of the
Logger1000.
24V IN 24V OUT
Electrical equipment
Step 4 Fasten the waterproof terminal.
6.9 Inspection after Cable Connection
Conduct the following operations after finishing electrical cable connection:

Check that all cables are correctly connected.

Gently pull the cables backwards to ensure they are firmly in place.

Fasten all the waterproof terminals and seal gaps at the bottom of the
terminals with fireproofing mud.

Close the front cover of the COM100 and tighten the screws.
