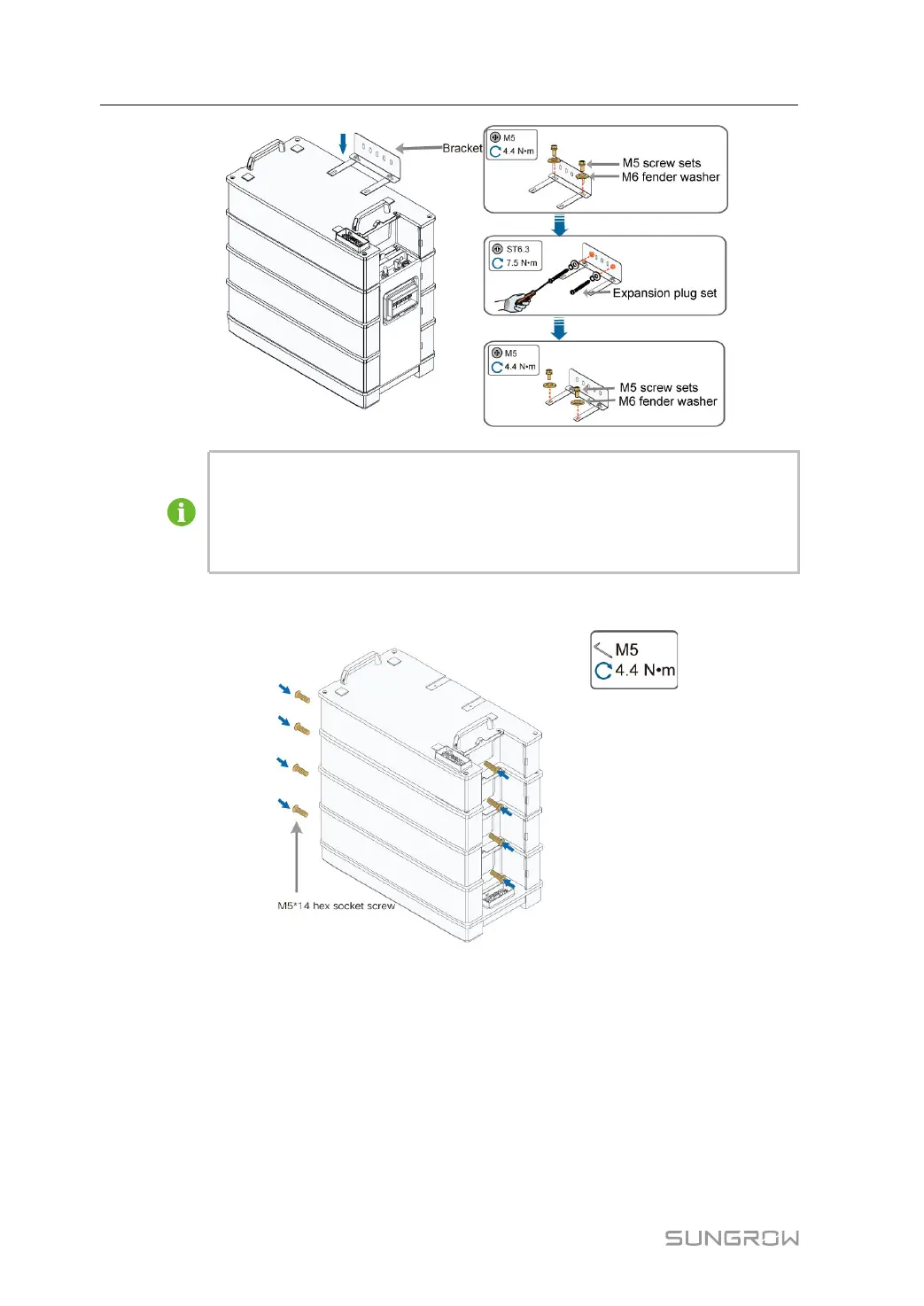

The bracket is mounted on the top battery module.
The mounting position can be fine-tuned through oval holes in the back.
Goggles and gloves are necessary when drilling holes for protection. Shield the
battery during drilling. After drilling, clean up debris in time.
step 7 Fix the battery modules with the included screws.
step 8 Connect the switch gear to the base.
4 Mounting User Manual
