6
Table 2-1 Power Level Description
TTyyppee
NNoommiinnaall OOuuttppuutt PPoowweerr NNoommiinnaall GGrriidd VVoollttaaggee
SD125HV
125kW 169kW
The device type can be found on the nameplate attached to the side of the converter.
For details, refer to "IIddeennttiiffyyiinngg tthhee CCoonnvveerrtteerr"”.
2.2.2 Appearance
The appearance of the converter is shown as follow.

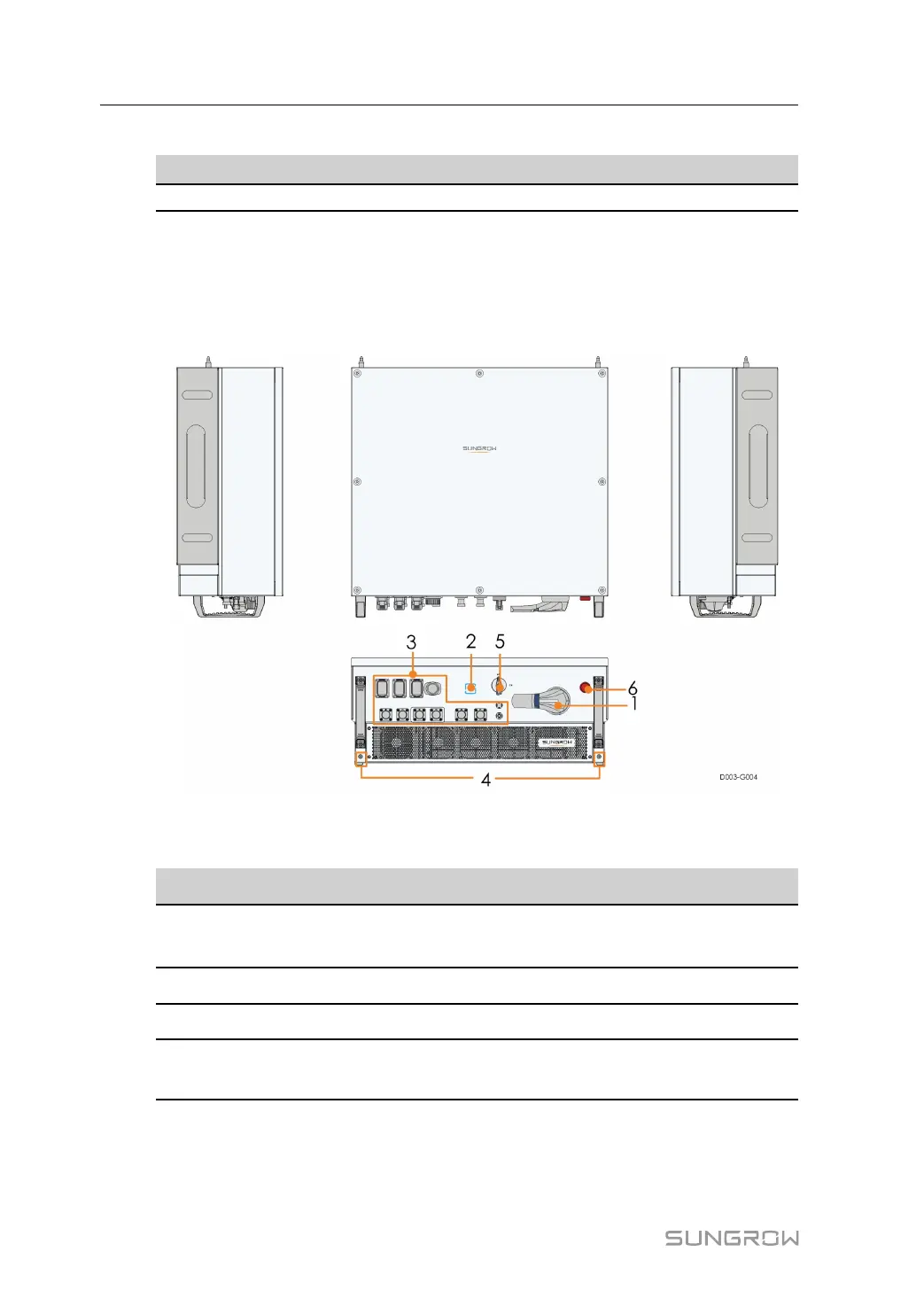

FFiigguurree 22--33 Converter appearance
*The image shown here is for reference only. The actual product you receive may differ.
NNoo.. NNaammee
DDeessccrriippttiioonn
1 DC Switch
To safely cut off the electrical connection between the inver-
ter and battery.
2 LED indicator
Indicates the present working state of the converter.
3
Wiring area
DC switches, and communication terminals.
4
Grounding
terminal
To ground the electrical protection of the equipment.
2 Product Description User Manual
