CCoo--
ddee
NNaammee RReeccoommmmeennddeedd VVaalluuee
H
Crimping
height
50mm²：9.2mm
70mm²：10.8mm
D
Sealing
ring
diameter
Choose a sealing ring that is marked 12.9-14.5 to seal the installa-
tion if the outer diameter of the cable is 12.9-14.5 mm.
Choose a sealing ring that is marked 14.5-16 to seal the installa-
tion if the outer diameter of the cable is 14.5-16 mm.
Choose a sealing ring that is marked 16-17 to seal the installation
if the outer diameter of the cable is 16-17 mm.
Step 5 Put the sealing ring and clamping claw back in order, and screw the nut.
Step 6 Handle all the converters in order, then press the unlock button on the side of the con-
nector and insert it into the terminal at the base of the converter.
-- -- EEnndd

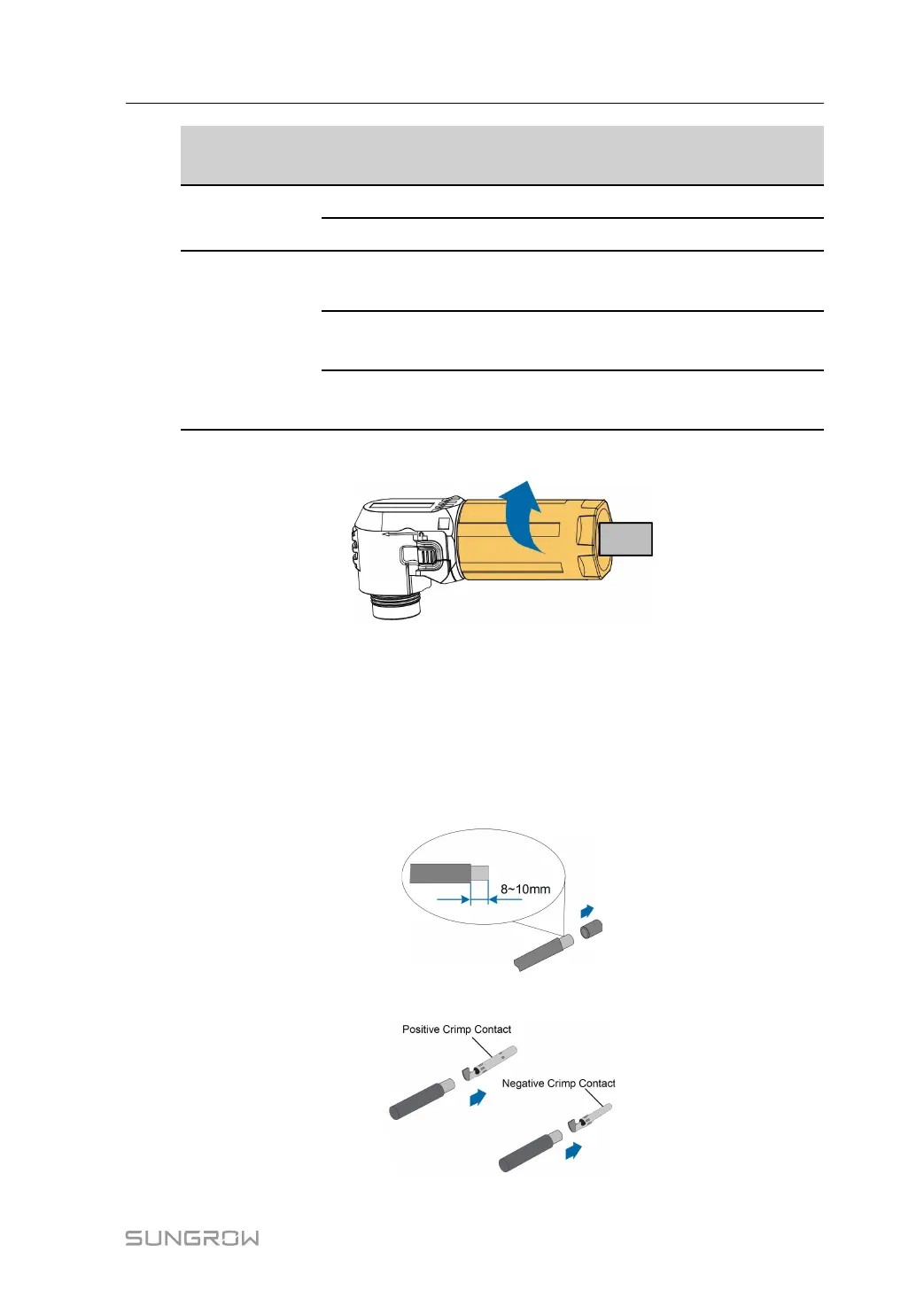

5.6 PV Connector Connection
Step 1 Strip the insulation layer of the power cable.
Step 2 Assemble the cable ends with the crimping pliers.
