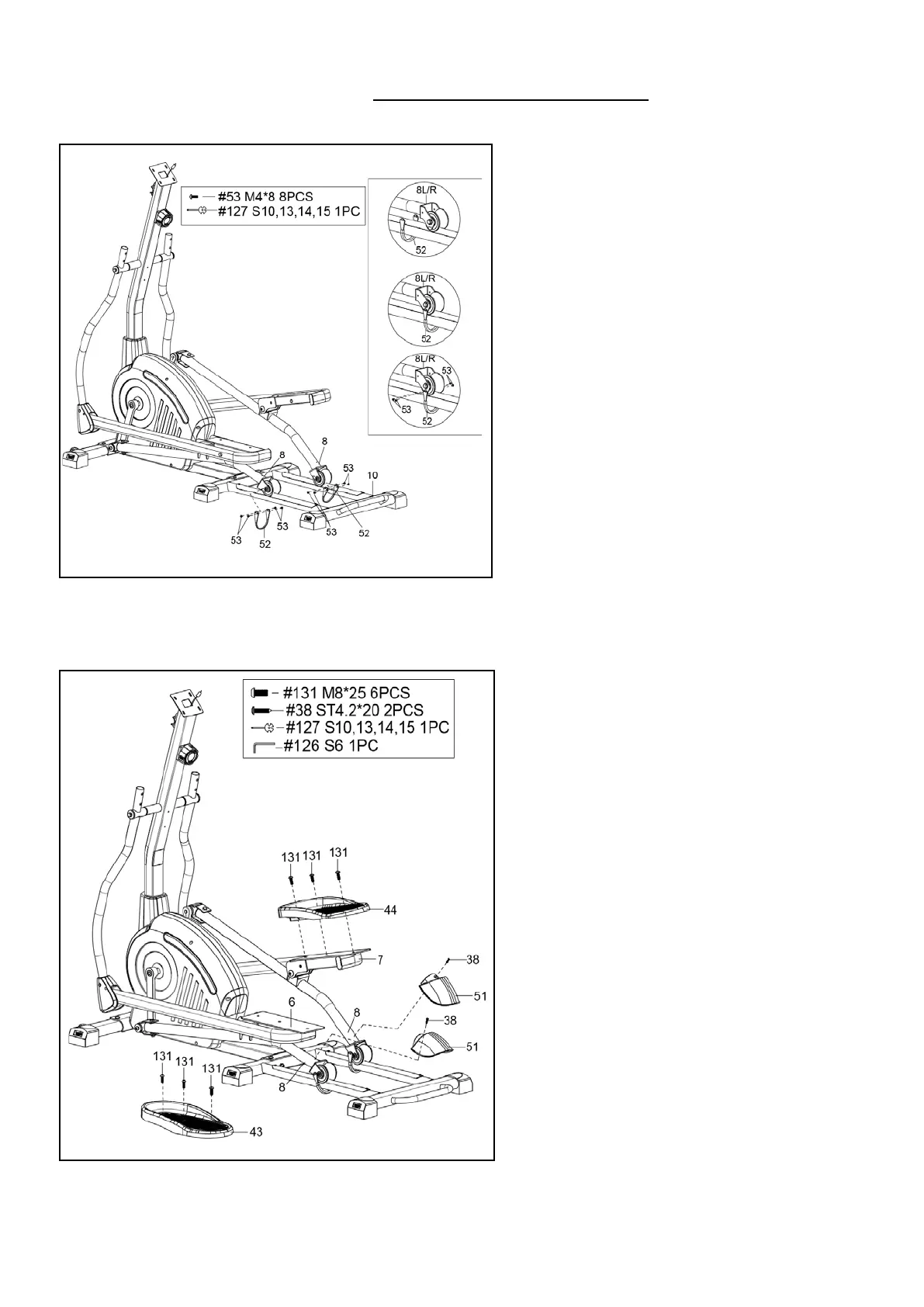

STEP 9:
Attach 2 Roller Covers (No. 51) to 2 Foot
Tube Connect Patches (No. 8) using 2
Screws (No. 38). Tighten and secure with
Spanner (No. 127).
Remove 6 Bolts (No. 131) from the Left &
Right Foot Bars (No. 6 & 7) with Allen
Wrench (No. 126).
Attach the Left & Right Pedals (No. 43 &
No. 44) onto the Left & Right Foot Bars
(No. 6 & 7) with 6 Bolts (No. 131) that
were removed. Tighten and secure with
Allen Wrench (No. 126)
STEP 8:
Remove 8 Screws (No. 53) from the ends
of 2 Foot Tube Connect Patches (No. 8)
with Spanner (No. 127).
Hoop 2 Stoppers (No. 52) under and
around the rods of the Rear Main Frame
(No. 10). Then re-attach 2 Stoppers (No.
52) to the 2 Tube Connect Patches (No.
8) with 8 Screws (No. 53)
that were
removed. Tighten and secure with Spanner
(No. 127).
Note: Make sure that Tube Connect Patch
(No. 8) can slide on the Rear Main Frame
(No. 10) smoothly and securely.
