ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-
907-8669).

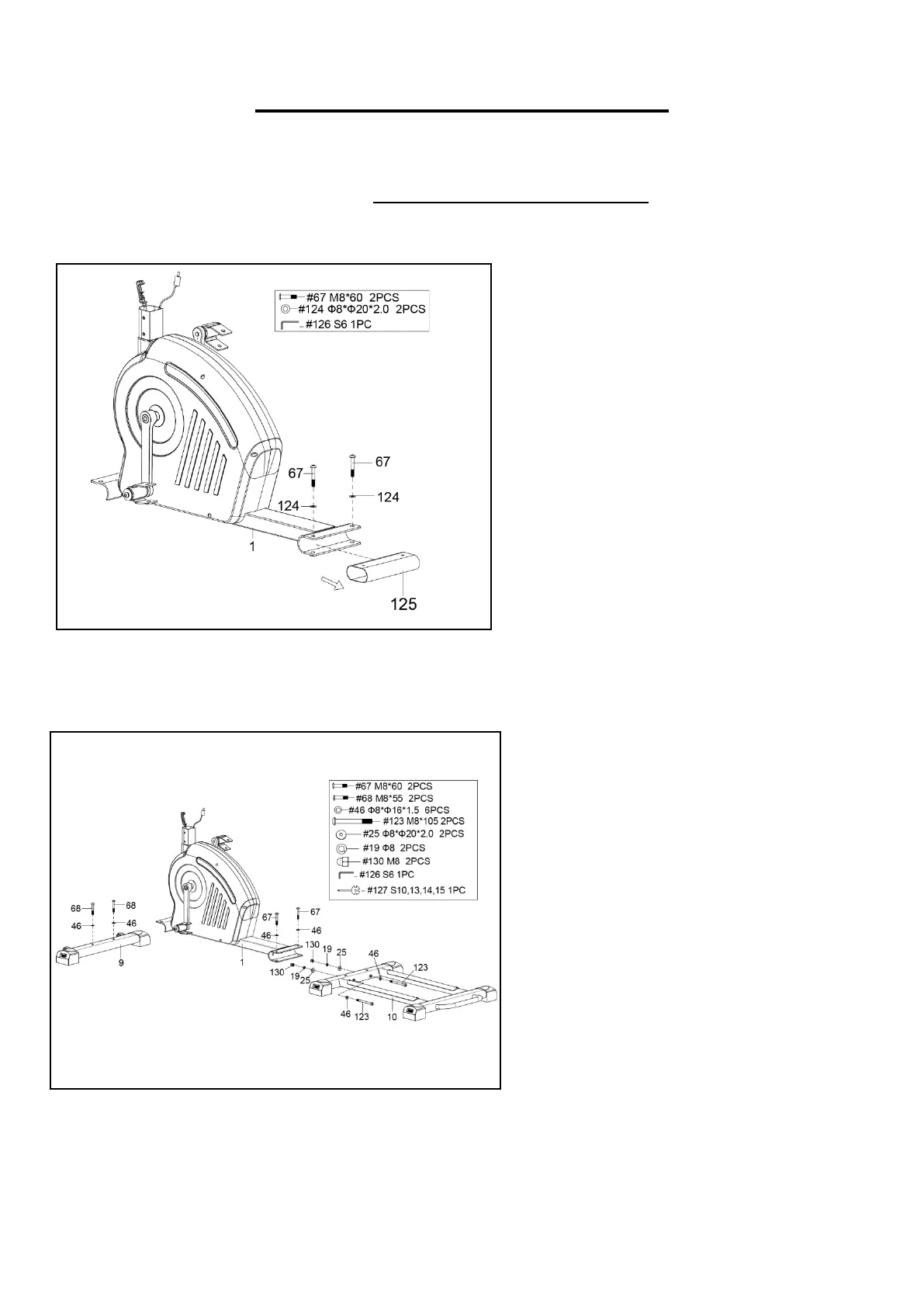

STEP 1:
Unscrew 2 Bolts (No. 67) from Main
Frame (No. 1) with Allen Wrench (No.
126). Remove 2 Plastic Washers (No.
124) and 1 Shipping Tube (No. 125) from
Main Frame (No. 1).
You may save these parts 2 Bolts (No. 67),
Plastic Washers (No. 124), Shipping
Tube (No. 125) in case you would like to
repackage and transport this equipment in
the future.
STEP 2:
Attach the Front Stabilizer (No. 9) to the
Main Frame (No. 1) with 2 Bolts (No. 68)
and 2 Washers (No. 46). Tighten and
secure with Allen Wrench (No. 126).
Attach the Rear Main Frame (No. 10) to
the Main Frame (No. 1) with 2 Bolts (No.
67), 2 Bolts (No. 123), 2 Spring
Washers (No. 19), 2 Big Arc Washers
(No. 25) 2 Nuts (No. 130), and 4
Washers (No. 46). Tighten and secure
with Allen Wrench (No. 126) and
Spanner (No. 127).
To Next Page
