Sunny SF-E320048 - Front Post

6
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-
907-8669).

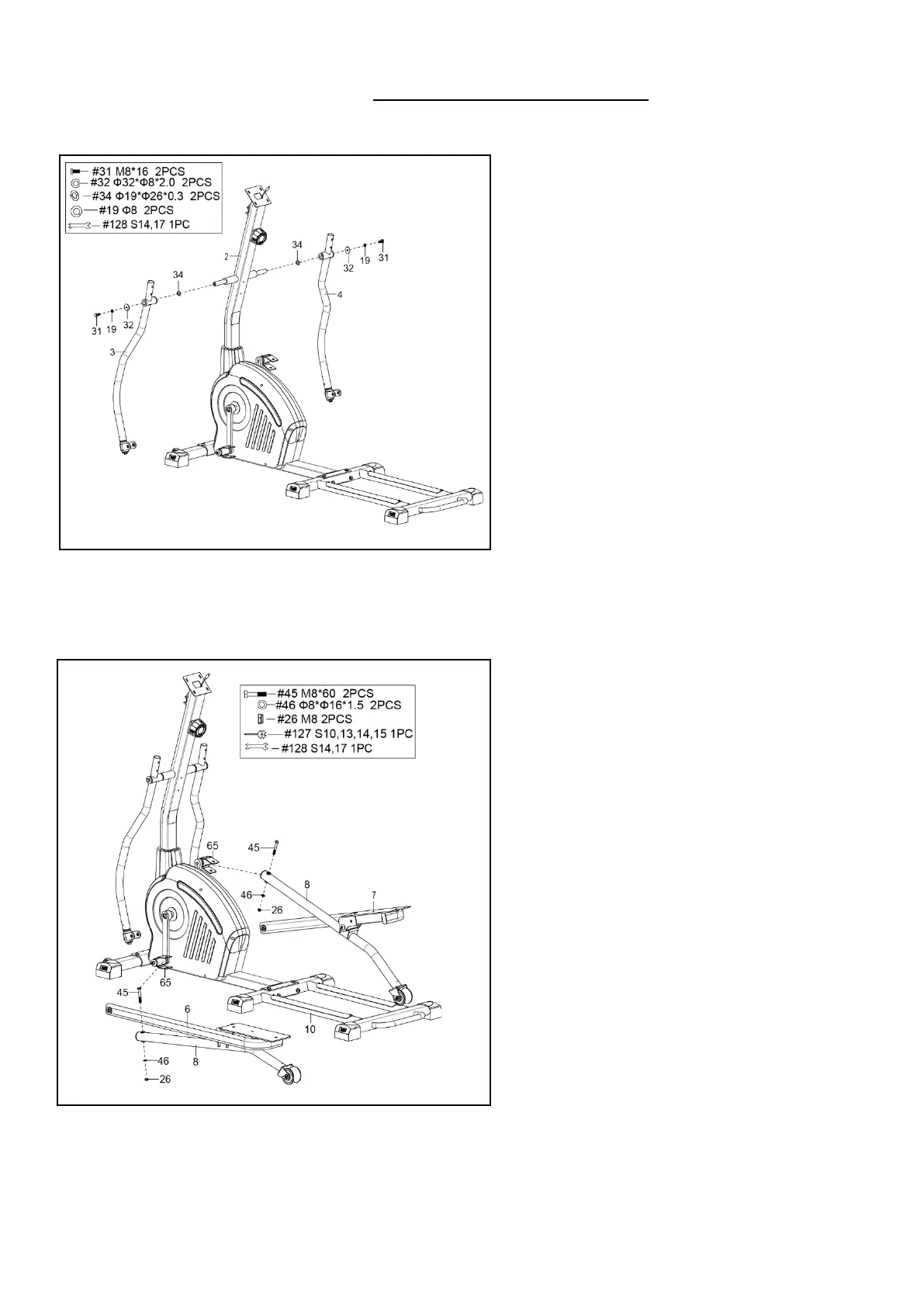

STEP 4:
Remove 2 Bolts (No. 31), 2 Spring
Washers (No. 19), 2 Big Washers (No.
32), and 2 Wave Washers (No. 34) from the
Front Post (No. 2) with Spanner (No. 128).
Attach the Left & Right Swing Tube (No. 3
& No. 4) onto the Front Post (No. 2) with 2
Bolts (No. 31), 2 Spring Washers (No. 19),
2 Big Washers (No. 32), and 2 Wave
Washers (No. 34)
that were removed.
Tighten and secure with Spanner (No. 128).
STEP 5:
Remove 2 Bolts (No. 45), 2 Washers (No.
46), and 2 Nuts (No. 26) from the 2 U
Brackets (No. 65).
Attach the 2 Foot Tube Connect Patches
(No. 8) onto the 2 U Brackets (No. 65) with
2 Bolts (No. 45), 2 Washers (No. 46), and
2 Nuts (No. 26) that were removed. Tighten
and secure with Spanners (No. 127 & No.
128).
