9
2

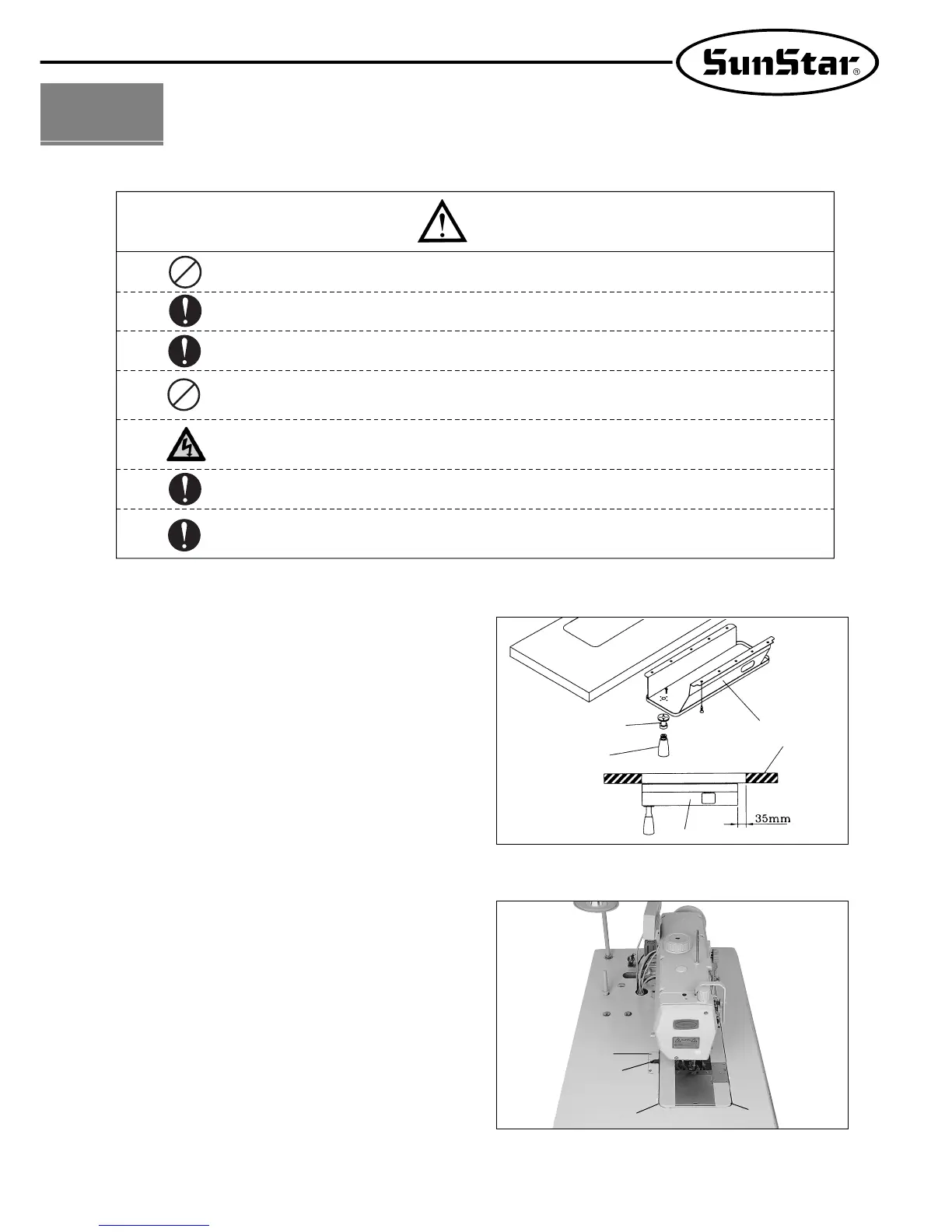

Installation
1) Oil fan
Fix oil tray① and oil tank② from the accessory box onto oil
fan③ as shown in the Figure 1, then secure the oil fan under
the table④ using six nails.
2) Machine head
Nail the rubber cushion② onto hinge rubber① and four
edges, then install the head hinge③ in the sewing machine
with the head inserted in the bed.
[ Fig. 1 ]
[ Fig. 2 ]
①
②
③
④
③
①
③
②
②
Warning
▶The machine must be installed by a trained technician only.
▶Any electrical wiring must be performed by a qualified technician or agent.
▶The machines weigh over 52 kg. As such, two or more people should carry out the installation.
▶Plug in only after the installation is complete. If the operator mistakenly steps down on the pedal
with the plug in, the machine will start automatically and can cause physical injuries.
▶Connect the ground (earth) wire. An unstable connection may result in an electric shock or a
malfunction.
▶Place the belt cover on top of the machine
▶Use both hands when bending the machine backward or returning it to the normal position.
Using only one hand can lead to physical injuries due to the weight of the machine.
