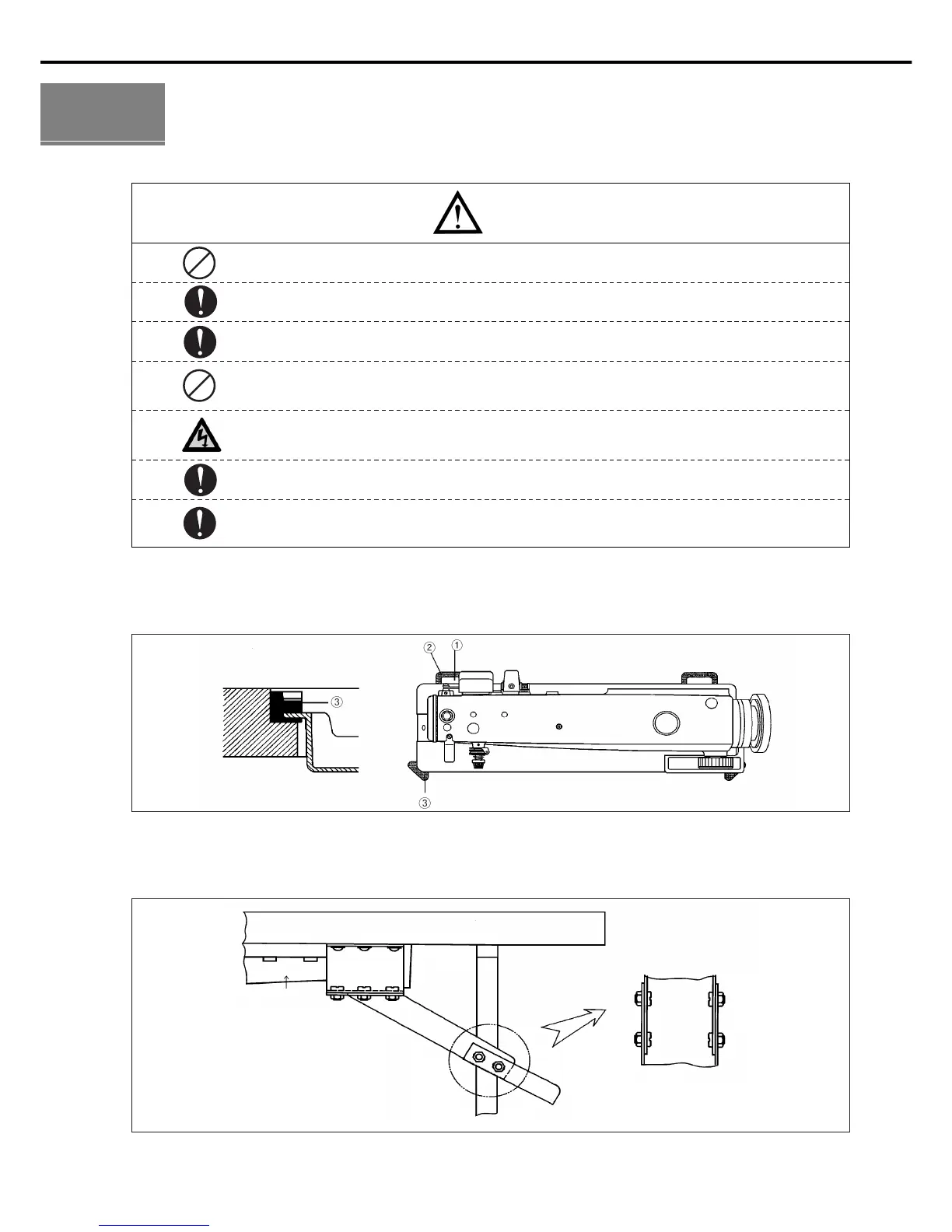

Installation
Warning
▶ The machine must be installed by a trained technician only.
▶ Any electrical wiring must be performed by a qualified technician or agent.
▶ The machines weigh over 33 kg. As such, two or more people should carry out the installation.
▶ Plug in only after the installation is complete. If the operator mistakenly steps down on the pedal
with the plug in, the machine will start automatically and can cause physical injuries.
▶ Connect the ground (earth) wire.
An unstable connection may result in an electric shock or a malfunction.
▶ Place the belt cover on top of the machine.
▶ Use both hands when bending the machine backward or returning it to the normal position.
Using only one hand can lead to physical injuries due to the weight of the machine.
1) Machine head
※ Insert the head hinge① into the bed holes and fit it to the rubber hinge②. Then stand it on the rubber cushions③ in the
four corners.
[Fig. 1]
[Fig. 2]
Use the chip discharge plate installation guidelines included in the accessory box to attach the plate to the bottom of the table
as in the figure.
2) Chip discharge plate (KM-506/530 Series)
Table
Oil fan
