(2) Installing manual knee-lifter
A. Use four fixing screws③ to attach the bracket② onto
the program unit①.
B. Fasten the bracket tightly using the three fixing
screws in the back lid of the machine. (See Fig. 8)

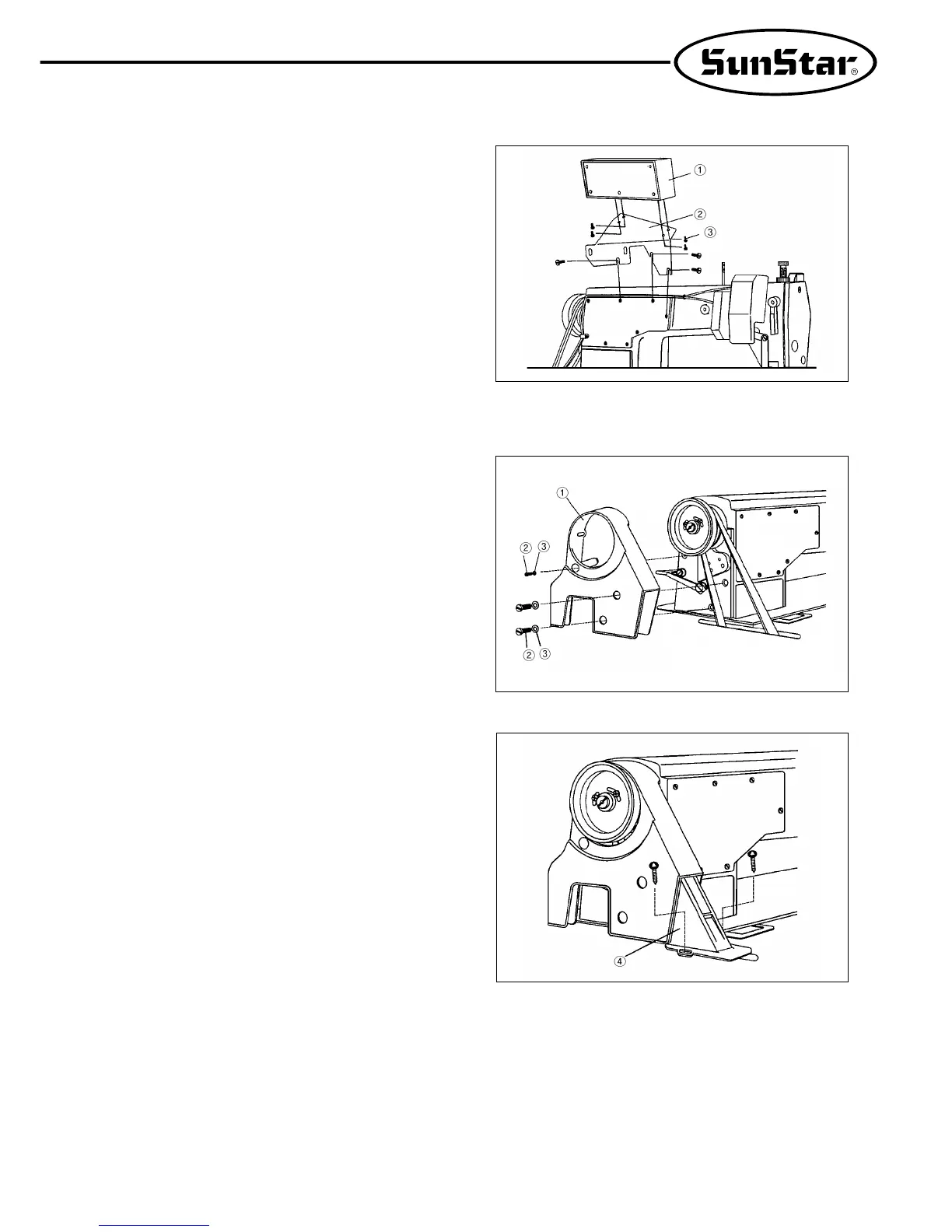

[Fig.8]
7) Belt Cover
(1) Use the clamp screws② in the machine body and the
washer ③ to fasten the belt cover “A”①. Installation of
the belt cover will be easier if the sewing machine is laid
down to an appropriate degree. (See Fig. 9)
[Fig.9]
(2) Attach the belt cover “B”④ to the table. Please exercise
caution so that the belt does not get jammed inside the
belt cover “B”④. (See Fig. 10)
[Fig.10]
To Next Page
