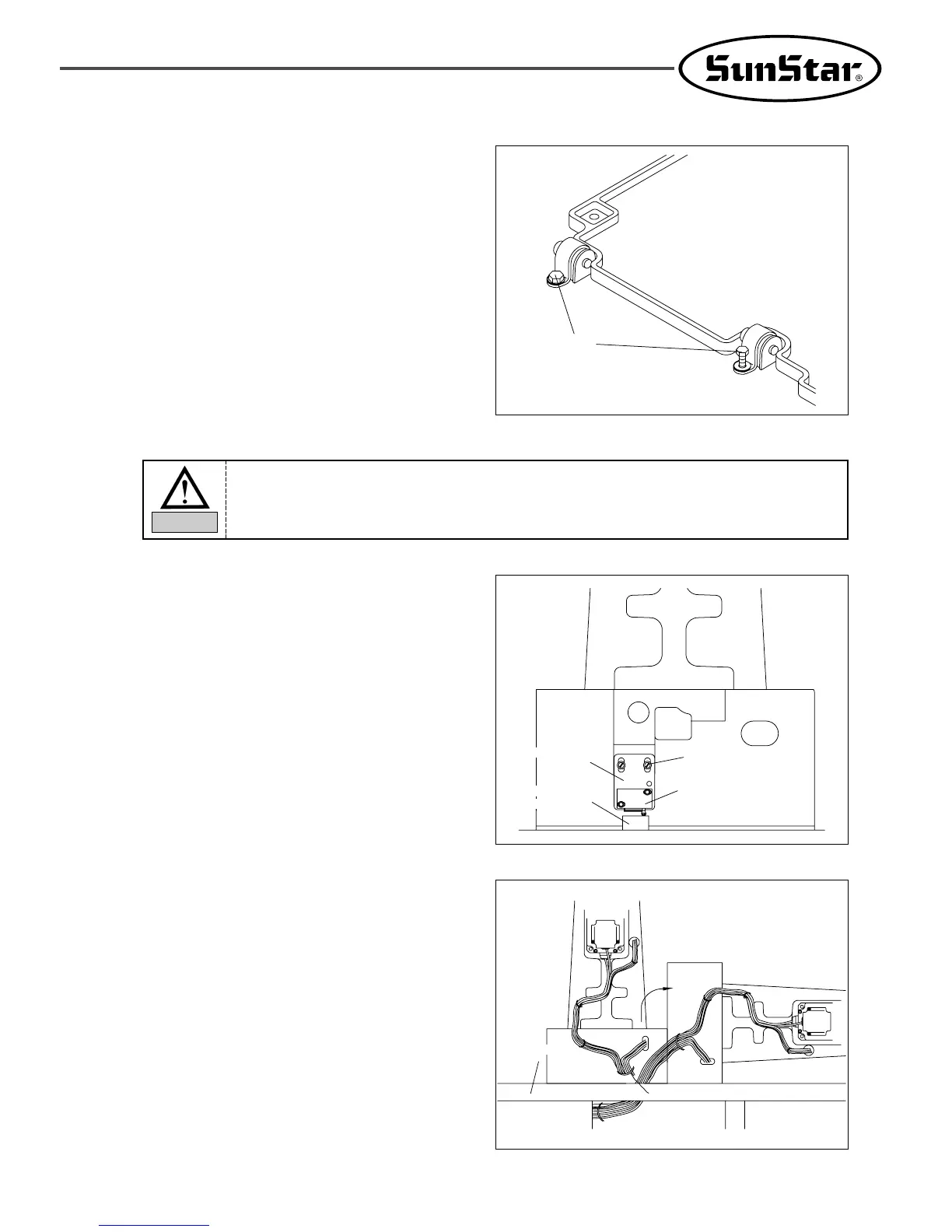

4) Since the machine has not been fully assembled, take
caution to lean the assembled machine on the floor,
and insert and fasten the bolt into the hinge to
completely fix the machine to the table.
Fixing Bolt
5) Install the safety switch and safety switch bracket on the
sewing machine, and then adjust the bracket location of
the safety switch to make sure that the attached safety
switch can properly operate.
6) Complete the cable connection between the machine and
the control box, and fix the cables under the table as in
the figure (Set the length of the cables when fixing in
consideration of the machine’s erection).
Tightening Screw
Safety Switch
To prevent safety accidents, at least two persons shall be assigned to machine installation or
machine delivery.
Caution
Safety Switch
Bracket
Safety Switch
Supporting
Rubber
Table
To Next Page
