20

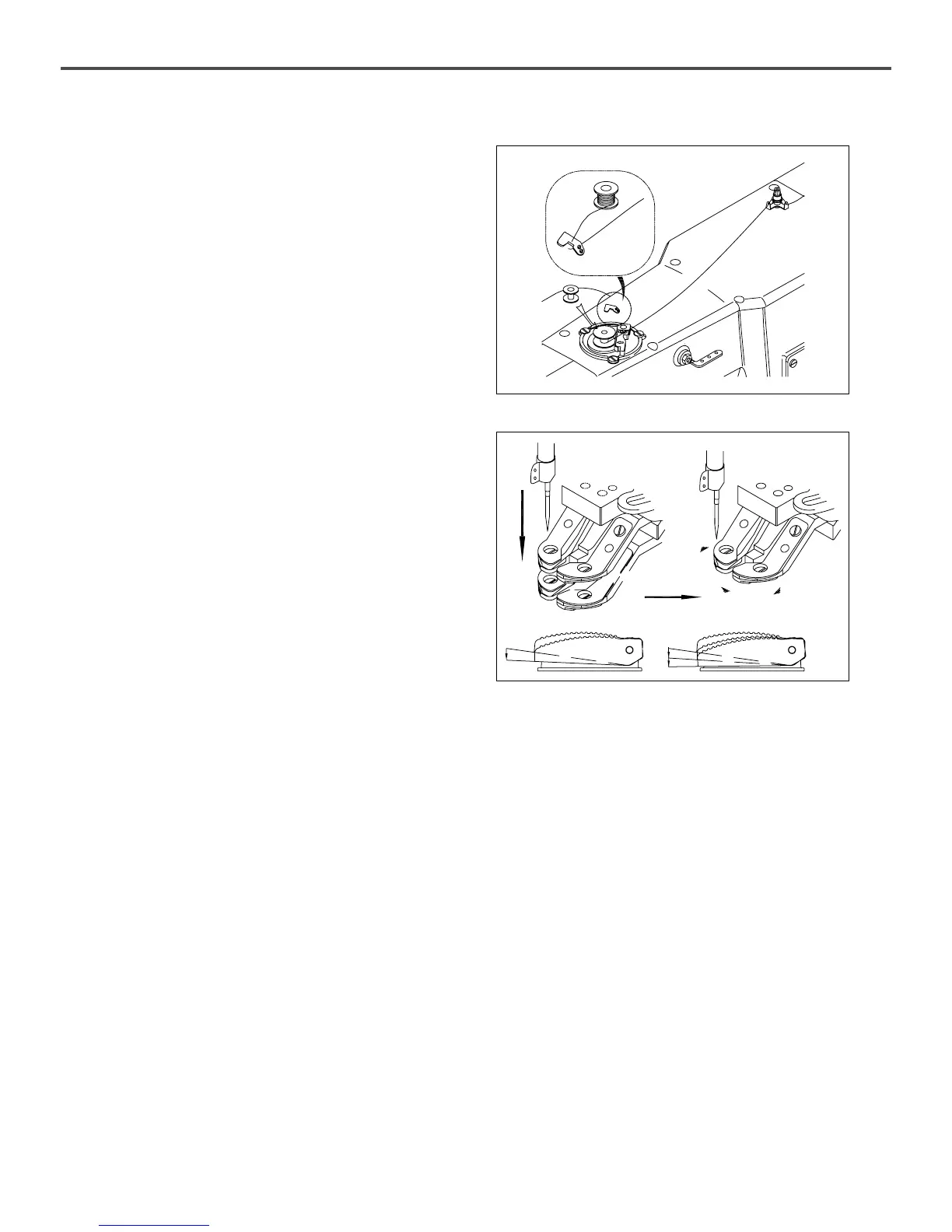

5.5) Pedal Operation
5.5.1) Pedal Operation
1) Install the pedal at the proper and most convenient
place for work.
2) When the pedal switch is pressed once, the button
clamp descends. When the foot is removed, the
button clamp ascends.
3) When the pedal switch is pressed twice, the sewing
will begin. When sewing is completed, the button
clamp will ascend.
5.4.4) Lower Thread Winding
1)
Press “Select” on OP Box and select the bobbin winder.
2)
Insert the bobbin into the thread winding shaft on the
thread winding base, which is attached to the top cover.
3) Attach the thread winding lever to the bobbin, and
press the pedal to operate the machine.
4) After the thread winding lever is separated from the
bobbin, use the thread winding blade to cut the
thread of the bobbin.
