31

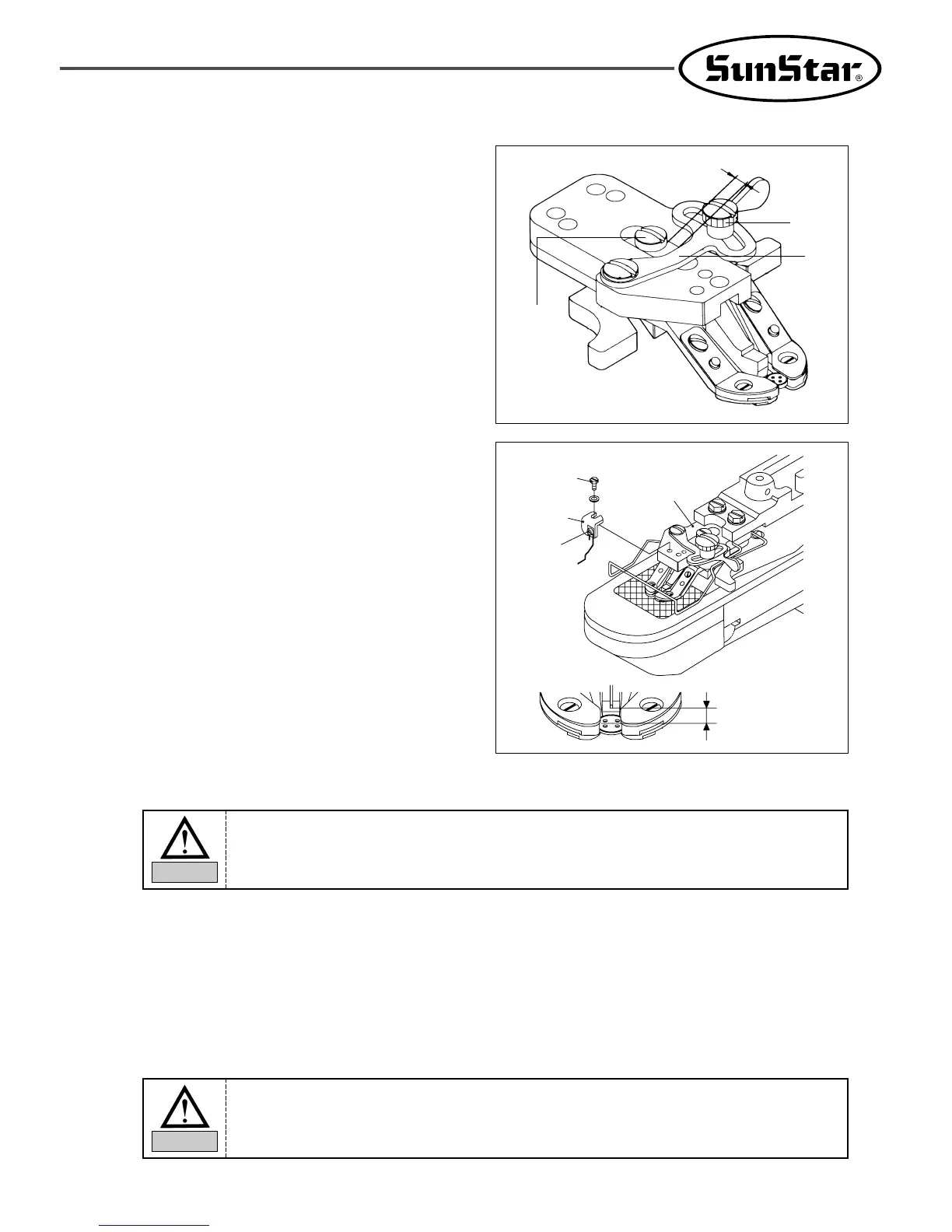

6.16) How to set up the button clamp
adjusting plate
1) Insert the button into its clamp while the machine stops,
and check that it is exactly inserted.
2) Loosen the button clamp adjusting screw①, and adjust
that the space between the button clamp adjusting plate
② and its adjusting screw③ can be 0.5~1mm.
6.17) How to attach the spacer spring plate
1) Place the spacer spring to the button’s center, adjust it to
be projected to 3.5~4mm from the button’s center to the
spring’s edge, and fix the spacer spring plate③ to the
button clamp bracket①.
2) To adjust the height of spacer spring, loosen the screw
④, place the spring to the suitable position, and fix the
screw④.
①
③
②
0.5~1.0mm
②
③
④
3.5~4mm
①
6.18) Oil Supply
6.18.1) Regular Check List
1) For the parts which need regular check, conduct cleaning and lubrication and add grease to maintain high machine
performance.
2) Test the tension of each driving belt.
3) Without regular machine check, the following problems might result:
－ Abnormal abrasion of the moving parts in a wet condition due to the insufficient lubrication and grease injection
－ Abnormal operation due to dust or foreign materials gathered at the moving parts
1) During machine check or maintenance, please observe the safety rules on machine and
electricity.
2) Make sure that the power is off before maintenance work begins.
Caution
1) If machine damage or mal-operation occurs due to the failure to clean and lubricate the machine
through regular checking, SunStar will not be held liable.
2) Adjust the cleaning cycle depending on the use conditions and environment.
Caution
