6.18.2) Oil Supply
1) Type of Lubricant

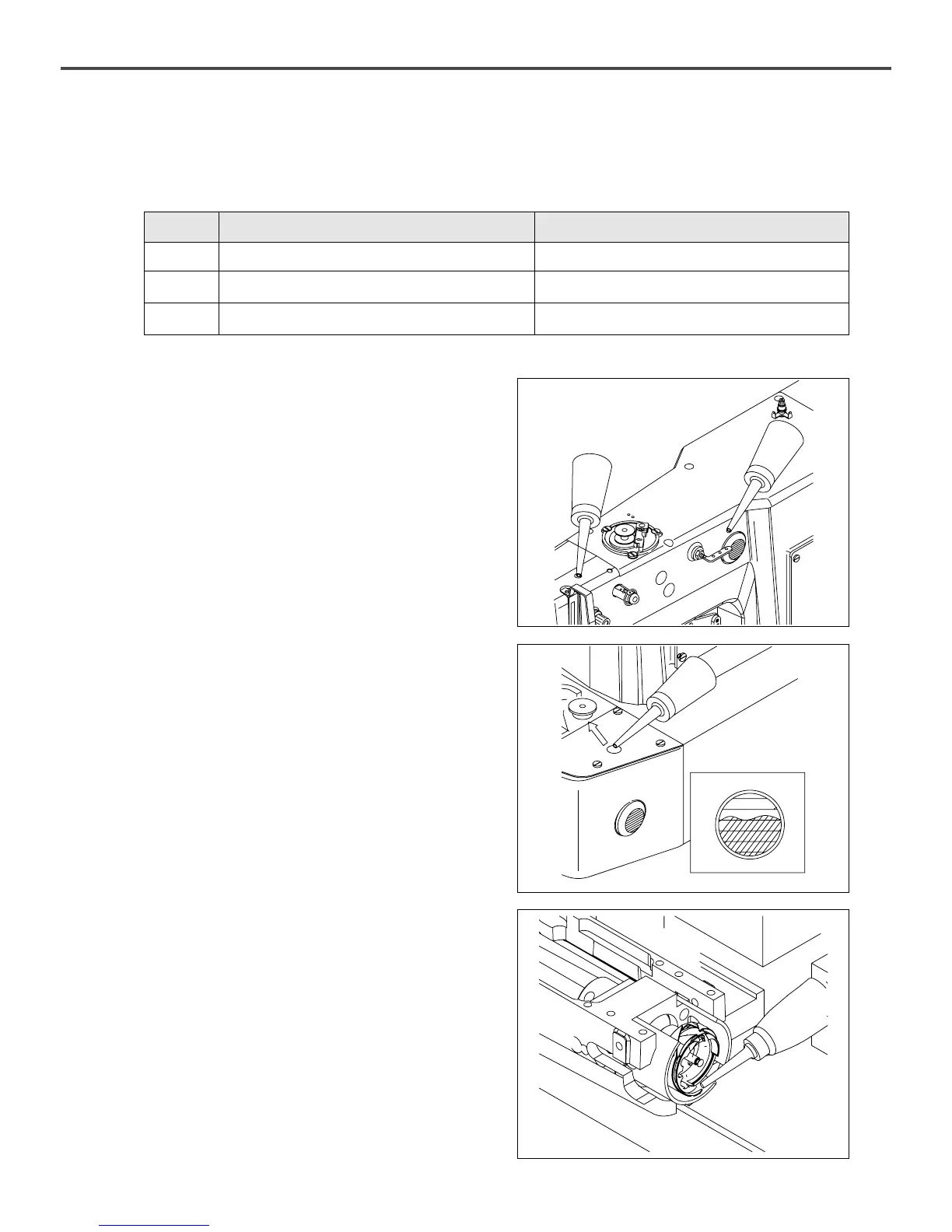

6.18.3) Oil Supply Method
1) Arm
－ Check the remaining oil volume at the oil tank
installed at the arm before supplying oil.
－ Fill up the oil tank through the oil outlet at the upper
arm.
2) Bed
－ Remove the rubber cap from the oil outlet on the table
and supply oil. When the oil supply is completed, put
back the rubber cap to close the outlet.
3) Hook
－ Remove the bobbin case and administer oil around
the hook to the extent that the area becomes wet with
oil.
No.
Parts AppliedType of Lubricant
S/M oil1 Arm, Bed, Hook
Silicon oil2 Silicon oil supply tank
Grease3 Presser Plate
To Next Page
