Machine Operation

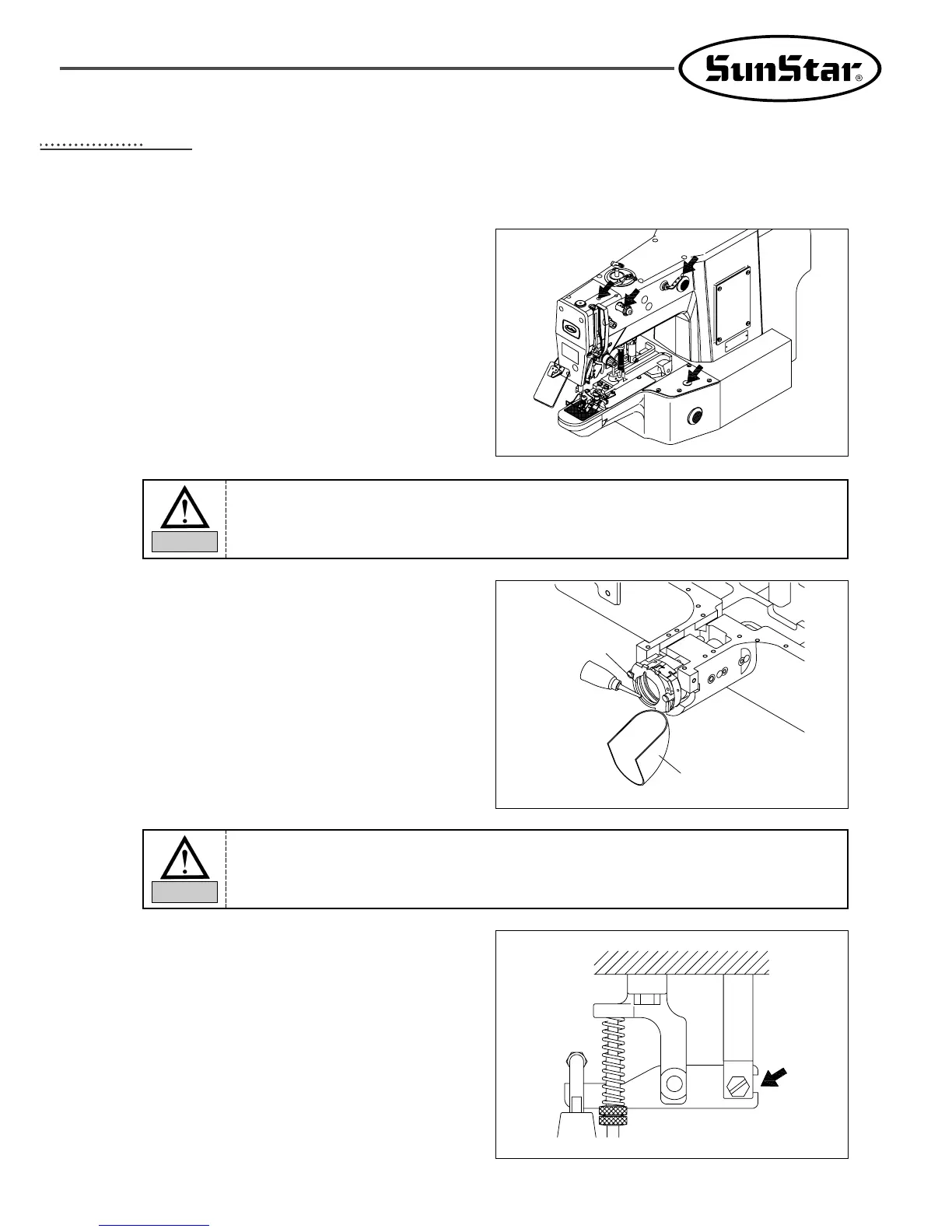

5.1) How to supply oil
1) Check the remaining oil in the oil tank in the arm and
bed, and supply the oil sufficiently on the arrowed parts
on the figure with a lubricator.
2) Open the hook cover and supply oil till the shuttle race
ring is surrounded by oil. Put the hook cover closed after
finishing. (BS : Semi-rotary)
5.2) How to grease
Please supply a little bit of grease to the part marked with an
arrow. If too much grease is supplied, the button clamp does
not smoothly move up or down, and the error message [“Er
05”] is displayed.
Shuttle Race Ring
Hook Cover
Be sure to supply oil when operating the machine for the first time and when the machine has not
been used for a long time.
Caution
For safety, keep the hook cover closed during operating.
