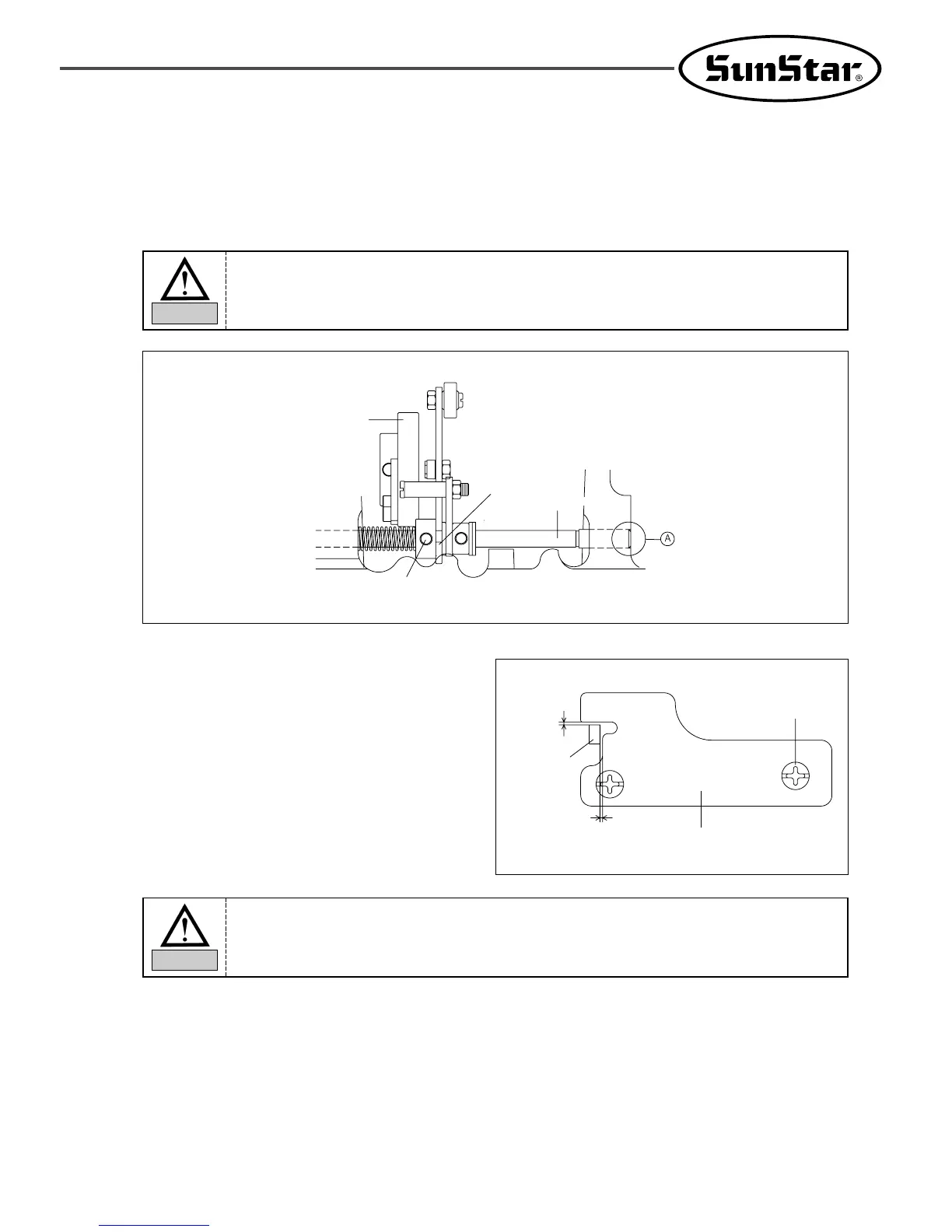

6.9.3) Trimmer Shaft Position Setting
－ Loosen the tightening screw for the trimmer driving link and the tightening screw for the trimmer shaft collar.
－ Make the cross-section of the trimmer shaft touch the A section of the arm.
－ Fasten the tightening screw.
Trimmer Cam
Tightening Screw
Trimmer
Drive Link
6.9.4) Link Stopper Position Setting
－ When the trimmer is not in operation, loosen the
tightening screw for the trimmer drive link stopper
and set the distance between the trimmer drive link
and the trimmer drive link stopper notch to be
0.3mm.
Tightening Screw
0.3mm
0.3mm
Trimmer Drive Link Stopper
Trimmer
Drive Link
If the position is not properly set, the trimmer operation might be faulty or the parts might be stuck
with each other.
Caution
Trimmer Shaft
If the position is not properly set, the trimmer operation might be faulty or the parts might be stuck
with each other.
Caution
