SunStar SWF/C-UH1508-45 User Manual

9-3
9-2) CHANGING FUSE IN M/C WITH MORE THAN 12 HEADS
Refer to the table below and fill the exact amount of fuse when changing fuse in the control box.

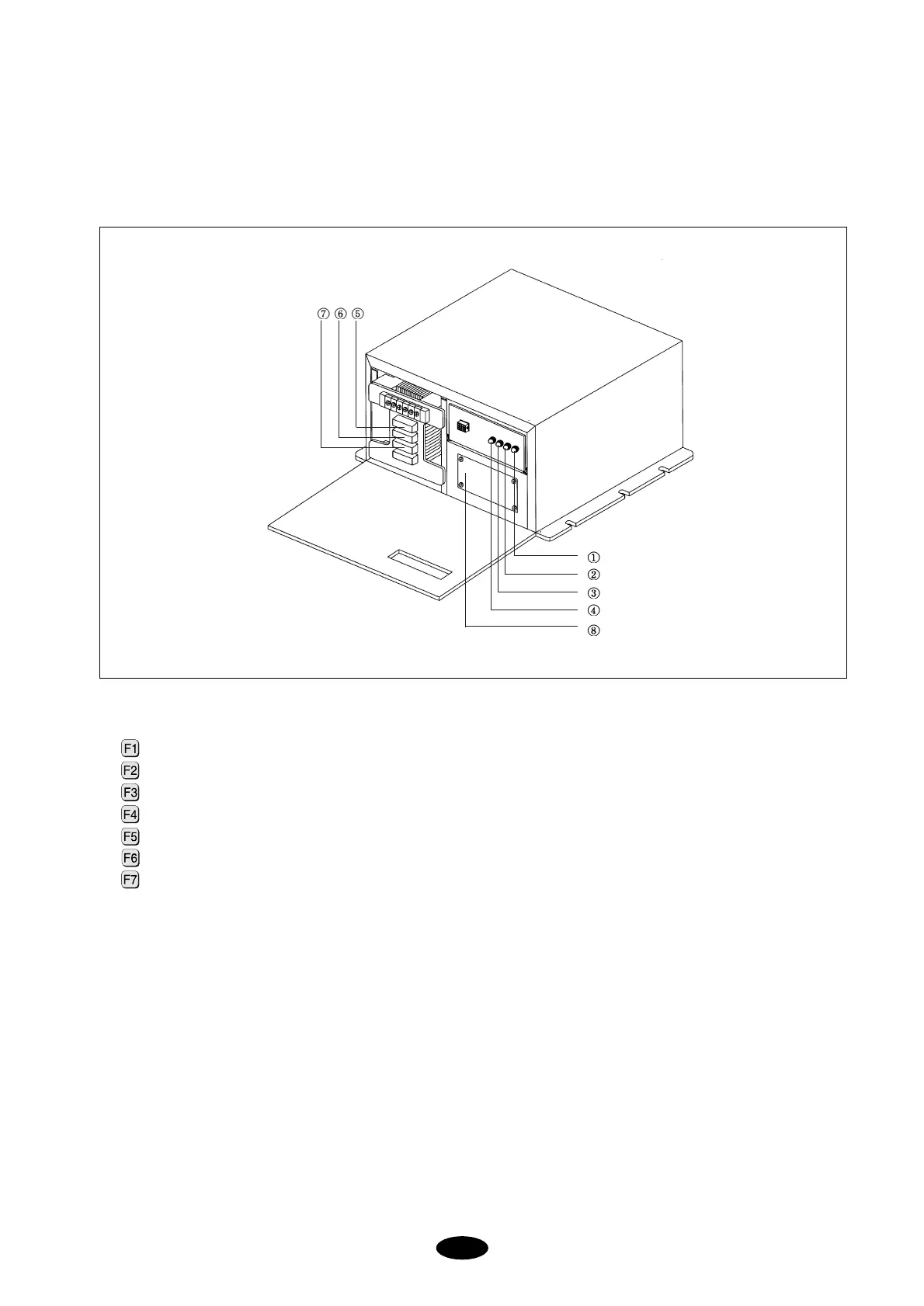

[Inside Control Box]
① -250V 15A : Fuse for jump solenoid
② -250V 15A : Fuse for jump solenoid
③ -250V 15A : Fuse for wiper solenoid
④ -250V 15A : Fuse for wiper solenoid
⑤ -250V 1A : Fuse for color change motor
⑥ -250V 2A : Fuse for fluorescent light
⑦ -250V 1A : Fuse for external 220V input (winder, tape reader, etc.), SWF-NET1
⑧ SMPS power
