SunStar SWF/C-UH1508-45 User Manual

11-12

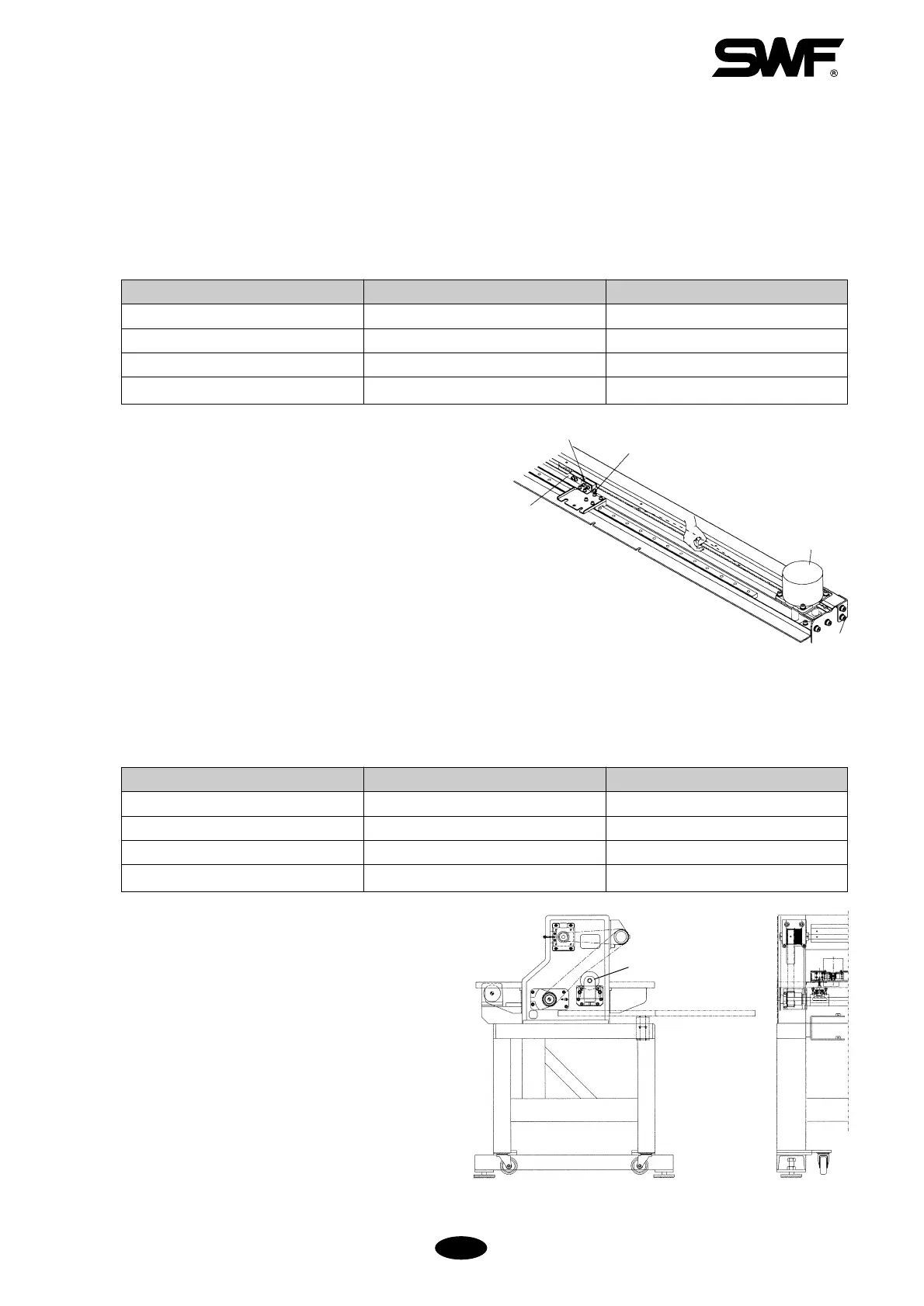

11-12-2) X-Axis Timing Belt
① Push the frame plate fully to the right ([Fig.11-22]). Check the drive belt tension on X-axis using the sound
wave tension gauge.
② Tension on the X-axis timing belt should measure as below on the sound wave measurer when you pluck the
middle of the belt with your finger.
③ Input data for the sound wave tension measurer:
11-12-3) Timing Belt on Main Shaft Motor
① Tension on the timing belt of the main shaft motor should measure as below on the sound wave measurer when
you pluck the middle of the belt with your finger.
② Input data for the sound wave tension measurer:
④ Unscrew LM block plate. Turn the tension bolts to
adjust the tension. Turn clockwise to increase and
counterclockwise to decrease the tension.
[Fig.11-24]
[Fig.11-23]
Weight
Type
004.0 gf/m 004.0 gf/m
015.0 mm/#R 015.0 mm/#R
0590 mm 0590 mm
18 Kgf 19 Kgf
Wide
Span
Tension measurement
4-head 6-head & 8-head
LM block
plate screw
Tension bolt
LM block plate
X-drive motor
Idler
Weight
Type
004.0 gf/m 004.0 gf/m
020.0 mm/#R 030.0 mm/#R
0405 mm 0405 mm
18 Kgf 18 Kgf
Wide
Span
tension measurement
4-head 6-head & 8-head
③ Unscrew the idler and adjust it right and left
to get the right tension. Turn the idler left to
increase the tension and right to decrease the
tension.
