5-12

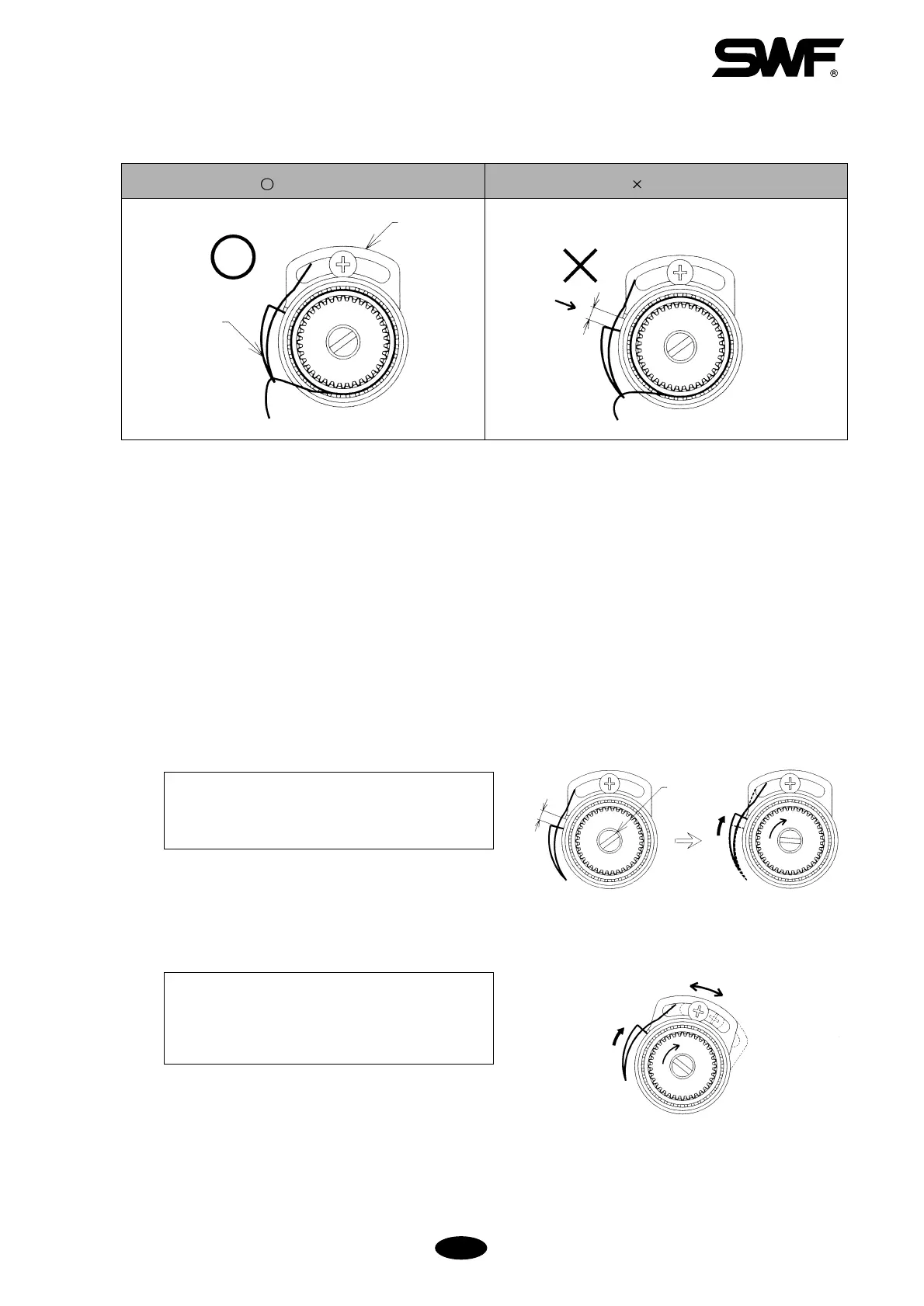

3) Take-Up Spring
[CAUTION 2]
After adjusting the operating capacity of the
take-up spring, check if the spring connects
with the stopper.
① Take-up Spring Functions
Difference in the length of the upper thread pulled by the take-up lever and pulled by the hook creates tension
or looping. When the tension is too weak, the take-up spring handles the leftover length of the upper thread.
Increase the tension or the stroke of the spring to form tight stitches on the embroidery.
② Take-up Spring Adjustment
ⓐ If the spring tension is too weak:
Turn the tension adjusting stud clockwise to
increase the tension.
ⓑ If the spring tension is too tight:
Turn the tension adjusting stud counter-clockwise to
decrease the tension.
③ Adjusting stroke of the take-up spring:
To adjust the stroke of the spring during embroidery
work, move the take-up spring stopper to right or
left as shown in [Fig.5-16].
Stopper
Thread
tension
adjusting
stud
CORRECT
WRONG
Take-up spring
[Fig.5-16]
[Fig.5-15]
Take-up spring unable to connect with the stopper
(due to dust or foreign substances in the stopper.)
Connect between the take-up spring and the stopper.
[CAUTION 1]
Keep the area clean for connection between
the spring and the stopper.
To Next Page
