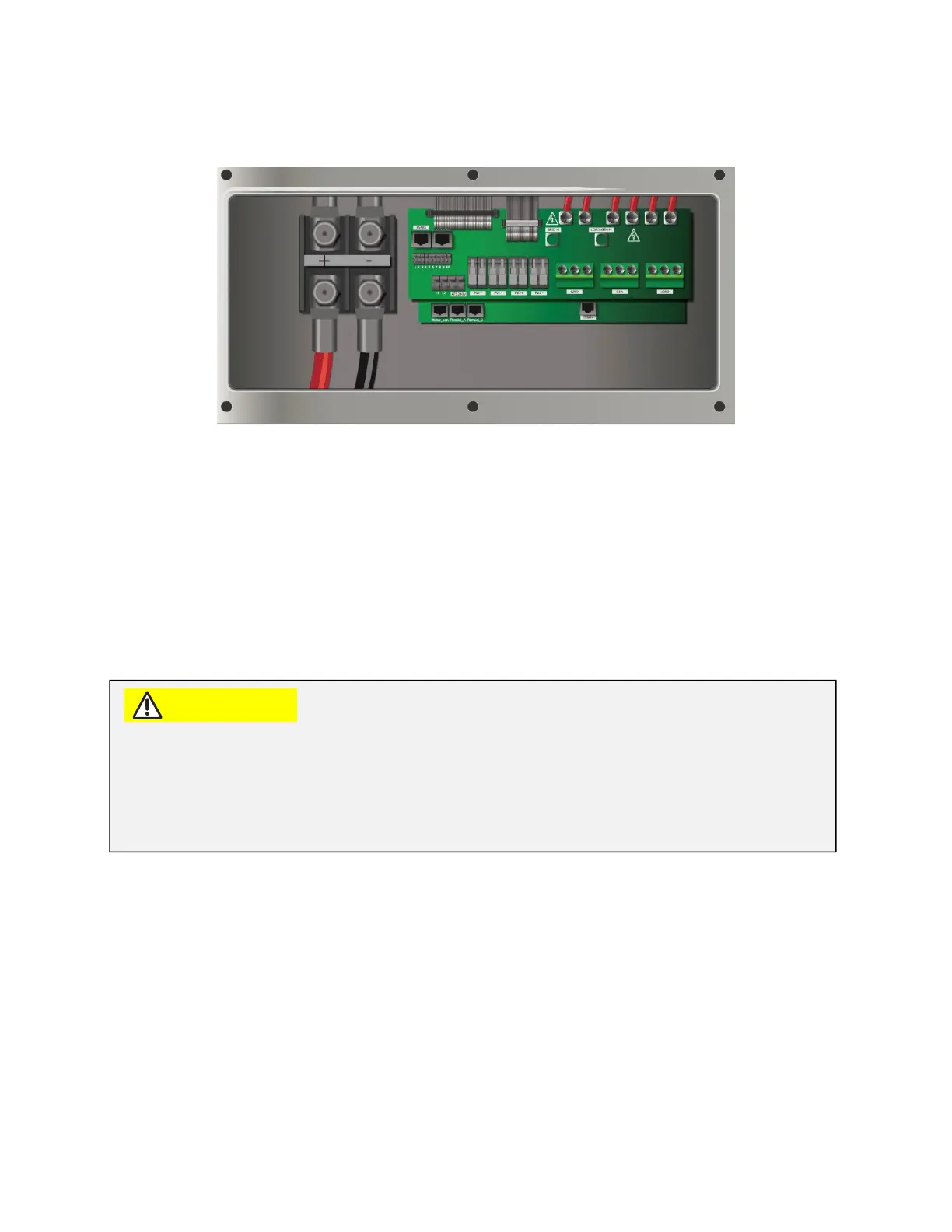

Battery connection of the 8kW model
For safe operation and compliance, an individual DC overcurrent protector or
disconnection device is required for the connection of the battery and the inverter. Users
are recommended to utilise a suitable fuse and DC isolator (see next page). In some
applications, switching devices may not be required, but overcurrent protectors must be
used. Please refer to the typical amperage in the table below for the required fuse or circuit
breaker size.
A minimum battery cable size of 35mm diameter and 50mm diameter is
recommended for the 5.5 kW and 8.8kW inverter, respectively.
All wiring/connecting must be performed by qualified personnel.
Before making the final DC connection or closing the DC Breaker/disconnection
device, ensure the inverter unit is wired correctly. A reverse-polarity connection on the
battery will damage the inverter.
